Key Specs


2269
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Lovely details grace the functional layout inside this eye-catching gabled home. The large, hearth-warmed great room opens to the island kitchen and breakfast nook--from here, step out to the rear covered porch, or into the handy hallway housing the laundry room, powder bathroom, and storage leading to the garage. On the opposite side of the home, a tray ceiling crowns the master suite, which also enjoys a corner tub and walk-in closet. Two additional family bedrooms share a hall bath.

Floor Plans

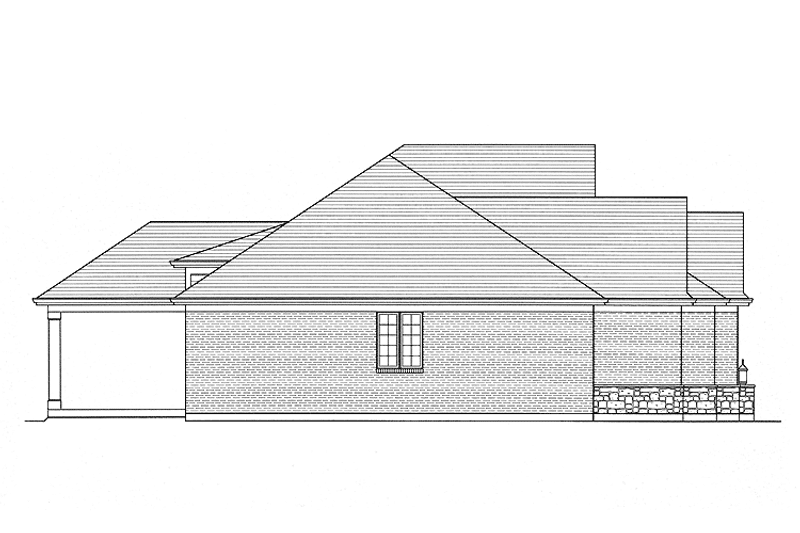

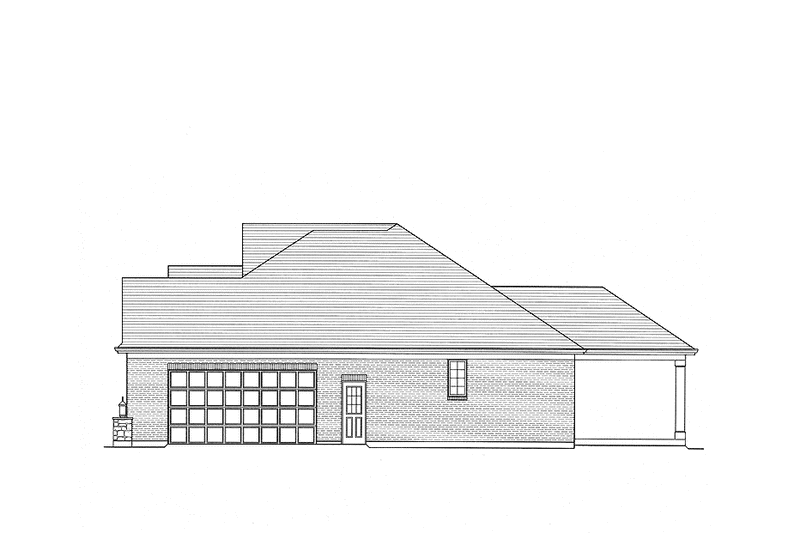

Floor Plan - Other Floor Plan
Country Floor Plan - Other Floor Plan Plan #46-829

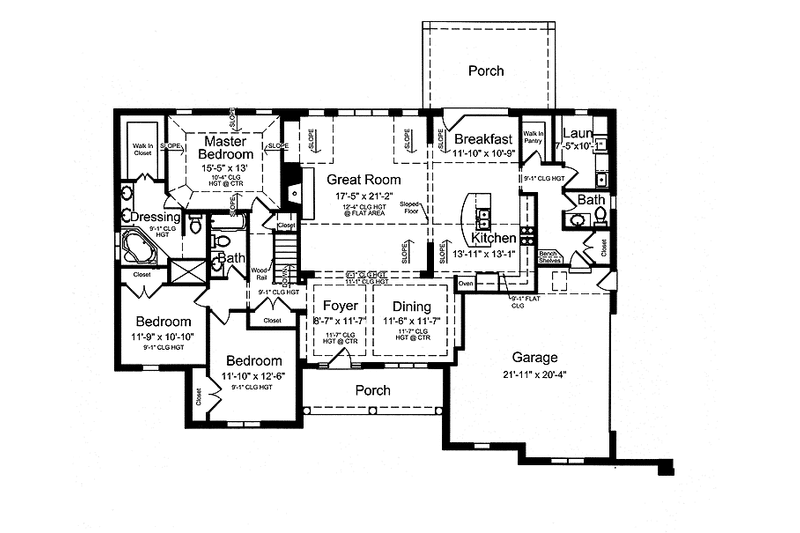

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #46-829

Full Specs & Features


Dimension
Depth : 60' 1"
Height : 24' 1"
Width : 68'
Area
Basement Unfinished: 2269 sq/ft
First Floor: 2269 sq/ft
Garage: 488 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Secondary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

127 sq/ft width 11' 9" x depth 10' 10"

Bedroom 3:

147 sq/ft width 11' 10" x depth 12' 6"

Breakfast:

127 sq/ft width 11' 10" x depth 10' 9"

Dining Room:

133 sq/ft width 11' 6" x depth 11' 7"

Foyer:

99 sq/ft width 8' 7" x depth 11' 7"

Garage:

445 sq/ft width 21' 11" x depth 20' 4"

Great Room:

368 sq/ft width 17' 5" x depth 21' 2"

Kitchen:

182 sq/ft width 13' 11" x depth 13' 1"

Laundry Room:

74 sq/ft width 7' 5" x depth 10' 1"

Master Bedroom:

200 sq/ft width 15' 5" x depth 13'

What's Included In This Plan Set


  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section show typical framing detail of house.
