Full Specs & Features
Depth : 59'
Height : 27'
Width : 77' 6"
Bonus: 311 sq/ft
First Floor: 1990 sq/ft
Garage: 665 sq/ft
Second Floor: 684 sq/ft
Main Ceiling : 9'
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 30
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Play Flex Room
Front Entry Garage
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
Wrap Around Porch
Structural Information Provided
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
177 sq/ft width 13' 4" x depth 13' 4"
134 sq/ft width 11' 2" x depth 12'
Bonus Room - Finished:
195 sq/ft width 14' 2" x depth 13' 10"
112 sq/ft width 10' 6" x depth 10' 8"
1350 sq/ft width 112' 6" x depth 12'
84 sq/ft width 7' x depth 12'
536 sq/ft width 23' 2" x depth 23' 2"
322 sq/ft width 21' 6" x depth 15'
81 sq/ft width 18' x depth 4' 6"
96 sq/ft width 8' x depth 12'
196 sq/ft width 14' x depth 14'
80 sq/ft width 10' 4" x depth 7' 9"
206 sq/ft width 15' 8" x depth 13' 2"
116 sq/ft width 8' x depth 14' 6"
250 sq/ft width 14' 2" x depth 17' 8"
35 sq/ft width 7' x depth 5'
What's Included In This Plan Set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

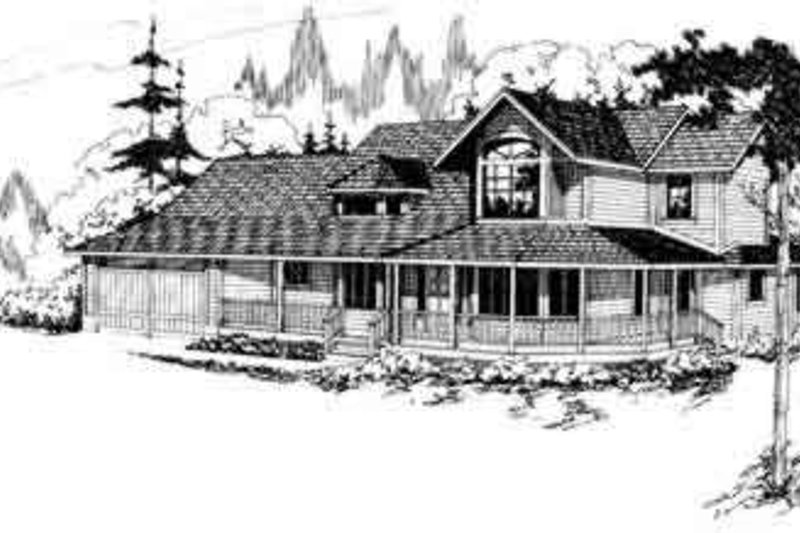

- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
