Full Specs & Features
Height : 26' 10"
Width : 72' 8"
First Floor: 2336 sq/ft height 9'
Garage: 656 sq/ft
Main Ceiling : 9'
Roof Framing : stick
Roof Load : 30 lbs psf
Roof Type : gable
Secondary Pitch : 4:12
Framing : 2"x4"
Walk In Closet
Eating Bar
Kitchen Island
Play Flex Room
Storage Area
Unfinished Future Space
Side Entry Garage
Covered Rear Porch
Bedroom 2:
138 sq/ft width 12' x depth 11' 6"
Bedroom 3:
138 sq/ft width 12' x depth 11' 6"
Bedroom 4:
143 sq/ft width 12' 6" x depth 11' 6"
Bonus Room - Unfinished:
704 sq/ft width 31' 4" x depth 22' 6"
Breakfast:
140 sq/ft width 14' 6" x depth 9' 8"
Dining Room:
138 sq/ft width 12' x depth 11' 6"
Garage:
592 sq/ft width 24' 8" x depth 24'
Great Room:
307 sq/ft width 16' 2" x depth 19'
Kitchen:
232 sq/ft width 14' 6" x depth 16'
Laundry Room:
84 sq/ft width 12' x depth 7'
Master Bathroom:
127 sq/ft width 9' 4" x depth 13' 8"
Master Bedroom:
224 sq/ft width 16' x depth 14'
Master Closet:
86 sq/ft width 6' 4" x depth 13' 8"
Porch - Front:
264 sq/ft width 44' x depth 6'
Porch - Rear:
310 sq/ft width 31' x depth 10'

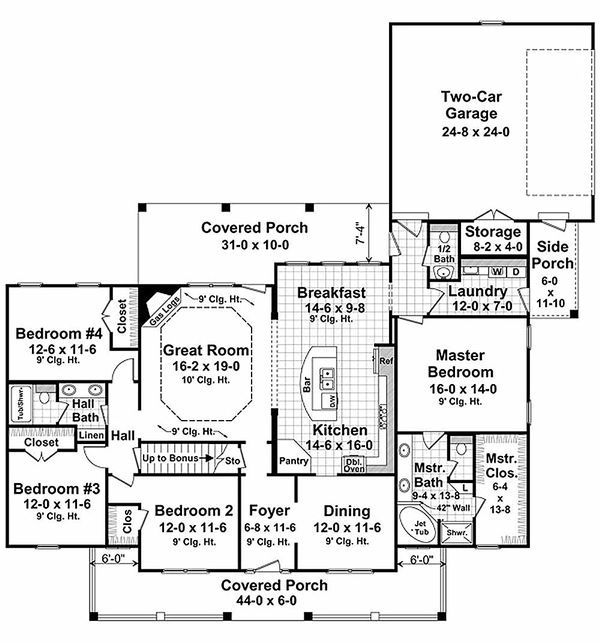

Floor Plan - Main Floor

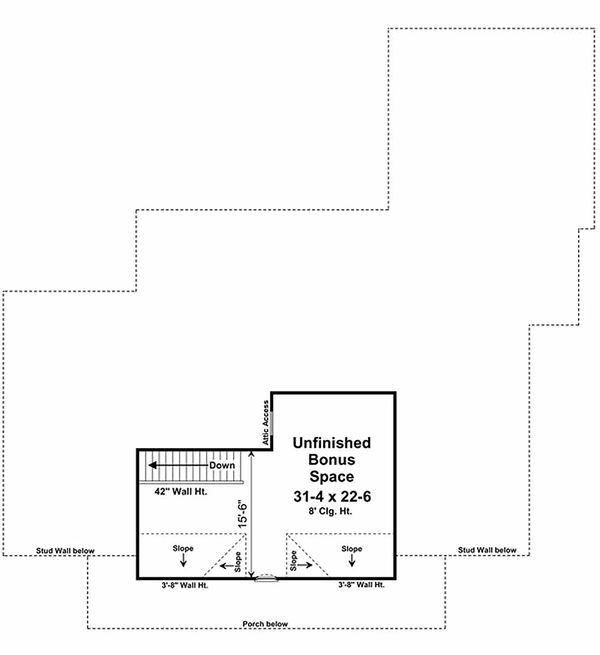

Floor Plan - Other Floor
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see /help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
