View plan at https://www.dreamhomesource.com/plan/2607-square-feet-4-bedroom-2-50-bathroom-2-garage-sp104909
Full Specs & Features
Height : 28' 10"
Width : 58'
Garage: 522 sq/ft
Second Floor: 800 sq/ft height 8'
Upper Ceiling Ft : 8'
Secondary Pitch : 12:12
Framing : 2x4
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Main Floor Laundry
Play Flex Room
Covered Rear Porch
Bedroom 2:
width 13' 3" x depth 14' 3"
Bedroom 3:
width 12' 6" x depth 13'
Bedroom 4:
width 12' 6" x depth 10' 9"
Breakfast:
width 13' x depth 11'
Flex:
width 13' x depth 16' 6"
Foyer:
width 6' x depth 9' 4"
Foyer:
width 6' x depth 9' 4"
Garage:
522 sq/ft width 21' x depth 24'
Great Room:
width 17' x depth 18' 3"
Kitchen:
width 12' x depth 13'
Laundry:
width 7' 11" x depth 8'
Laundry:
width 7' 11" x depth 8'
Master Bath:
width 14' 4" x depth 12' 10"
Master Bath:
width 14' 4" x depth 12' 10"
Master Bedroom:
width 16' x depth 17'
Master Closet:
width 14' 4" x depth 6' 2"
Master Closet:
width 14' 4" x depth 6' 2"

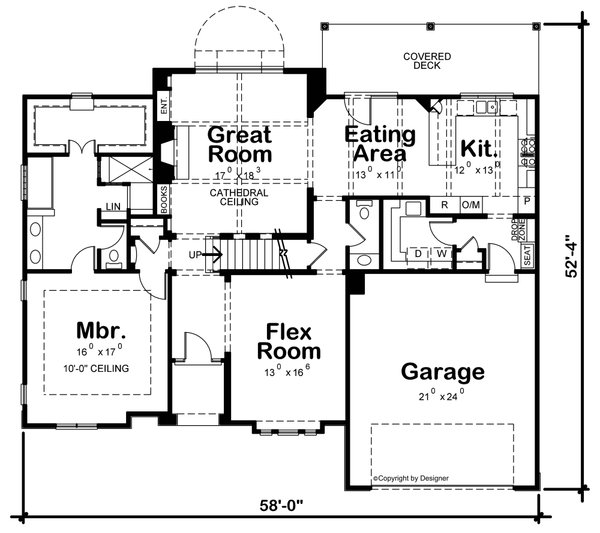

Floor Plan - Main Floor Plan

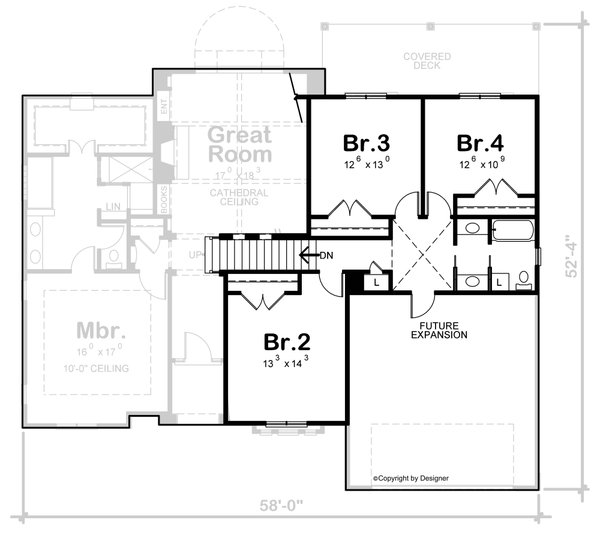

Floor Plan - Upper Floor Plan
Floor Plan - Other Floor Plan
View this plan at https://www.dreamhomesource.com/plan/2607-square-feet-4-bedroom-2-50-bathroom-2-garage-sp104909
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see https://www.dreamhomesource.com/help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
