Full Specs & Features
Height : 30' 8"
Width : 66' 7"
Second Floor: 836 sq/ft
Roof Framing : Truss
Roof Type : Asphalt
Framing : Wood - 2x6
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Mud Room
Open Floor Plan
Storage Area
Unfinished Future Space
Courtyard
Covered Front Porch
Deck
Grill Deck Sundeck
Outdoor Fireplace
Outdoor Kitchen Grill
Bedroom 2:
159 sq/ft width 14' 6" x depth 11'
Bedroom 3:
138 sq/ft width 12' x depth 11' 6"
Bedroom 4:
121 sq/ft width 11' x depth 11'
Bonus:
262 sq/ft width 13' 5" x depth 19' 6"
Breakfast Nook:
95 sq/ft width 10' 7" x depth 9'
Dining Room:
155 sq/ft width 13' 6" x depth 11' 6"
Entry:
92 sq/ft width 7' 4" x depth 12' 6"
Family Room:
210 sq/ft width 14' 6" x depth 14' 6"
Gallery:
172 sq/ft width 24' x depth 7' 2"
Garage:
426 sq/ft width 23' x depth 18' 6"
Garage 1 car:
222 sq/ft width 17' 9" x depth 12' 6"
Gathering Room:
81 sq/ft width 9' x depth 9'
Kitchen:
182 sq/ft width 13' x depth 14'
Laundry room:
40 sq/ft width 8' x depth 5'
Master bath:
88 sq/ft width 12' 6" x depth 7'
Master Bedroom:
155 sq/ft width 13' 6" x depth 11' 6"
Master Sitting:
80 sq/ft width 8' x depth 10'
Master Vanity:
47 sq/ft width 6' 8" x depth 7'
Master WIC:
42 sq/ft width 7' x depth 6'
Office:
132 sq/ft width 11' 6" x depth 11' 6"
Pantry:
36 sq/ft width 4' x depth 9'
Powder Room:
25 sq/ft width 3' 2" x depth 7' 9"

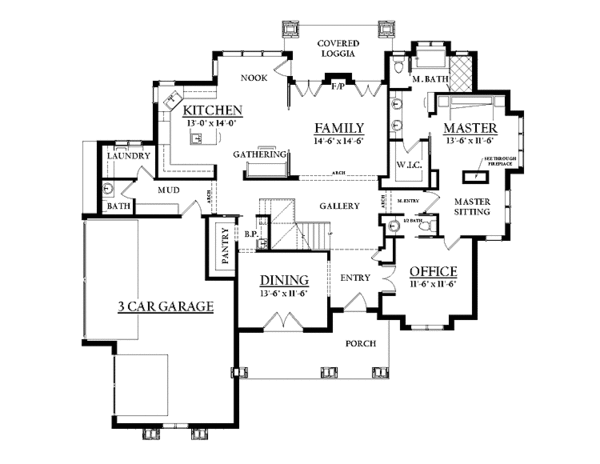

Floor Plan - Main Floor

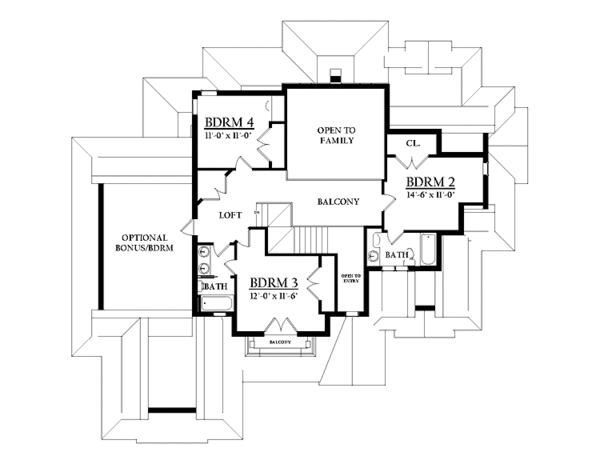

Floor Plan - Upper Floor
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see /help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
