Plan 70-1060
3003 sq/ft
4 beds
3.5 baths
81' 8" wide
54' 8" deep
Plan QR Code
Pricing
Plan Set
5 Copy Set
$1238.00
8 Copy Set
$1288.00
PDF Set
$1552.00
Reproducible Set
$1552.00
CAD Set
$2476.00
Foundation
Basement
+$0.00
Crawlspace
+$395.00
Slab
+$395.00
Right-Reading Reverse
Each
+$395.00
Additional Construction Sets
Each Additional Set
+$80.00/each
Audio Video Design
Each
$165.00
Comprehensive Material List
Each
$395.00
Construction Guide
Each
$39.00
Lighting Design
Each
$165.00
Mirror Reversed Sets
Each Additional Set
+$75.00

Full Specs & Features


Dimension
Depth : 54' 8"
Height : 29' 9"
Width : 81' 8"
Area
First Floor: 2040 sq/ft
Garage: 1133 sq/ft
Second Floor: 963 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Entry and Great Room 2-Story, Master Bedroom 10' StepBedroom #2 Cathedral
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : stucco, stone
Framing : 2 x 6
Insulation : 19
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Sunroom
Garage Features
Front Entry Garage
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Screened Porch
Rooms

Basement:

width 81' 8" x depth 54'

Bathroom 2:

width 11' 4" x depth 6'

Bathroom 3:

5 sq/ft width 4' 8" x depth 2'

Bedroom 2:

width 13' x depth 14'

Bedroom 2 Closet:

width 4' 5" x depth 4' 10"

Bedroom 3:

width 12' x depth 12' 8"

Bedroom 3 Closet:

width 54' x depth 5'

Bedroom 4:

width 12' x depth 12' 4"

Bedroom 4 Closet:

width 9' x depth 2' 1"

Deck:

width 14' x depth 6' 6"

Den:

width 13' x depth 13'

Dining:

width 12' x depth 11' 6"

Dressing Room:

width 14' 6" x depth 7' 7"

Foyer:

width 7' 8" x depth 11'

Garage:

1133 sq/ft width 23' 8" x depth 27' 4"

Great Room:

width 16' x depth 18'

Half Bath:

width 5' 8" x depth 5'

Hall:

width 21' 3" x depth 4'

Hall Closet:

width 2' 1" x depth 4'

Kitchen:

width 14' 6" x depth 13' 8"

Laundry:

width 11' x depth 11'

Master Bath:

width 14' 8" x depth 14' 6"

Master Bedroom:

width 14' x depth 16'

Master Walk In Closet:

width 13' x depth 8'

Pantry:

width 5' x depth 5'

Porch Front:

width 12' 8" x depth 10' 8"

Porch Rear:

width 19' 8" x depth 8'

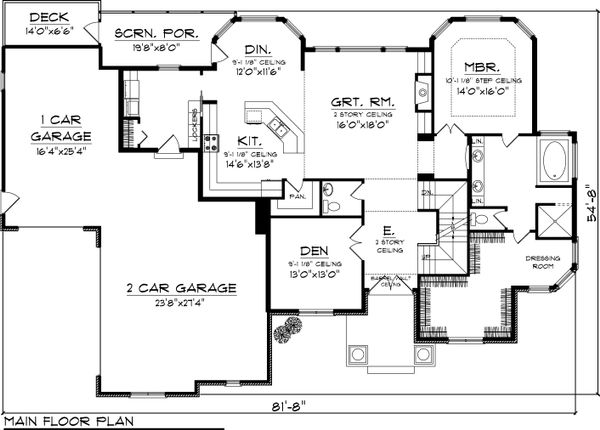

Floor Plan - Main Floor

Dream House Plan - Craftsman Floor Plan - Main Floor Plan #70-1060

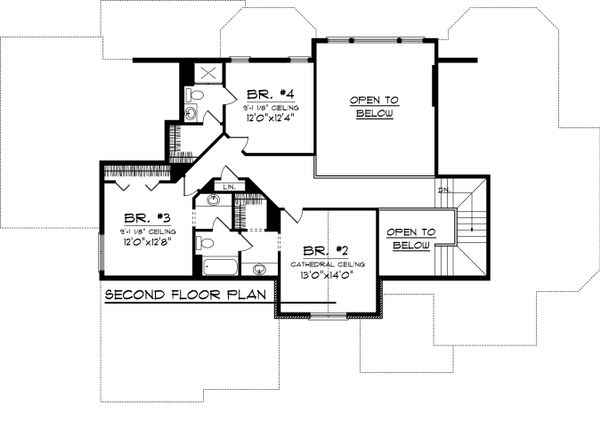

Floor Plan - Upper Floor

Dream House Plan - Craftsman Floor Plan - Upper Floor Plan #70-1060
