Full Specs & Features
Height : 37' 4"
Width : 49' 10"
First Floor: 1966 sq/ft
Second Floor: 2050 sq/ft
Upper Ceiling Ft : 9'
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Framing : 2"x4"
Split Bedrooms
Walk In Closet
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Hobby Rec Room Game Room
Master Sitting Area
Media Room
Storage Area
Unfinished Future Space
Tandem Garage
Suited For Narrow Lot
Covered Rear Porch
Bedroom 2:
153 sq/ft width 12' 10" x depth 12'
Bedroom 3:
153 sq/ft width 11' 10" x depth 13'
Bedroom 4:
147 sq/ft width 11' 2" x depth 13' 2"
Bedroom 5:
171 sq/ft width 11' 8" x depth 14' 8"
Bedroom 6:
158 sq/ft width 12' 10" x depth 12' 4"
Computer Room:
190 sq/ft width 12' 10" x depth 14' 10"
Dinette:
143 sq/ft width 13' x depth 11'
Dining Room:
160 sq/ft width 12' 6" x depth 12' 10"
Family Room:
422 sq/ft width 17' 10" x depth 23' 8"
Garage:
423 sq/ft width 21' x depth 20' 2"
Garage Two:
210 sq/ft width 11' 2" x depth 18' 10"
Kitchen:
225 sq/ft width 13' 6" x depth 16' 8"
Master Suite:
252 sq/ft width 16' 10" x depth 15'
Porch - Rear:
144 sq/ft width 13' 2" x depth 11'

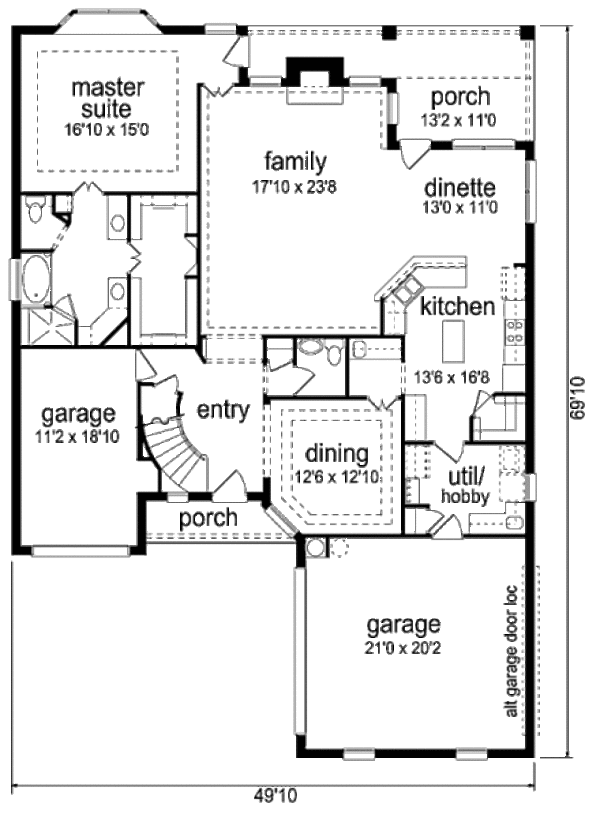

Floor Plan - Main Floor

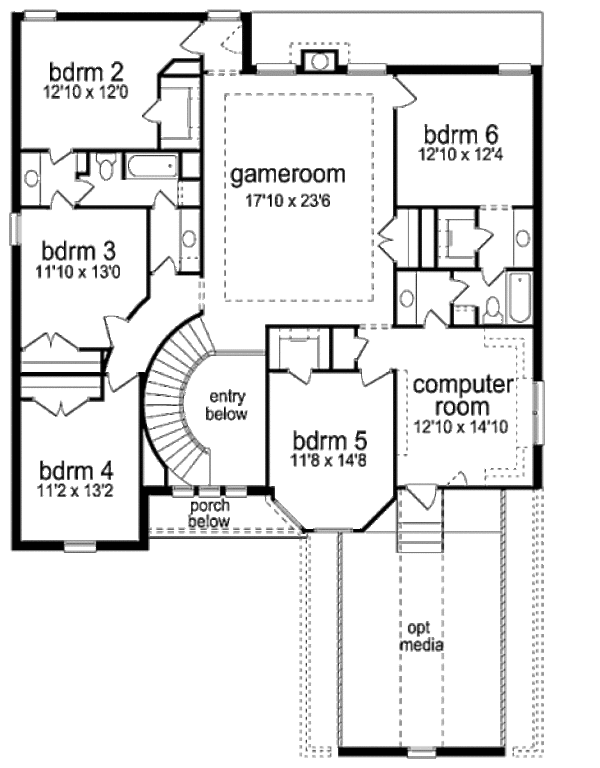

Floor Plan - Upper Floor
View this plan at https://www.dreamhomesource.com/plan/4016-square-feet-6-bedroom-3-50-bathroom-3-garage-sp103013
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see https://www.dreamhomesource.com/help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
