Full Specs & Features
Height : 37'
Width : 100' 8"
Second Floor: 1338 sq/ft
Roof Framing : Truss
Roof Type : Shingle
Framing : 2"x6"
Walk In Closet
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Great Room Living Room
Hobby Rec Room Game Room
Loft
Master Sitting Area
Media Room
Storage Area
Sunroom
Unfinished Future Space
Side Entry Garage
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Screened Porch
3rd BR Closet:
40 sq/ft width 5' x depth 8'
Bathroom 2:
35 sq/ft width 5' x depth 7'
Bathroom 3:
41 sq/ft width 5' x depth 8' 4"
Bathroom 4:
35 sq/ft width 5' 8" x depth 6' 4"
Bedroom 2:
180 sq/ft width 15' x depth 12'
Bedroom 2 Closet:
23 sq/ft width 5' x depth 4' 8"
Bedroom 3:
205 sq/ft width 14' 8" x depth 14'
Bedroom 3 Closet:
23 sq/ft width 5' x depth 4' 8"
Bedroom 4:
183 sq/ft width 12' x depth 15' 4"
Bedroom 4 Closet:
26 sq/ft width 5' 8" x depth 4' 8"
Breakfast Room:
150 sq/ft width 17' 4" x depth 8' 8"
Dining Room:
166 sq/ft width 11' 4" x depth 14' 8"
Garage:
624 sq/ft width 25' 4" x depth 24' 8"
Garage Two:
683 sq/ft width 27' x depth 25' 4"
Gathering Room:
283 sq/ft width 16' 8" x depth 17'
Kitchen:
276 sq/ft width 15' 8" x depth 17' 8"
Master Bathroom:
73 sq/ft width 5' x depth 14' 8"
Master Bedroom:
295 sq/ft width 15' x depth 19' 8"
Master Closet:
40 sq/ft width 5' x depth 8'
Sun Room:
277 sq/ft width 16' x depth 17' 4"
Wood Deck:
241 sq/ft width 11' 4" x depth 21' 4"

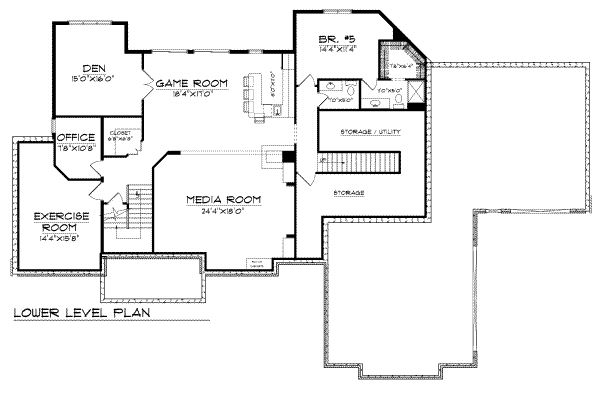

Floor Plan - Lower Floor

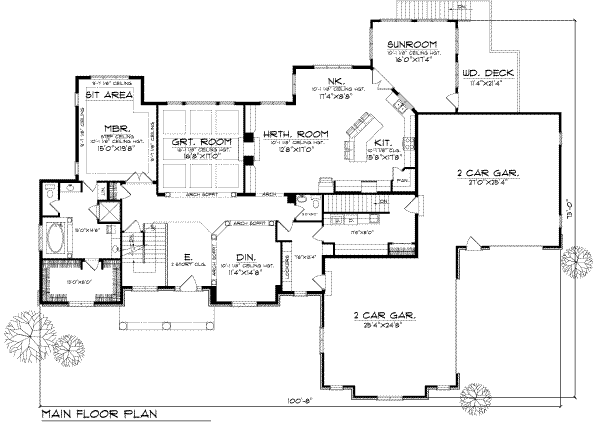

Floor Plan - Main Floor

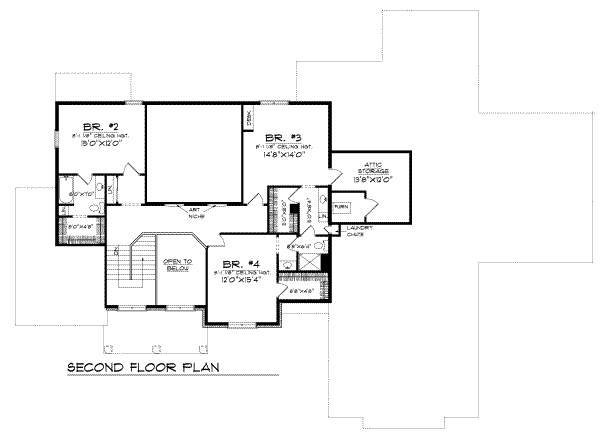

Floor Plan - Upper Floor
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see /help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
