Full Specs & Features
Height : 32'
Width : 81'
First Floor: 2792 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : 2"x6"
Walk In Closet
Butler's Pantry
Kitchen Island
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Oversized Garage
Bedroom 2:
215 sq/ft width 14' 8" x depth 14' 8"
Bedroom 3:
224 sq/ft width 14' 8" x depth 15' 4"
Bedroom 4:
222 sq/ft width 13' 6" x depth 16' 6"
Den/Office or Bedroom 1:
146 sq/ft width 12' x depth 12' 2"
Dining Room:
220 sq/ft width 13' 8" x depth 16' 2"
Foyer:
312 sq/ft width 13' x depth 24'
Game Room:
426 sq/ft width 20' x depth 21' 4"
Garage:
440 sq/ft width 20' 6" x depth 21' 6"
Garage Two:
258 sq/ft width 12' x depth 21' 6"
Gathering Room:
462 sq/ft width 21' x depth 22'
Kitchen:
281 sq/ft width 18' 2" x depth 15' 6"
Master Bathroom:
272 sq/ft width 16' 6" x depth 16' 6"
Master Bedroom:
388 sq/ft width 17' x depth 22' 10"
Master Closet:
143 sq/ft width 11' x depth 13'
Pantry:
50 sq/ft width 5' x depth 10'
Utility Room:
76 sq/ft width 8' x depth 9' 6"

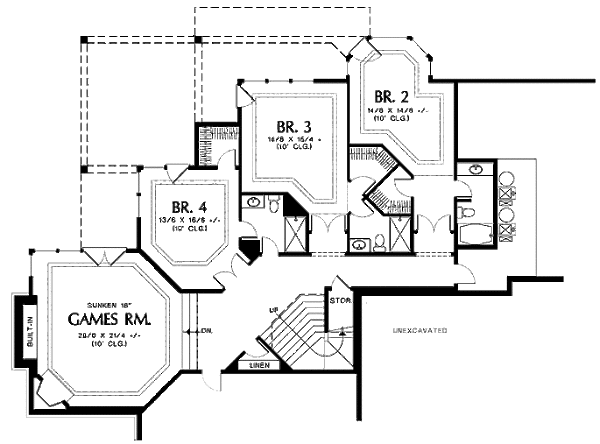

Floor Plan - Lower Floor

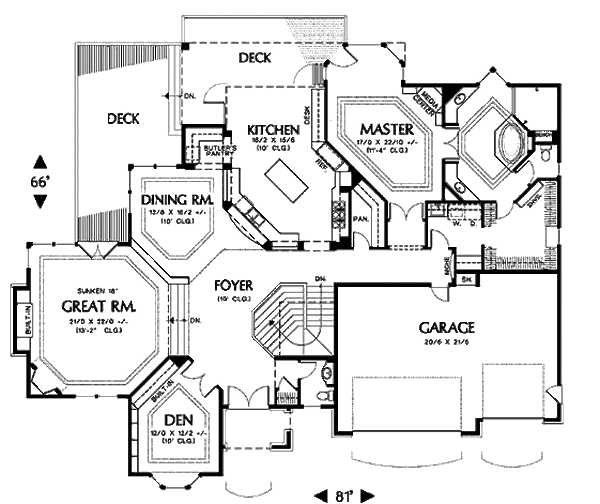

Floor Plan - Main Floor
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see /help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
