Full Specs & Features
Height : 36' 9"
Width : 106'
First Floor: 3098 sq/ft
Garage: 877 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Sunroom
Vaulted / Cathedral Ceilings
Covered Rear Porch
Deck
Screened Porch
Balcony:
37 sq/ft width 5' 2" x depth 7' 4"
Bathroom 2:
108 sq/ft width 18' x depth 6'
Bathroom 3:
45 sq/ft width 9' 2" x depth 5'
Bathroom 4:
106 sq/ft width 13' 10" x depth 7' 8"
Bedroom 2:
168 sq/ft width 12' x depth 14'
Bedroom 2 Closet:
16 sq/ft width 8' x depth 2'
Bedroom 3:
168 sq/ft width 12' x depth 14'
Bedroom 3 Closet:
16 sq/ft width 8' x depth 2'
Bedroom 4:
199 sq/ft width 13' 4" x depth 15'
Bedroom 4 Closet:
11 sq/ft width 5' 6" x depth 2'
Bedroom 5:
323 sq/ft width 21' 7" x depth 15'
Coat Closet:
31 sq/ft width 5' 8" x depth 5' 6"
Deck:
258 sq/ft width 15' 6" x depth 16' 8"
Dining Room:
206 sq/ft width 15' 8" x depth 13' 2"
Foyer:
119 sq/ft width 21' 8" x depth 5' 6"
Game Room:
520 sq/ft width 21' 8" x depth 24'
Garage:
841 sq/ft width 23' 7" x depth 35' 8"
Gathering Room:
523 sq/ft width 21' 8" x depth 24' 2"
Hall Closet:
7 sq/ft width 2' x depth 3' 10"
Kitchen:
242 sq/ft width 15' 6" x depth 15' 8"
Linen Closet:
10 sq/ft width 3' 2" x depth 3' 2"
Master Bathroom:
181 sq/ft width 18' 7" x depth 9' 9"
Master Bedroom:
225 sq/ft width 15' x depth 15'
Master Closet:
189 sq/ft width 10' 4" x depth 18' 4"
Pantry:
8 sq/ft width 4' x depth 2'
Patio:
192 sq/ft width 24' 1" x depth 8'
Porch - Front:
36 sq/ft width 3' x depth 12' 2"
Porch - Left:
84 sq/ft width 10' 6" x depth 8'
Porch - Rear:
158 sq/ft width 19' x depth 8' 4"
Porch - Right:
84 sq/ft width 10' 6" x depth 8'
Porch - Screened:
258 sq/ft width 15' 6" x depth 16' 8"
Powder Room:
28 sq/ft width 5' 10" x depth 4' 11"
Storage:
506 sq/ft width 23' x depth 22'
Storage Closet:
193 sq/ft width 9' 6" x depth 20' 4"
Utility Room:
127 sq/ft width 10' 6" x depth 12' 2"
Wet Bar:
81 sq/ft width 6' 4" x depth 12' 10"

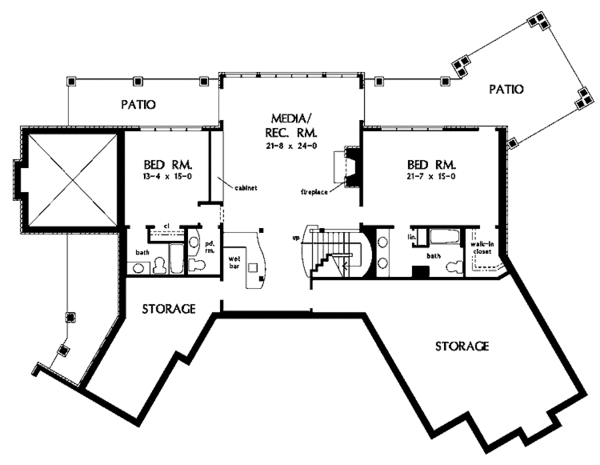

Floor Plan - Lower Floor

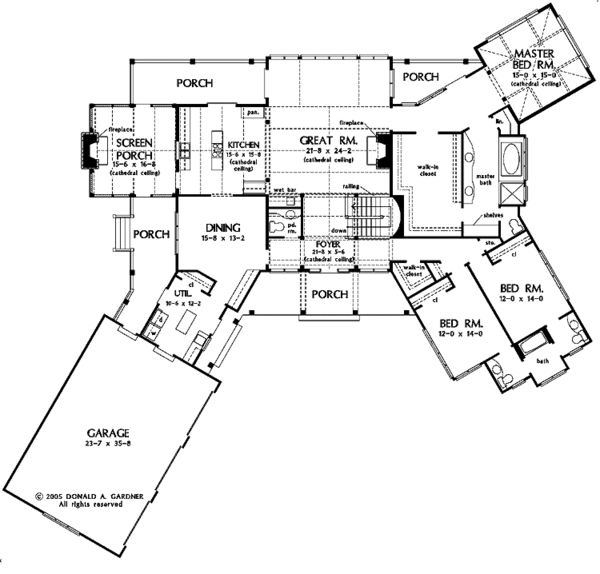

Floor Plan - Main Floor
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see /help/faq#faq13.
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
