Plan 54-340
6922 sq/ft
5 beds
3.5 baths
114' wide
87' 6" deep
Plan QR Code
Pricing
Plan Set
PDF Set
$3461.00
CAD Set
$4711.00
CAD and PDF Set
$4806.00
Foundation
Basement
+$0.00
Crawlspace
+$350.00
Slab
+$350.00
Framing
Wood 2x4
$0.00
Wood 2x6
$350.00
Right-Reading Reverse
Each
+$250.00
Audio Video Design
Each
$165.00
Comprehensive Material List
Each
$495.00
Construction Guide
Each
$39.00
Lighting Design
Each
$165.00

Full Specs & Features


Dimension
Depth : 87' 6"
Height : 36' 11"
Width : 114'
Area
First Floor: 3855 sq/ft
Garage: 890 sq/ft
Second Floor: 3067 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Framing : Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
More
Wheelchair Adaptable
Rooms

Bedroom 2:

313 sq/ft width 17' 11" x depth 17' 6"

Bedroom 3:

287 sq/ft width 17' 5" x depth 16' 6"

Bedroom 4:

391 sq/ft width 19' 1" x depth 20' 6"

Bedroom 5:

224 sq/ft width 14' x depth 16'

Breakfast:

209 sq/ft width 16' 1" x depth 13'

Gallery:

225 sq/ft width 21' 8" x depth 10' 5"

Garage:

585 sq/ft width 28' 8" x depth 20' 5"

Garage Two:

291 sq/ft width 25' 11" x depth 11' 3"

Grand Salon:

413 sq/ft width 20' 8" x depth 20'

Home Office:

259 sq/ft width 13' 7" x depth 19' 1"

Keeping Room:

135 sq/ft width 16' 1" x depth 8' 5"

Master Suite:

282 sq/ft width 15' 9" x depth 17' 11"

Media Room:

176 sq/ft width 16' 11" x depth 10' 5"

Play Room:

161 sq/ft width 14' 4" x depth 11' 3"

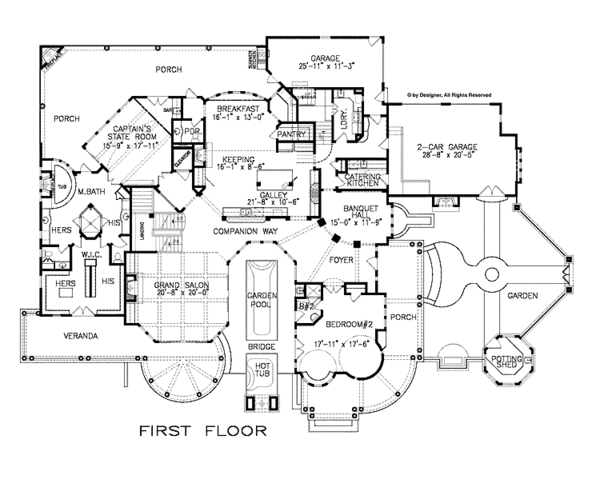

Floor Plan - Main Floor

Dream House Plan - Craftsman Floor Plan - Main Floor Plan #54-340

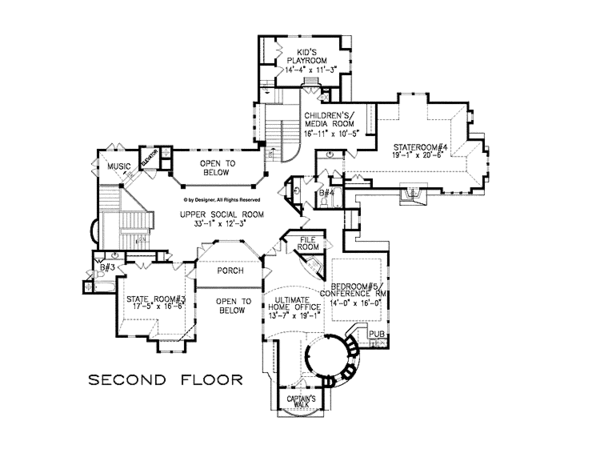

Floor Plan - Upper Floor

Dream House Plan - Craftsman Floor Plan - Upper Floor Plan #54-340
Dreamhomesource.com
Questions about this plan? Visit Dreamhomesource.com today or call 1-800-447-0027
View this plan at /plan/6922-square-feet-5-bedroom-3-50-bathroom-4-garage-sp112983

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see /help/faq#faq13.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
