Plan 51-690
7514 sq/ft
5 beds
4 baths
95' wide
68' deep
Plan QR Code
Pricing
Plan Set
5 Copy Set
$1892.00
8 Copy Set
$2156.00
PDF Set
$2200.00
CAD Set
$2860.00
Foundation
Daylight Basement
+$0.00
Framing
Wood 2x6
$0.00
Wood 2x4
$250.00
Right-Reading Reverse
Each
+$250.00
Additional Construction Sets
Each Additional Set
+$60.00/each
Audio Video Design
Each
$165.00
Construction Guide
Each
$39.00
Lighting Design
Each
$165.00
Mirror Reversed Sets
Each Additional Set
+$50.00

Full Specs & Features


Dimension
Depth : 68'
Height : 24' 6"
Width : 95'
Area
Basement Living: 3214 sq/ft height 9'
Basement Unfinished: 262 sq/ft
Bonus: 824 sq/ft
First Floor: 3476 sq/ft height 10'
Garage: 798 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Mud Room
Sunroom
Unfinished Future Space
Wine Cellar
Workshop
Outdoor Spaces
Covered Front Porch
Deck
Screened Porch
Rooms

Bedroom 2:

267 sq/ft width 14' 4" x depth 18' 8"

Bedroom 3:

238 sq/ft width 14' x depth 17'

Bedroom 3 Closet:

50 sq/ft width 5' x depth 10'

Bedroom 4:

224 sq/ft width 16' x depth 14'

Bedroom 4 Closet:

51 sq/ft width 5' 8" x depth 9'

Bedroom 5:

288 sq/ft width 18' x depth 16'

Billiards Room:

350 sq/ft width 14' x depth 25'

Bonus Room - Finished:

324 sq/ft width 18' x depth 18'

Deck:

336 sq/ft width 24' x depth 14'

Dining Room:

360 sq/ft width 23' x depth 15' 8"

Exercise Room:

308 sq/ft width 21' x depth 14' 8"

Family Room:

399 sq/ft width 21' x depth 19'

Foyer:

154 sq/ft width 11' x depth 14'

Game Room:

222 sq/ft width 15' 4" x depth 14' 6"

Garage:

1080 sq/ft width 27' x depth 40'

Great Room:

378 sq/ft width 18' x depth 21'

Kitchen:

283 sq/ft width 23' x depth 12' 4"

Laundry Room:

115 sq/ft width 9' 4" x depth 12' 4"

Master Bedroom:

357 sq/ft width 21' x depth 17'

Master Walk-In Closet:

171 sq/ft width 14' 8" x depth 11' 8"

Mud Room:

170 sq/ft width 10' x depth 17'

Sitting Area:

156 sq/ft width 13' x depth 12'

Study:

257 sq/ft width 18' x depth 14' 4"

Sun Room:

224 sq/ft width 14' x depth 16'

Wet Bar:

144 sq/ft width 12' x depth 12'

Wine Cellar:

100 sq/ft width 10' x depth 10'

Floor Plan - Lower Floor

Dream House Plan - European Floor Plan - Lower Floor Plan #51-690

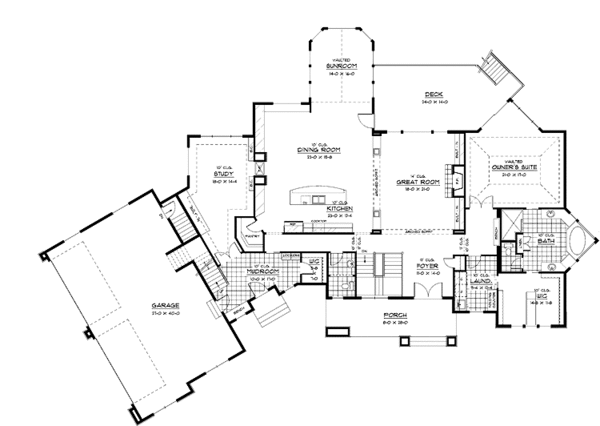

Floor Plan - Main Floor

Dream House Plan - European Floor Plan - Main Floor Plan #51-690

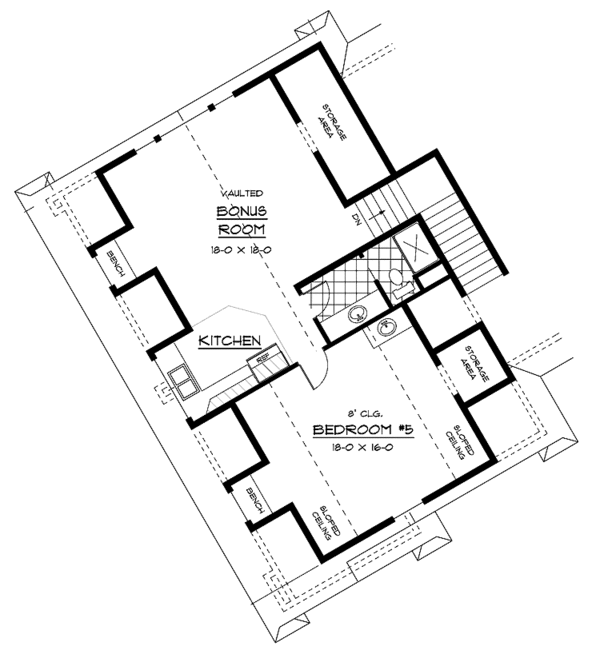

Floor Plan - Other Floor

Dream House Plan - European Floor Plan - Other Floor Plan #51-690
Dreamhomesource.com
Questions about this plan? Visit Dreamhomesource.com today or call 1-800-447-0027
View this plan at /plan/7514-square-feet-5-bedroom-4-00-bathroom-4-garage-sp119277

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see /help/faq#faq13.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
