PLAN 70-1045
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 62'
Height : 19' 6"
Width : 60'
Area
First Floor: 1617 sq/ft
Garage: 693 sq/ft
Ceiling
Ceiling Details : Master Bedroom has Cathedral ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding, Shake, Stone
Framing : 2 x 6
Insulation : 19
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Rooms
Basement:
width 60' x depth 61'
Bathroom 2:
width 9' 4" x depth 5'
Bedroom 2:
width 11' 4" x depth 11'
Bedroom 2 Closet:
width 2' 1" x depth 9' 10"
Deck:
width 12' x depth 20'
Dining Room:
width 11' 4" x depth 12' 4"
Foyer:
width 5' 10" x depth 6' 2"
Garage:
693 sq/ft width 30' 8" x depth 22' 4"
Great Room:
width 17' x depth 17'
Hall:
width 4' 10" x depth 22' 10"
Kitchen:
width 16' 6" x depth 13' 4"
Laundry:
width 9' x depth 6'
Master Bath:
width 5' 10" x depth 12' 2"
Master Bedroom:
width 13' 8" x depth 15'
Master Walk In Closet:
width 5' 4" x depth 12' 3"
Pantry:
width 4' 6" x depth 4' 6"
Porch Front:
width 14' 8" x depth 13' 4"
What's Included In This Plan Set
- Cover sheet with front rendering

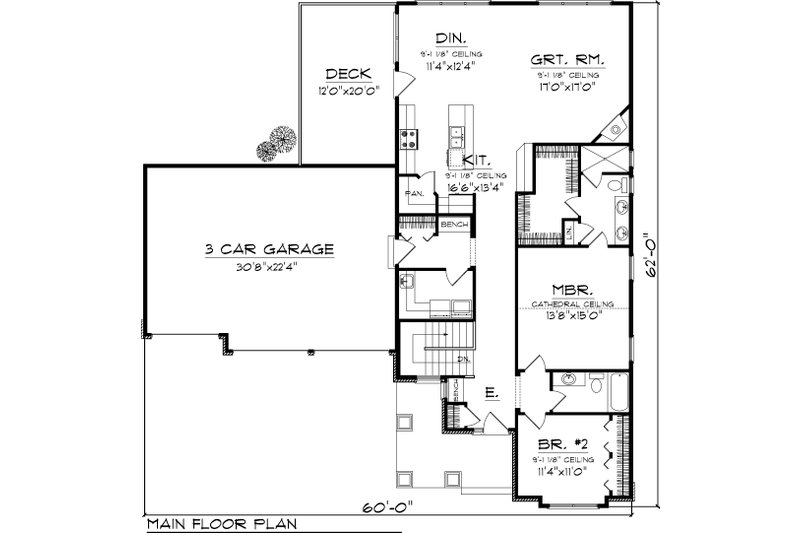

- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
