PLAN 513-2141
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 41'
Height : 25'
Width : 64'
Area
First Floor: 1133 sq/ft
Garage: 501 sq/ft
Porch: 275 sq/ft
Second Floor: 542 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Formal Living Room / Parlor
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Hobby Rec Room Game Room
Loft
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Bathroom 2:
42 sq/ft width 5' x depth 8' 6"
Bedroom 2:
138 sq/ft width 11' 6" x depth 12'
Bedroom 3:
126 sq/ft width 10' 6" x depth 12'
Dining Room:
132 sq/ft width 11' x depth 12'
Foyer:
16 sq/ft width 3' 8" x depth 4' 6"
Game Room:
108 sq/ft width 12' x depth 9'
Garage:
484 sq/ft width 22' x depth 22'
Half Bathroom:
18 sq/ft width 6' 2" x depth 3'
Kitchen:
120 sq/ft width 10' x depth 12'
Living Room:
272 sq/ft width 16' x depth 17'
Master Bathroom:
107 sq/ft width 8' 2" x depth 13' 2"
Master Bedroom:
224 sq/ft width 14' x depth 16'
Master Closet:
45 sq/ft width 5' 4" x depth 8' 6"
Utility Room:
43 sq/ft width 7' 8" x depth 5' 8"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

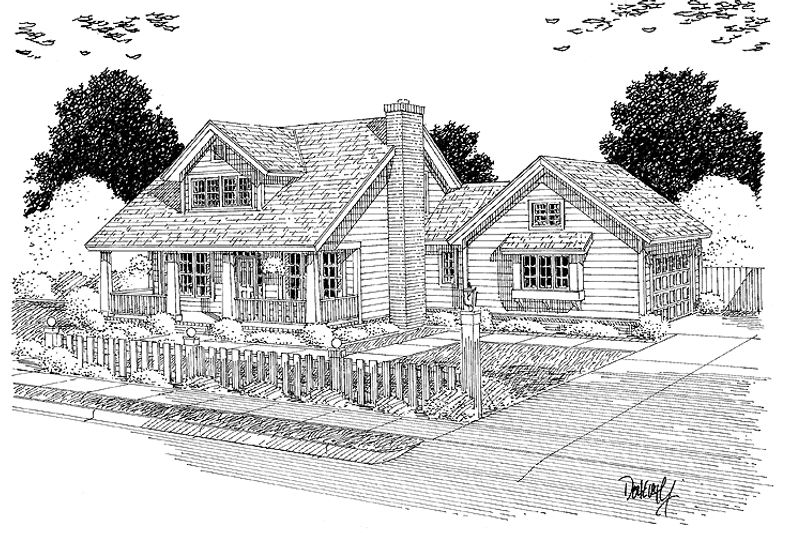

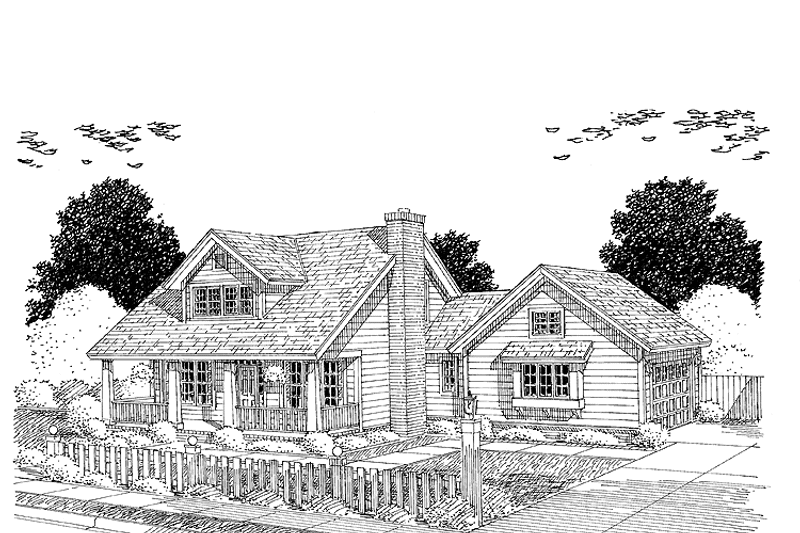

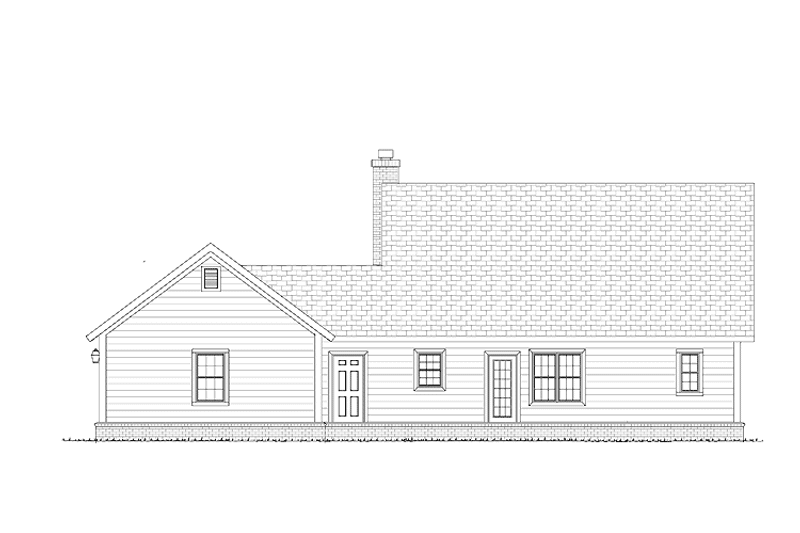

- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

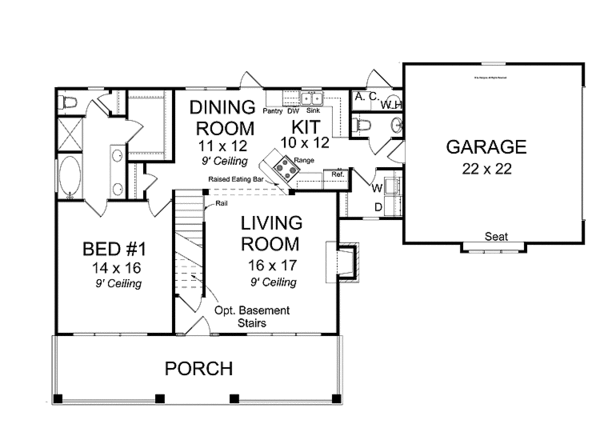

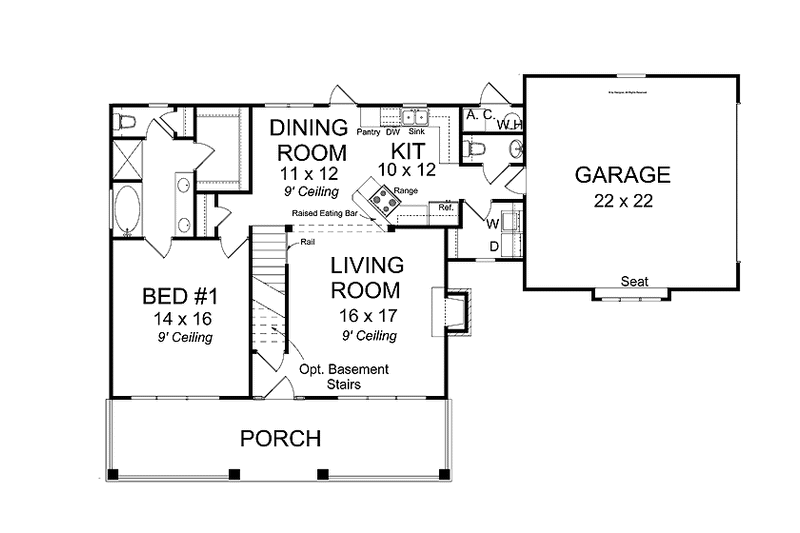

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

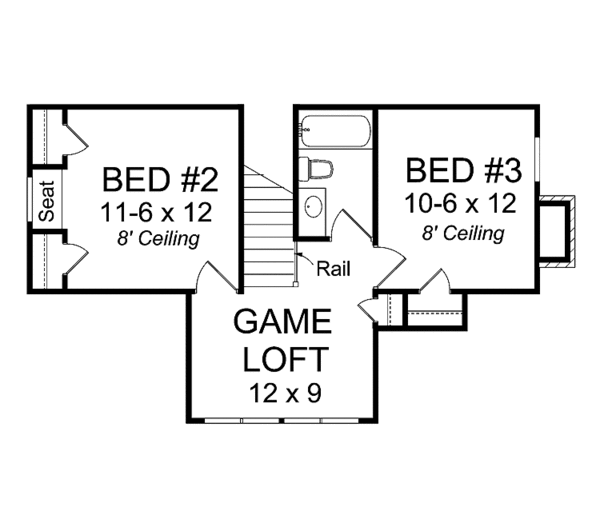

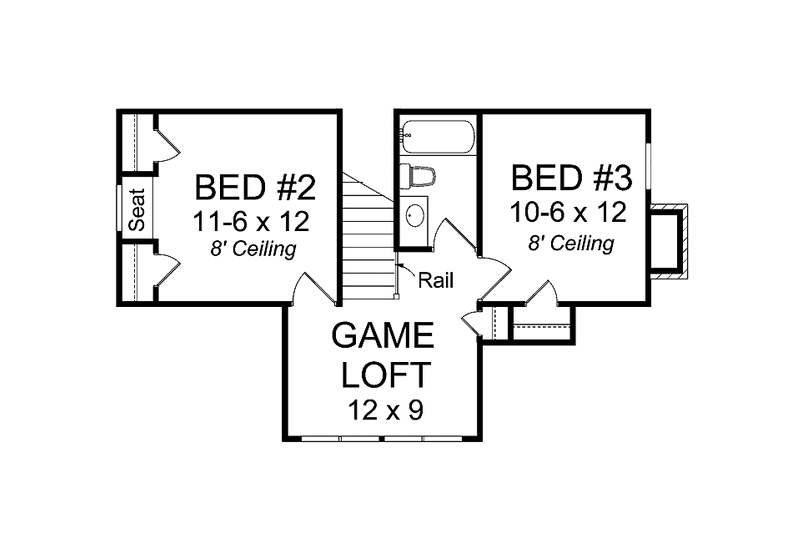

- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$837.25
$1088.00
Foundation
$0.00
$165.75
$165.75
Framing
$0.00
$165.75
Additional Options
$165.75
$140.25
$33.15
$140.25
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
