PLAN 40-410
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 58' 7"
Height : 24'
Width : 77' 8"
Area

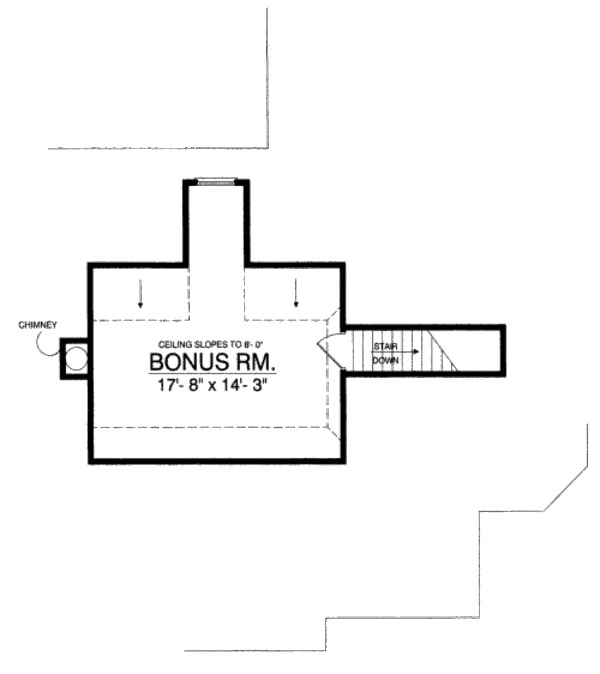

Bonus: 357 sq/ft height 8'
First Floor: 2327 sq/ft height 8'
Garage: 547 sq/ft height 8'
Porch: 172 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Master Sitting Area
Play Flex Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
156 sq/ft width 12' x depth 13'
Bedroom 3:
132 sq/ft width 12' x depth 11'
Bedroom 4:
132 sq/ft width 12' x depth 11'
Dining Room:
163 sq/ft width 11' x depth 14' 10"
Garage:
463 sq/ft width 21' 1" x depth 22'
Kitchen:
132 sq/ft width 12' x depth 11'
Living Room:
317 sq/ft width 19' 10" x depth 16'
Master Suite:
238 sq/ft width 14' x depth 17'
Nook:
97 sq/ft width 9' 9" x depth 10'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

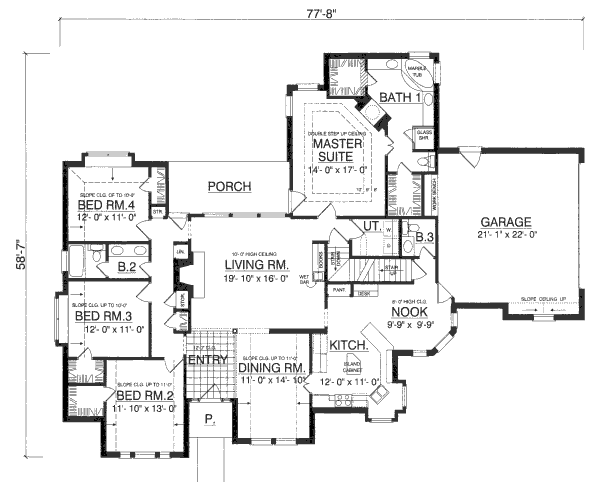

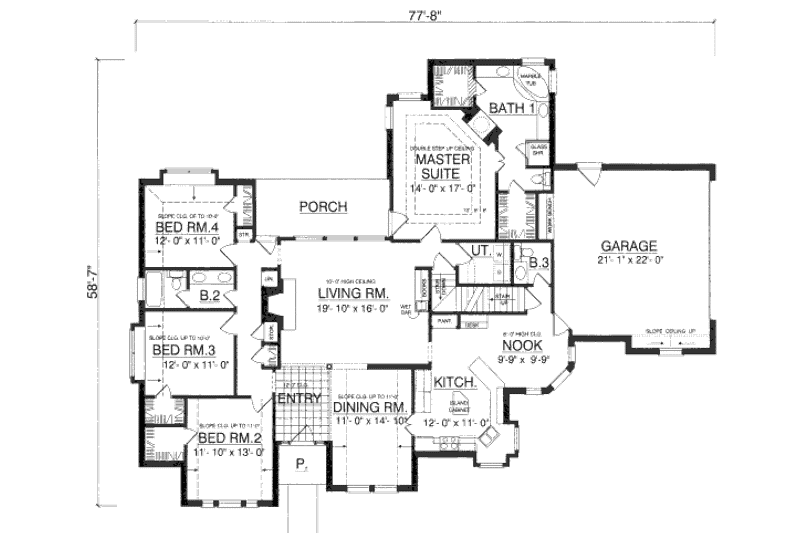

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$785.00
$875.00
$960.00
$1535.00
$685.00
Foundation
$0.00
$0.00
$0.00
Additional Options
$100.00
$50.00
$100.00
$39.00
$100.00
$50.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
