PLAN 17-2740
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 80' 6"
Width : 73' 6"
Area
First Floor: 2951 sq/ft height 9'
Roof
Primary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Rooms
Bedroom 2:
195 sq/ft width 14' 10" x depth 13' 2"
Bedroom 3:
173 sq/ft width 13' 2" x depth 13' 2"
Bedroom 4:
171 sq/ft width 15' 4" x depth 11' 2"
Breakfast Room:
106 sq/ft width 10' 8" x depth 10'
Dining Room:
204 sq/ft width 12' 2" x depth 16' 10"
Foyer:
52 sq/ft width 6' 2" x depth 8' 6"
Garage:
707 sq/ft width 31' 8" x depth 22' 4"
Gathering Room:
360 sq/ft width 19' 6" x depth 18' 6"
Kitchen:
209 sq/ft width 16' 6" x depth 12' 8"
Master Bathroom:
348 sq/ft width 21' 4" x depth 16' 4"
Master Bedroom:
264 sq/ft width 18' 8" x depth 14' 2"
Porch - Front:
128 sq/ft width 11' 6" x depth 11' 2"
Porch - Rear:
213 sq/ft width 11' 8" x depth 18' 4"
Wash Room:
87 sq/ft width 8' 6" x depth 10' 4"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.

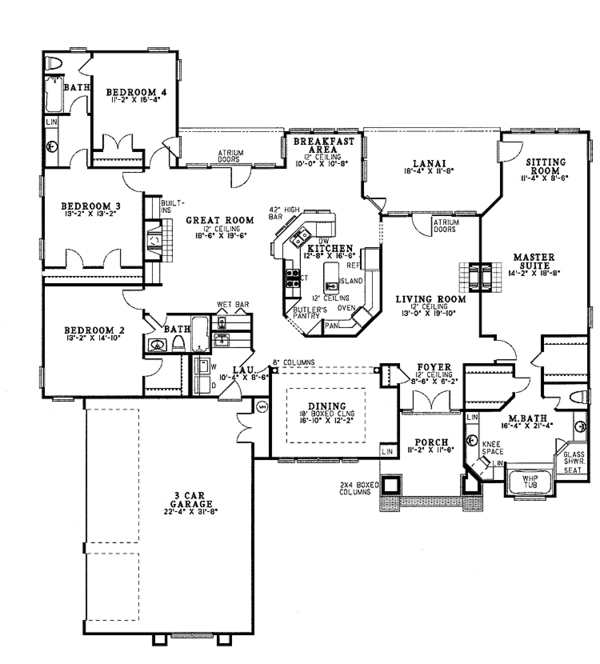

- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
