Key Specs
2007
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 20-360
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 52'
Height : 29'
Width : 44'
Area
Bonus: 295 sq/ft
First Floor: 1329 sq/ft
Garage: 523 sq/ft
Second Floor: 748 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Play Flex Room
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Rear Porch
More
Jack & Jill Bath
Wheelchair Adaptable
Rooms
Bathroom 2:
23 sq/ft width 5' 4" x depth 4' 6"
Bathroom 3:
42 sq/ft width 8' 6" x depth 5'
Bathroom 4:
39 sq/ft width 7' 10" x depth 5'
Bedroom 2:
132 sq/ft width 12' x depth 11'
Bedroom 3:
124 sq/ft width 11' 4" x depth 11'
Bedroom 4:
124 sq/ft width 11' 4" x depth 11'
Dining Room:
130 sq/ft width 11' 4" x depth 11' 6"
Foyer:
49 sq/ft width 9' x depth 5' 6"
Game Room:
286 sq/ft width 13' x depth 22'
Garage:
480 sq/ft width 22' 4" x depth 21' 6"
Kitchen:
116 sq/ft width 11' 8" x depth 10'
Living Room:
320 sq/ft width 20' x depth 16'
Master Bathroom:
90 sq/ft width 12' x depth 7' 6"
Master Bedroom:
214 sq/ft width 15' 4" x depth 14'
Master Closet:
45 sq/ft width 6' x depth 7' 6"
Nook:
116 sq/ft width 11' 8" x depth 10'
Utility Room:
31 sq/ft width 6' x depth 5' 4"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

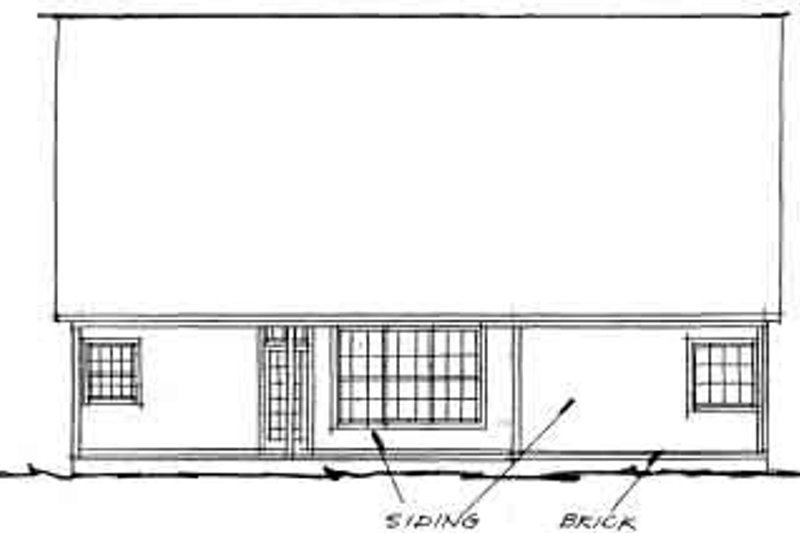

- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

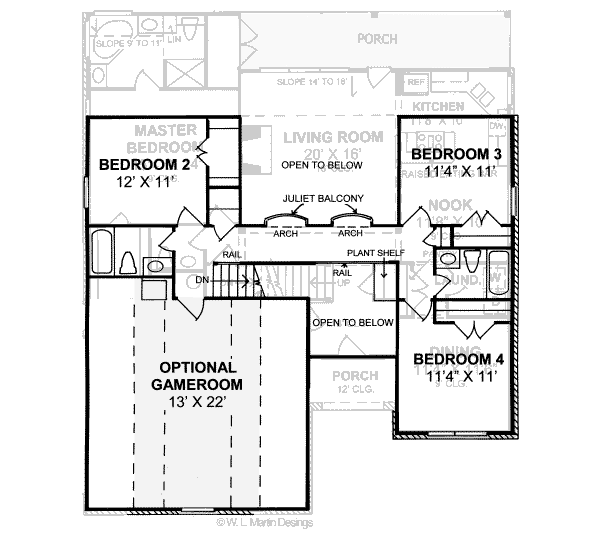

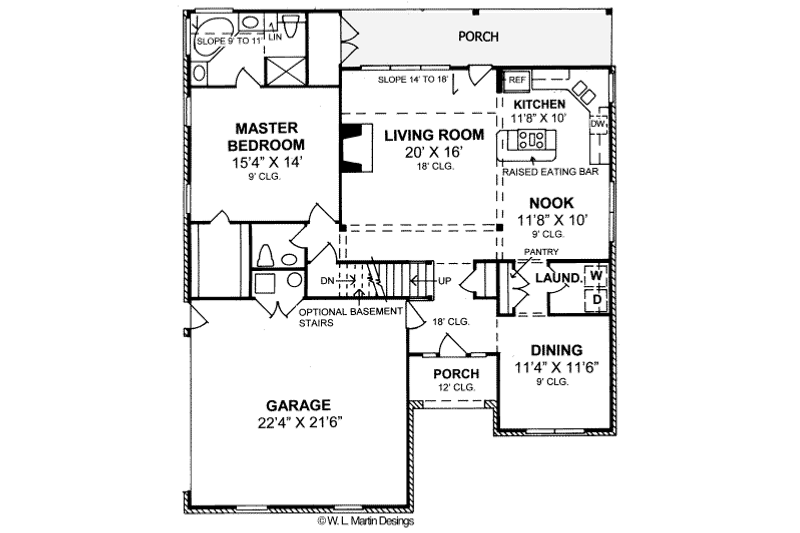

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

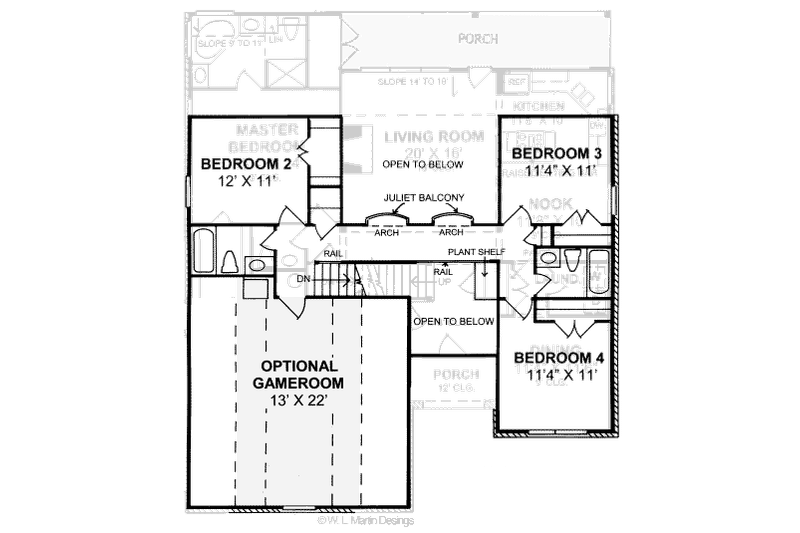

- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$820.00
$1056.00
Foundation
$0.00
$156.00
$156.00
Framing
$0.00
$156.00
Additional Options
$156.00
$132.00
$236.00
$31.20
$132.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
