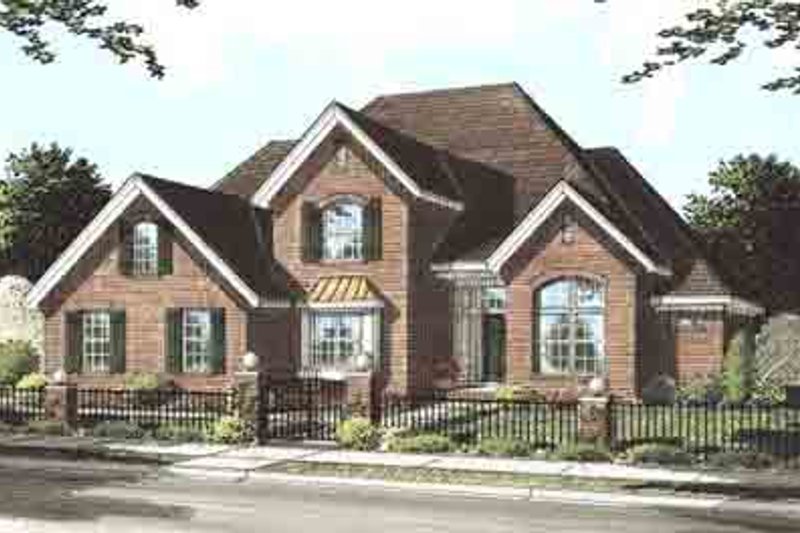

Photographs may show modified designs.
PLAN 20-1537
Key Specs
2487
sq ft
4
Beds
3
Baths
2
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 20-1537
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 58'
Height : 29'
Width : 59'
Height : 29'
Width : 59'
Area
Bonus: 286 sq/ft
First Floor: 2019 sq/ft height 9'
Second Floor: 468 sq/ft
First Floor: 2019 sq/ft height 9'
Second Floor: 468 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Play Flex Room
Storage Area
Sunroom
Unfinished Future Space
Great Room Living Room
Play Flex Room
Storage Area
Sunroom
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Screened Porch
Rooms
Bedroom 2:
144 sq/ft width 12' x depth 12'
Bedroom 3:
130 sq/ft width 11' 6" x depth 11' 4"
Bedroom 4:
128 sq/ft width 11' x depth 11' 8"
Breakfast Room:
134 sq/ft width 11' 6" x depth 11' 8"
Dining Room:
168 sq/ft width 12' x depth 14'
Foyer:
88 sq/ft width 8' x depth 11'
Game Room:
279 sq/ft width 21' 6" x depth 13'
Garage:
462 sq/ft width 21' x depth 22'
Kitchen:
136 sq/ft width 11' x depth 12' 5"
Kitchen Island:
21 sq/ft width 3' x depth 7'
Laundry Room:
60 sq/ft width 6' x depth 10'
Living Room:
333 sq/ft width 16' 8" x depth 20'
Master Bedroom:
238 sq/ft width 17' x depth 14'
Master Closet:
66 sq/ft width 11' x depth 6'
Porch - Screened:
210 sq/ft width 17' 6" x depth 12'
Study:
172 sq/ft width 11' x depth 15' 8"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

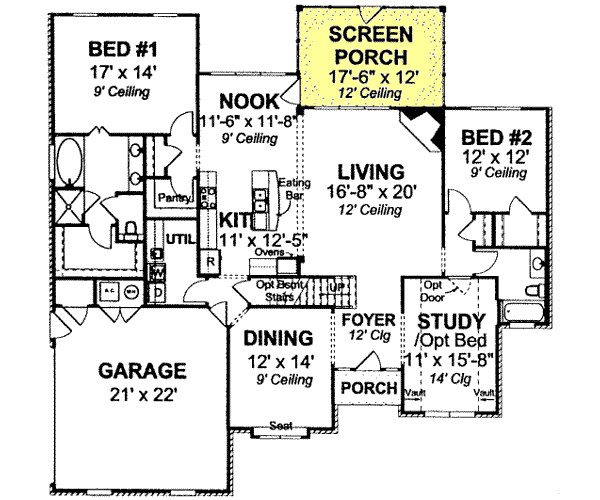

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

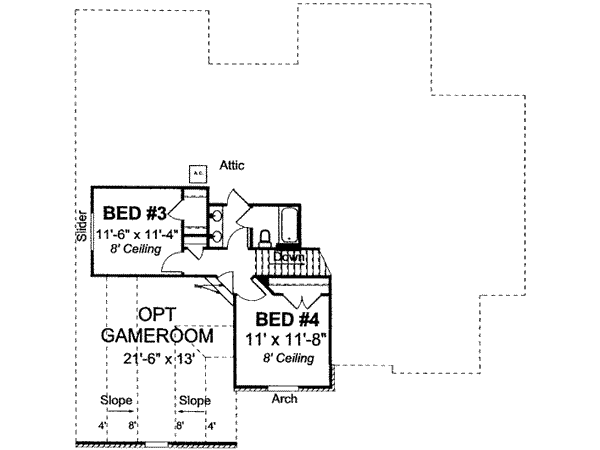

- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set
: $1055.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set
: $1350.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $195.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $195.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $195.00 |
Wood 2x6 |
Additional Options
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
