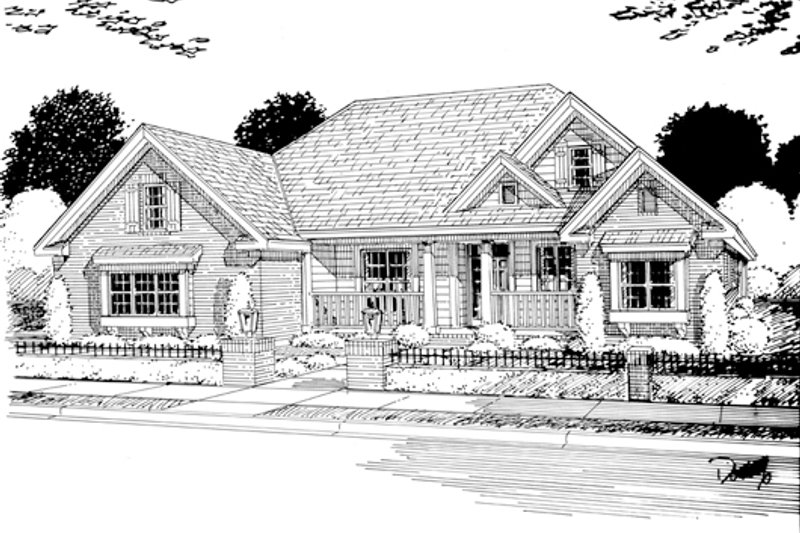

PLAN #513-2045

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

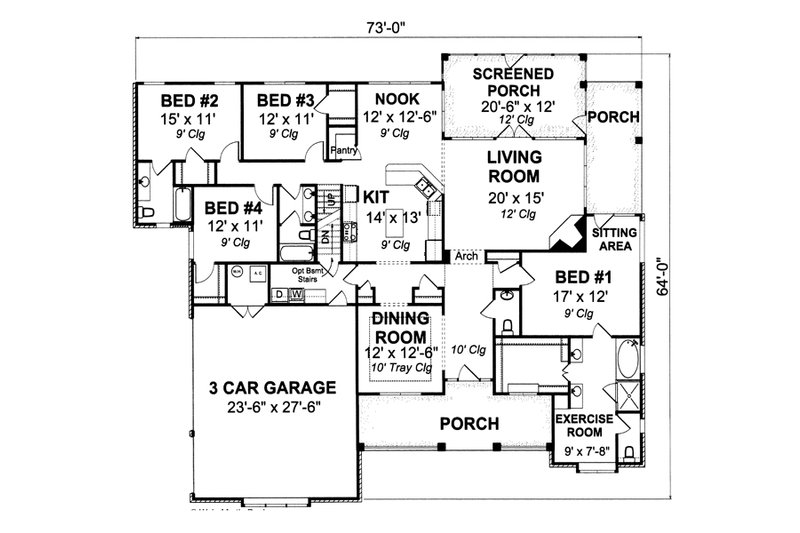

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #513-2045

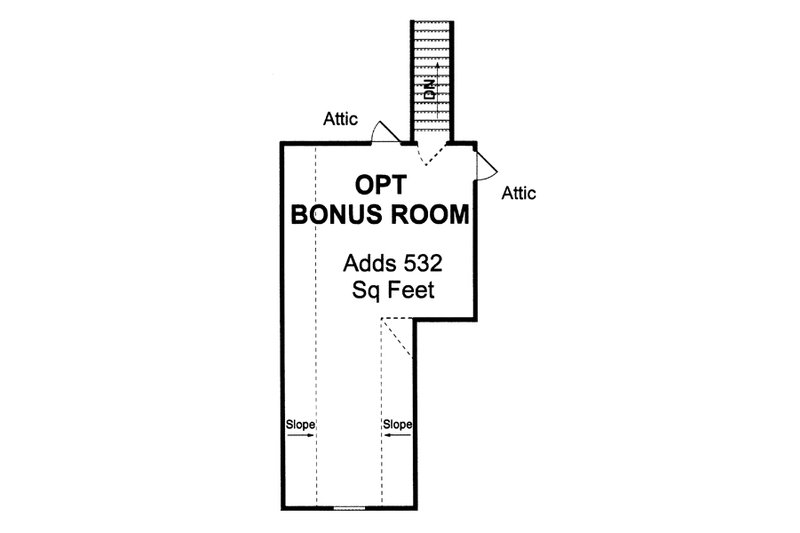

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #513-2045

Full Specs & Features

Depth : 64'
Height : 29'
Width : 73'
Bonus: 532 sq/ft
First Floor: 2550 sq/ft
Garage: 708 sq/ft
Roof Framing : Roof Trusses
Roof Load : 30/20
Primary Pitch : 10:12
Secondary Pitch : 8:12
Roof Type : Roof Trusses
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Bonus Play Flex Room
Great Room Living Room
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch Sunroom

Bathroom 2:

56 sq/ft width 5' 2" x depth 11'

Bedroom 1:

204 sq/ft width 17' x depth 12'

Bedroom 2:

165 sq/ft width 15' x depth 11'

Bedroom 3:

132 sq/ft width 12' x depth 11'

Bedroom 4:

132 sq/ft width 12' x depth 11'

Dining Room:

150 sq/ft width 12' x depth 12' 6"

Exercise Room:

69 sq/ft width 9' x depth 7' 8"


646 sq/ft width 23' 6" x depth 27' 6"

Hall Bathroom:

22 sq/ft width 3' 6" x depth 6' 6"


182 sq/ft width 14' x depth 13'


150 sq/ft width 12' x depth 12' 6"

Porch - Screened:

246 sq/ft width 20' 6" x depth 12'

What's Included In This Plan Set

  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

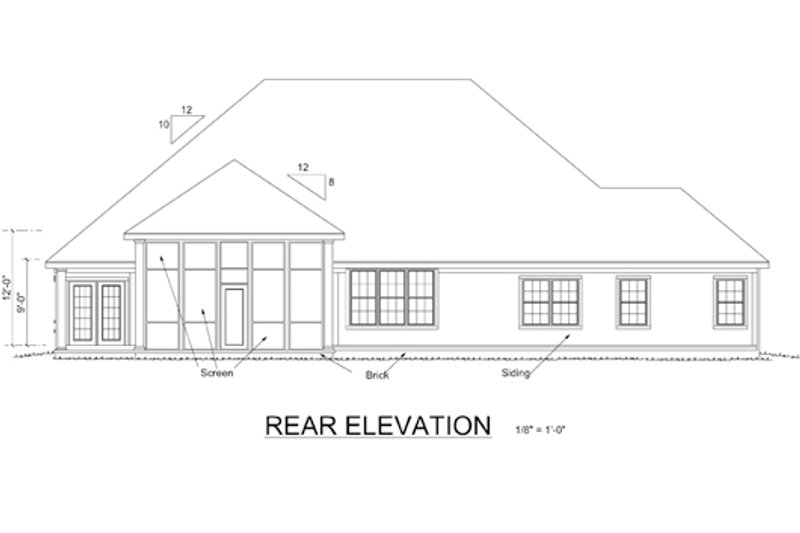

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
