PLAN 17-1020

Photographs may show modified designs.

Save
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

2742
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$254.15
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$68.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Subtotal
NOW $1147.50
You save $202.50 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 17-1020

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description


An arched entry accented with elegant dual columns and flanked by charming dormers meshes cleanly with the smooth stucco and rock exterior of this offering. The sun room demands attention with its elegant French door entries, twin sky lights and quick access to three distinct areas of the home and the back yard. The screened porch is sure to be a hit with the beautiful atrium doors leading to the master suite and adjacent placement next to the kitchen. All ceilings 9 ft Stone step entry to front porch with 8 inch boxed columns and vaulted ceiling Foyer with 12 ft ceiling Bedroom 2/Study with 10 ft ceiling Dining room with 8 inch round columns and 10 ft ceiling Kitchen with 10 ft ceiling and desk area, bar open to Breakfast room with 10 ft ceiling, bay window and access to rear screened porch Great room with 10 ft ceiling, built-in media center and fireplace with French doors to Sun room Sun room accessed from screened porch and Great room with French doors-Bedroom 4 access too Master suite has 10 ft boxed ceiling, atrium doors to screened porch Master bath with his/hers closets, whirlpool tub, glass shower with seat and split vanities Side covered porch similar to front porch from garage Proposed upper bonus area Roof Framing: 2x6 Insulation Exterior Walls: R-13 Ceiling Minimum: R-30 Floor Minimum: R-19 Roof Designed Roof Load: 45-lbs. Psf lbs. psf Roof Pitch - Main: 8:12 Roof Pitch - Front Gable: 12:12 Roof Pitch - Porch: 5:12 Room Dimensions: Master Bath - 16/0 x 16/8 Master Suite - 16/8 x 16/8 Laundry - 12/10 x 5/11 Kitchen - 13/6 x 10/4 Nook - 13/6 x 9/6 Great Room - 21/0 x 17/0 Bedroom 4 - 15/4 x 12/0 Bedroom 3 - 11/6 x 12/0 Bedroom 2 - 11/0 x 13/10 Foyer - 7/4 x 10/11 Dining - 12/6 x 16/2 Garage - 20/4 x 25/6 Covered Side Porch - 16/4 x 8/0 Screened Porch - 13/6 x 15/0 Sun Room 21/0 x 8/8 Front Porch 31/6 x 8/0 (10' ceiling) Bonus Room - 32/9 x 26/10 (8' ceiling)

Full Specs & Features


Dimension

Depth : 59'

Height : 27'

Width : 85'

Area

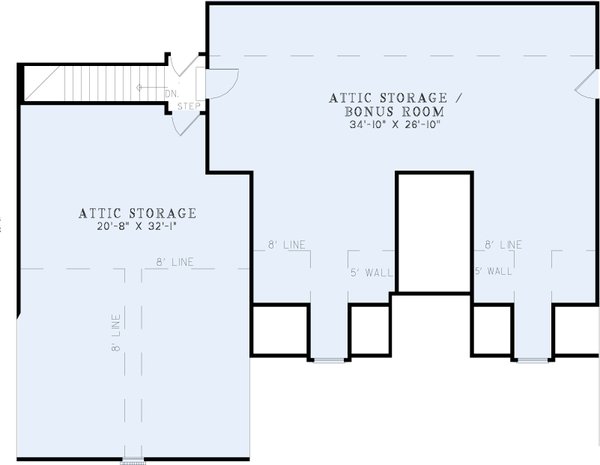

Bonus : 916 sq/ft

Garage : 519 sq/ft

Main Floor : 2742 sq/ft

Porch : 620 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Additional Room Features

Den Office Study Computer

Great Room Living Room

Play Flex Room

Sunroom

Unfinished Future Space

Garage Features

Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Screened Porch

What's Included In This Plan Set




  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
  • CAD Unlimited Build comes with a free PDF.

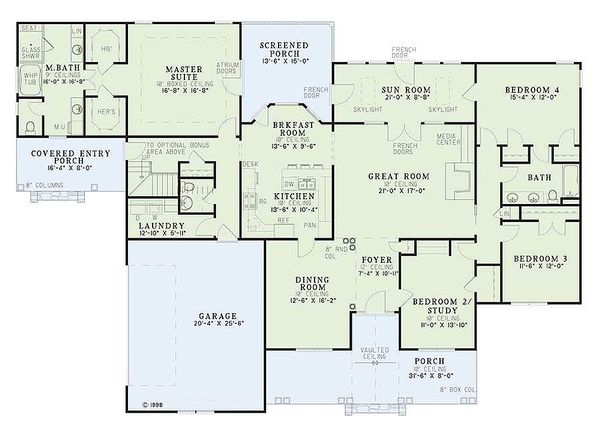

  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
