PLAN 20-198

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Full Specs & Features


Depth : 56'

Height : 29'

Width : 55'


First Floor: 1803 sq/ft height 9'

Garage: 670 sq/ft

Second Floor: 1071 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Main Ceiling : 9'


Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Additional Room Features

Family Room Keeping Room

Hobby Rec Room Game Room

Master Sitting Area

Storage Area

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot


Bathroom 2:

18 sq/ft width 6' 2" x depth 3'

Bathroom 3:

61 sq/ft width 8' x depth 7' 8"

Bathroom 4:

55 sq/ft width 11' x depth 5'

Bedroom 2:

180 sq/ft width 11' 8" x depth 15' 6"

Bedroom 3:

120 sq/ft width 11' 6" x depth 10' 6"

Bedroom 4:

120 sq/ft width 11' 6" x depth 10' 6"

Dining Room:

128 sq/ft width 11' 8" x depth 11'

Family Room:

325 sq/ft width 16' 8" x depth 19' 6"


52 sq/ft width 8' 8" x depth 6'

Game Room:

239 sq/ft width 20' 10" x depth 11' 6"


599 sq/ft width 20' 4" x depth 29' 6"


146 sq/ft width 10' 10" x depth 13' 6"

Kitchen Island:

12 sq/ft width 5' x depth 2' 6"

Living Room:

126 sq/ft width 11' 6" x depth 11'

Master Bathroom:

150 sq/ft width 12' 6" x depth 12'

Master Bedroom:

222 sq/ft width 16' 6" x depth 13' 6"

Master Closet:

90 sq/ft width 12' 8" x depth 7' 2"


145 sq/ft width 10' x depth 14' 6"


16 sq/ft width 4' x depth 4'

Utility Room:

42 sq/ft width 7' 6" x depth 5' 8"

What's Included In This Plan Set

  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

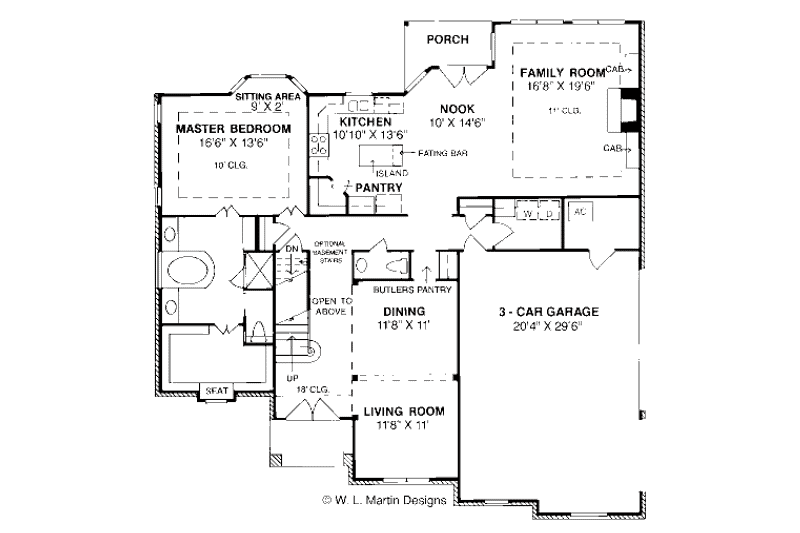

  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

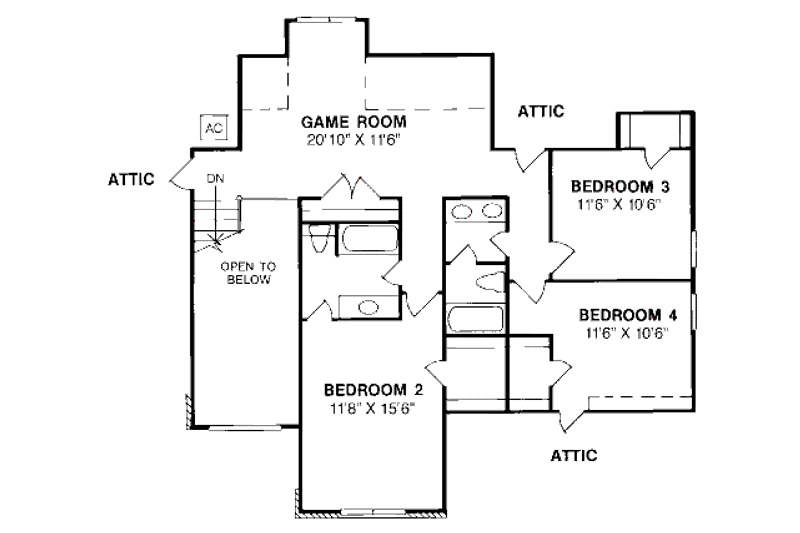

  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
