PLAN 20-188
Photographs may show modified designs.
Key Specs
2878
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $4.99 with Code CTBFALL (Limit 1)
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 20-188
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Modify This Plan
Floor Plans

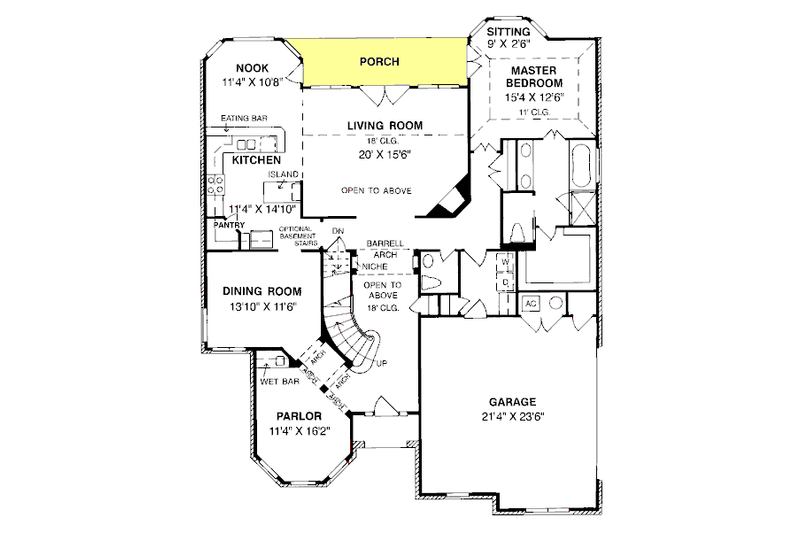

Floor Plan - Main Floor
BUILDER Advantage Program
PRO BUILDERS:
Join the club and save 5% on your first order plus exclusive discounts and more.
Click to Get Your Trend Report

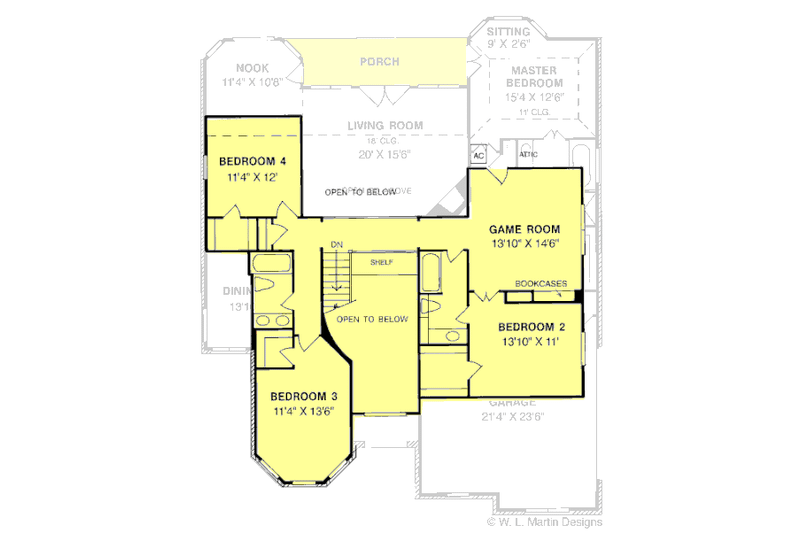

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 60' 6"
Height : 31'
Width : 48'
Area
First Floor: 1850 sq/ft height 9'
Garage: 539 sq/ft
Second Floor: 1028 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Master Sitting Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
Rooms
Bathroom 2:
21 sq/ft width 4' 4" x depth 5'
Bathroom 3:
45 sq/ft width 5' x depth 9'
Bathroom 4:
63 sq/ft width 5' 8" x depth 11' 2"
Bedroom 2:
152 sq/ft width 13' 10" x depth 11'
Bedroom 3:
152 sq/ft width 11' 4" x depth 13' 6"
Bedroom 4:
135 sq/ft width 11' 4" x depth 12'
Dining Room:
159 sq/ft width 13' 10" x depth 11' 6"
Game Room:
200 sq/ft width 13' 10" x depth 14' 6"
Garage:
501 sq/ft width 21' 4" x depth 23' 6"
Kitchen:
168 sq/ft width 11' 4" x depth 14' 10"
Living Room:
310 sq/ft width 20' x depth 15' 6"
Master Bathroom:
98 sq/ft width 9' 6" x depth 10' 4"
Master Bedroom:
191 sq/ft width 15' 4" x depth 12' 6"
Master Closet:
69 sq/ft width 9' 6" x depth 7' 4"
Master Sitting Area:
22 sq/ft width 9' x depth 2' 6"
Nook:
120 sq/ft width 11' 4" x depth 10' 8"
Pantry:
14 sq/ft width 3' 10" x depth 3' 10"
Parlor:
183 sq/ft width 11' 4" x depth 16' 2"
Utility Room:
51 sq/ft width 6' 8" x depth 7' 8"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$1085.00
$1380.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$100.00
$39.00
$100.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
