PLAN #117-315

Key Specs


3805
sq ft

3
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Lower Floor Plan

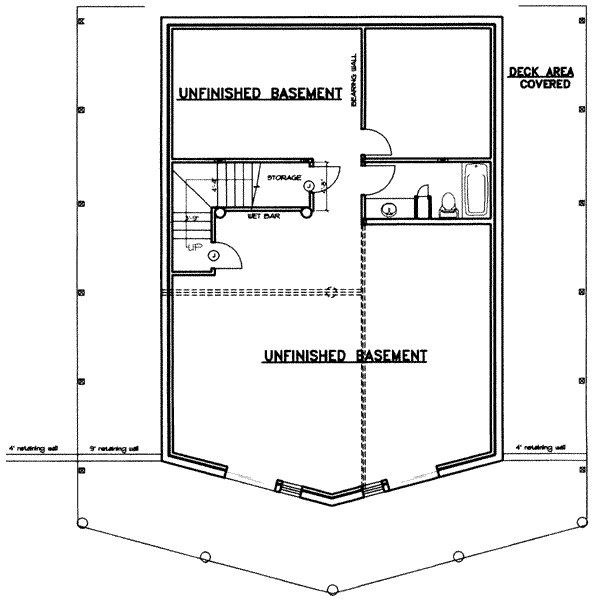

Traditional Floor Plan - Lower Floor Plan Plan #117-315
Floor Plan - Main Floor Plan

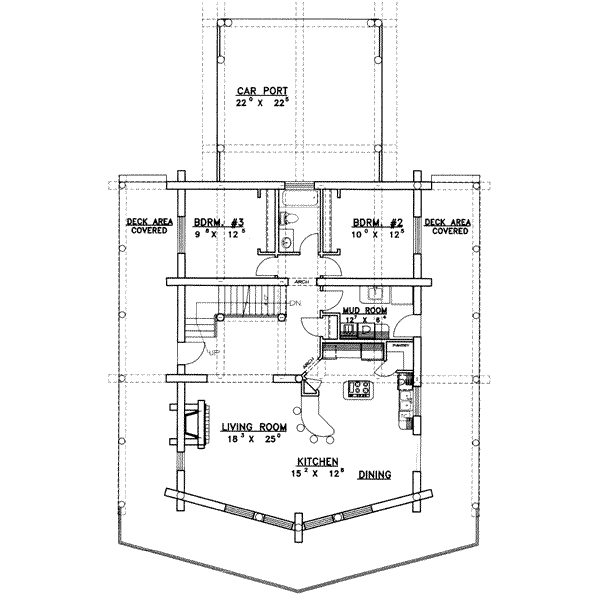

Traditional Floor Plan - Main Floor Plan Plan #117-315
Floor Plan - Upper Floor Plan

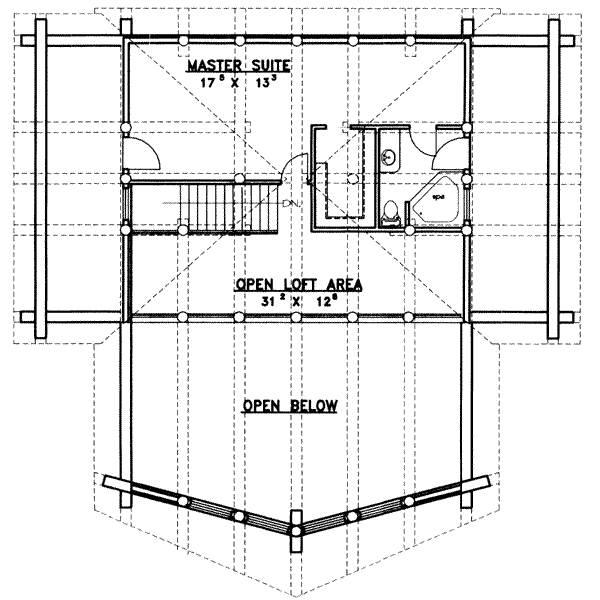

Traditional Floor Plan - Upper Floor Plan Plan #117-315

Full Specs & Features


Dimension
Depth : 77' 7"
Height : 37'
Width : 48' 10"
Area
First Floor: 1412 sq/ft
Second Floor: 851 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : Conventional
Primary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Log
Framing : Log
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Master Sitting Area
Storage Area
Loft
Garage Features
Carport Porte Cochere
Lot Characteristics
Suited For Narrow Lot
Suited For Sloping Lot
Outdoor Spaces
Covered Rear Porch
Balcony
Wrap Around Porch
More
Suited For Vacation Home
Rooms

Bedroom 2:

124 sq/ft width 10' x depth 12' 5"

Bedroom 3:

111 sq/ft width 9' x depth 12' 5"

Carport:

493 sq/ft width 22' x depth 22' 5"

Kitchen:

192 sq/ft width 15' 2" x depth 12' 8"

Living Room:

456 sq/ft width 18' 3" x depth 25'

Loft:

372 sq/ft width 31' x depth 12'

Master Suite:

225 sq/ft width 17' x depth 13' 3"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$925.00
5 printed plan sets mailed to you.
8 Copy Set :
$1000.00
8 printed plan sets mailed to you.
Reproducible Set :
$1200.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
