PLAN 20-1685
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 65'
Height : 32'
Width : 89'
Height : 32'
Width : 89'
Area
Bonus: 240 sq/ft
First Floor: 3249 sq/ft height 9'
Second Floor: 1202 sq/ft
First Floor: 3249 sq/ft height 9'
Second Floor: 1202 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Mud Room
Storage Area
Unfinished Future Space
Hobby Rec Room Game Room
Mud Room
Storage Area
Unfinished Future Space
Garage Features
Oversized Garage
Side Entry Garage
Side Entry Garage
Entryway
Friend S Entry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
262 sq/ft width 15' x depth 17' 6"
Bedroom 3:
224 sq/ft width 16' x depth 14'
Bedroom 4:
224 sq/ft width 16' x depth 14'
Breakfast Room:
184 sq/ft width 12' 4" x depth 15'
Dining Room:
224 sq/ft width 16' x depth 14'
Game Room:
350 sq/ft width 17' 6" x depth 20'
Garage:
724 sq/ft width 23' x depth 31' 6"
Kitchen:
238 sq/ft width 17' x depth 14'
Living Room:
520 sq/ft width 26' x depth 20'
Master Bedroom:
300 sq/ft width 16' 8" x depth 18'
Study:
224 sq/ft width 16' x depth 14'
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

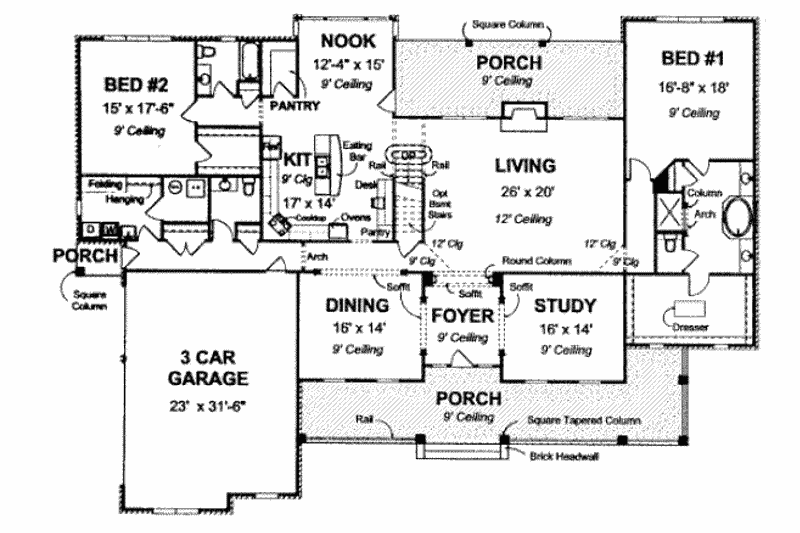

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

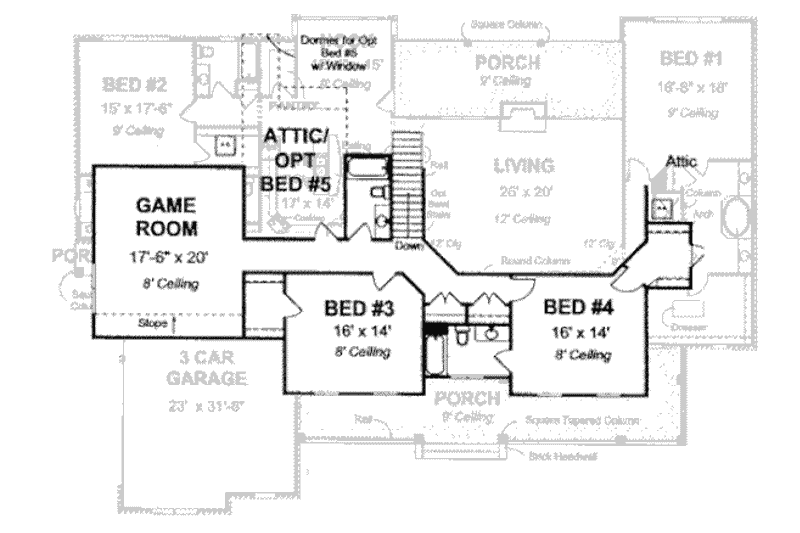

- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set : $2150.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $2445.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $195.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $195.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $195.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $195.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
