PLAN 455-463
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

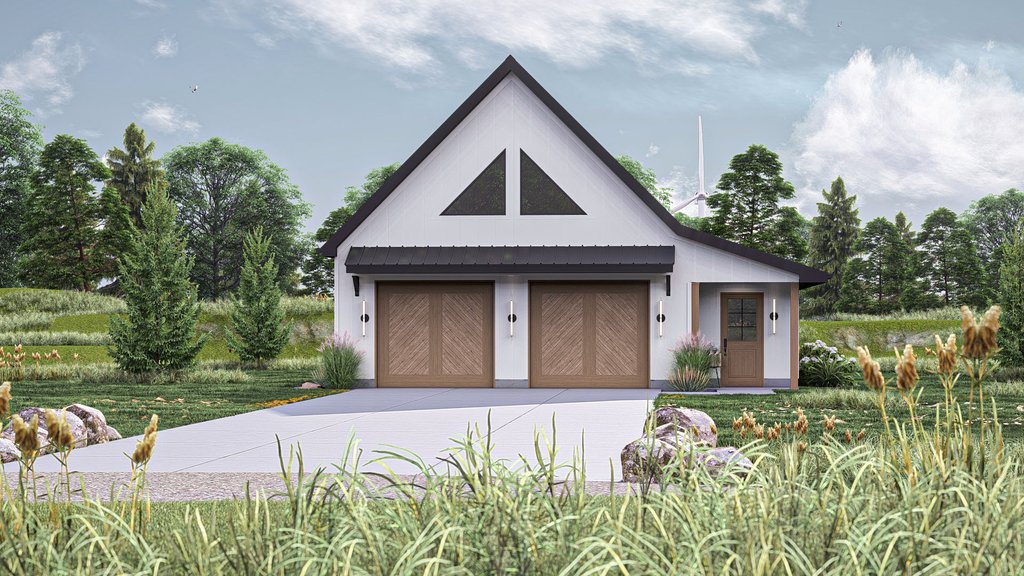

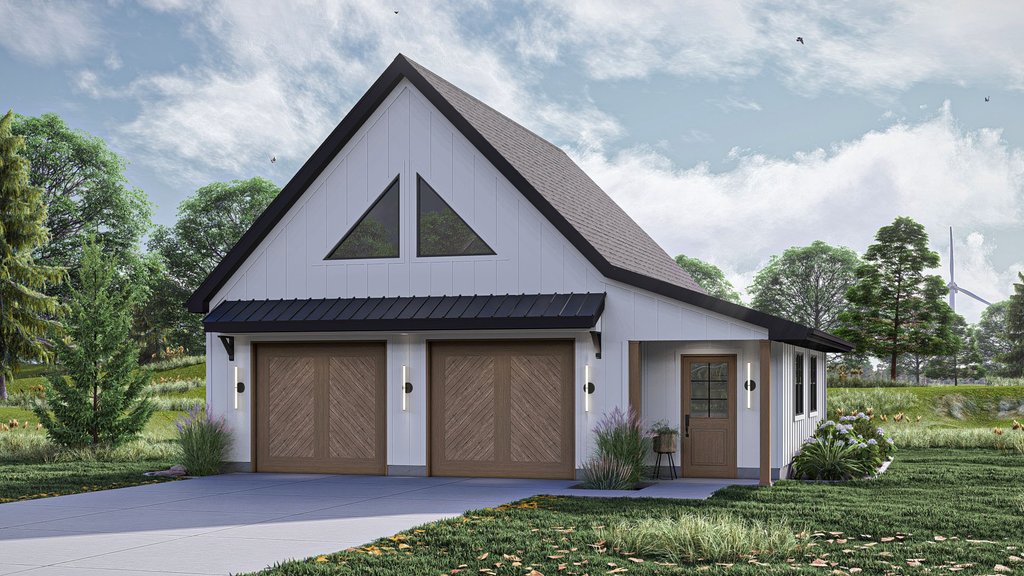

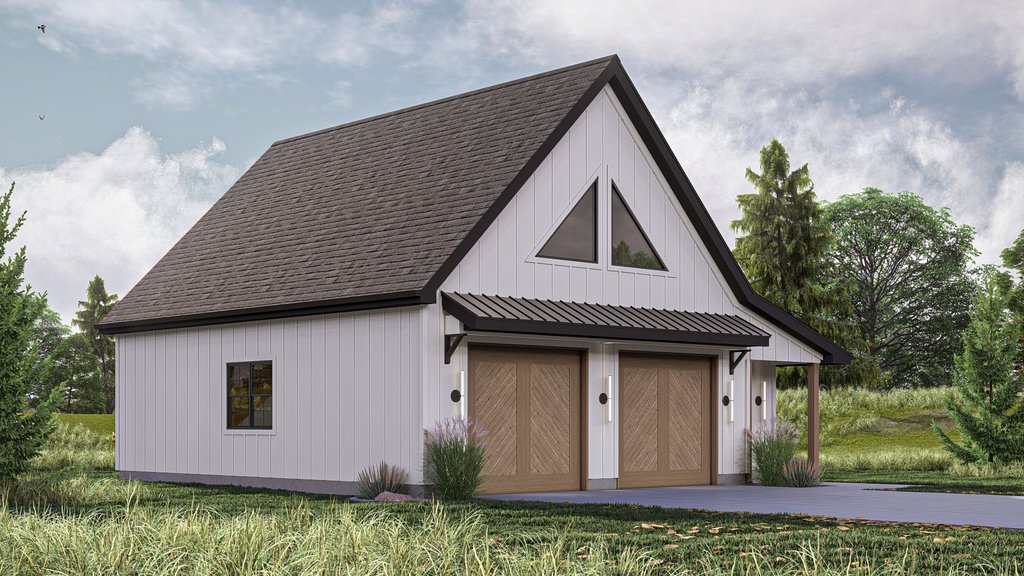

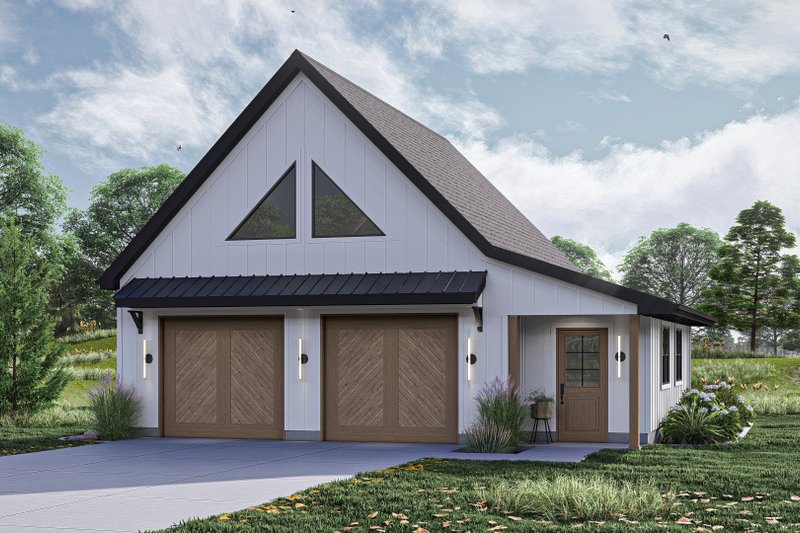

Introducing a harmonious blend of modern functionality and timeless farmhouse charm. This two-car garage is designed to meet the needs of contemporary living while paying homage to classic architectural elements. As you step onto the smooth concrete driveway, the clean lines and inviting facade immediately catch your eye. The exterior boasts a mix of white board & batten siding and natural wood accents, reminiscent of traditional farmhouse aesthetics, while large windows allow ample natural light to flood the space within. Upon entering, you're greeted by a dedicated workshop space, complete with a built-in workbench and ample storage solutions. From DIY projects to automotive tinkering, this workshop provides the perfect environment to unleash your creativity and pursue your passions. Adjacent to the workshop, a spacious two-car garage, thoughtfully designed to accommodate vehicles with ease. The interior features a durable epoxy-coated floor, providing both style and durability for everyday use. Modern chevron barn-style doors add character and functionality, seamlessly blending modern convenience with farmhouse charm. Ascending the staircase, you'll discover a vast, unfinished space brimming with potential. Whether you envision it as a versatile storage area or dream of transforming it into a cozy retreat, the loft offers endless possibilities to customize and personalize according to your needs. The garage floor plan is not just a practical addition to your property—it's a statement of style and functionality. With its modern farmhouse design, unfinished loft storage, and workshop space, it effortlessly blends the best of both worlds, offering a versatile and inviting space for homeowners with a discerning eye for quality and craftsmanship.
Floor Plans

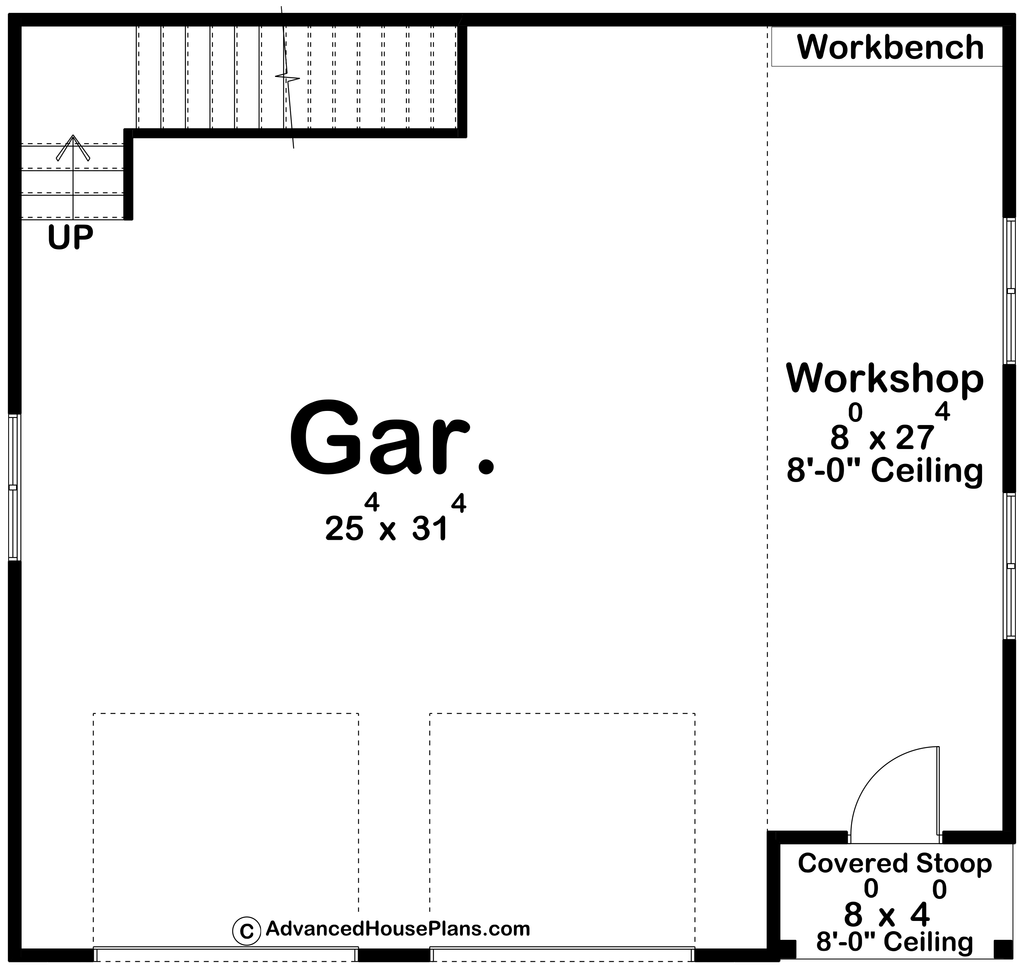

Floor Plan - Main Floor

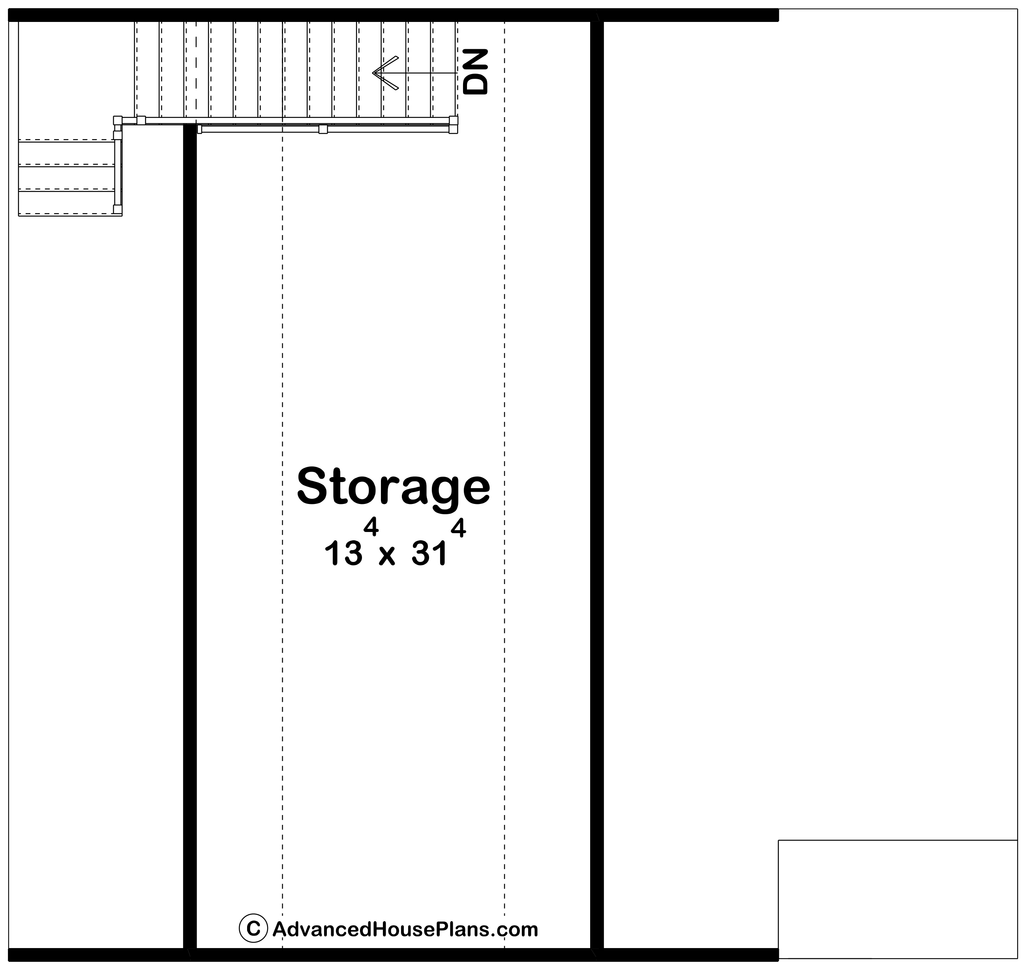

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 32'
Height : 24' 6"
Width : 34'
Area
Garage : 1057 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling

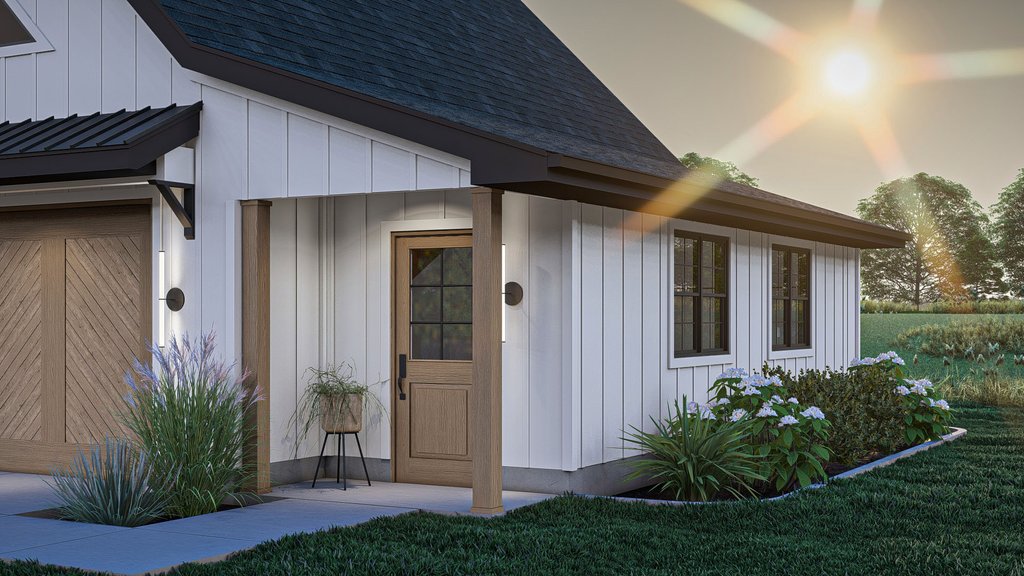

Ceiling Details : The covered stoop and workshop feature 8 foot tall ceilings.
Main Ceiling : 10'
Roof
Primary Pitch : 12/12
Roof Framing : Trusses
Secondary Pitch : 4/12, 6/12
Exterior Wall Framing
Framing : 2x4
Additional Room Features
Workshop
Garage Features
Front Entry Garage
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$699.00
$699.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$994.00
$994.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$998.00
$998.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$1698.00
$1698.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$299.00
$299.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$299.00
$299.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$59.00
$59.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$299.00
$299.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
