PLAN 118-165

Photographs may show modified designs.

Dream House Plan - Traditional Exterior - Front Elevation Plan #118-165

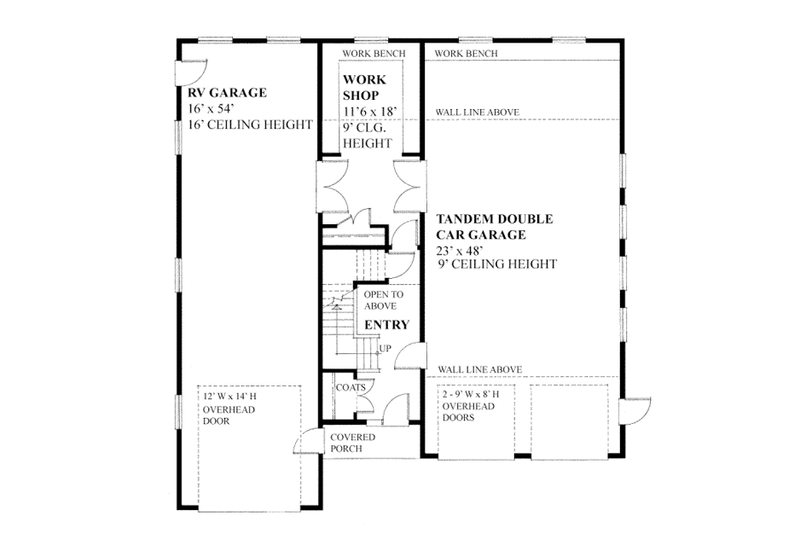

Dream House Plan - Traditional Floor Plan - Main Floor Plan #118-165

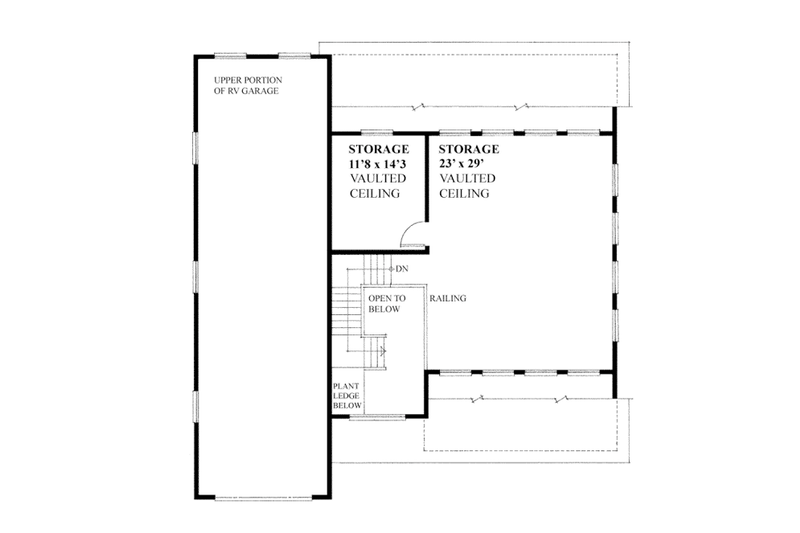

Dream House Plan - Traditional Floor Plan - Upper Floor Plan #118-165

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Traditional House Plans

Key Specs

2893
sq ft

0
Beds

0
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Audio Video Design	$140.25
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$140.25
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $633.25

You save $111.75 (15% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 118-165

Home > Style > Traditional House Plans

Key Specs

2893
sq ft

0
Beds

0
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 2893 sq ft and has 0 bedrooms and 0 bathrooms.

Floor Plans

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 55'

Height : 27' 6"

Width : 52' 6"

Area

Bonus: 1052 sq/ft

Garage: 2111 sq/ft

Porch: 46 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Truss

Roof Type : Metal

Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Additional Room Features

Loft

Unfinished Future Space

Vaulted / Cathedral Ceilings

Workshop

Garage Features

Front Entry Garage

RV Garage

Tandem Garage

Outdoor Spaces

Balcony

Covered Front Porch

Rooms

Bonus/Storage 1:

width 11' 8" x depth 14' 3"

Bonus/Storage 2:

width 23' x depth 29'

Covered Front Porch:

46 sq/ft

Entry:

233 sq/ft

RV Garage:

935 sq/ft width 16' x depth 54'

Tandem Double Garage:

1176 sq/ft width 23' x depth 48'

Workshop:

285 sq/ft width 11' 6" x depth 18'

What's Included In This Plan Set

See a sample plan set

Plans are typically drawn to ¼” scale and include:

Cover Sheet: Cover sheet with rendering and art floor plans
Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Electrical Plan(s): Electrical fixtures / switches / smoke alarms by location only on floor plans.
Detail Sheet(s): Details as required.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Structural Information: Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Site Plan(s): Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″

Other notes: Plans are engineered by a structural engineer, but not stamped or sealed; you may need to update for your location. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf). Floor live load 40 psf. Assumed soil bearing capacity 1560 psf. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
