Full Specs & Features
Depth : 40'
Height : 27' 2"
Width : 34' 6"

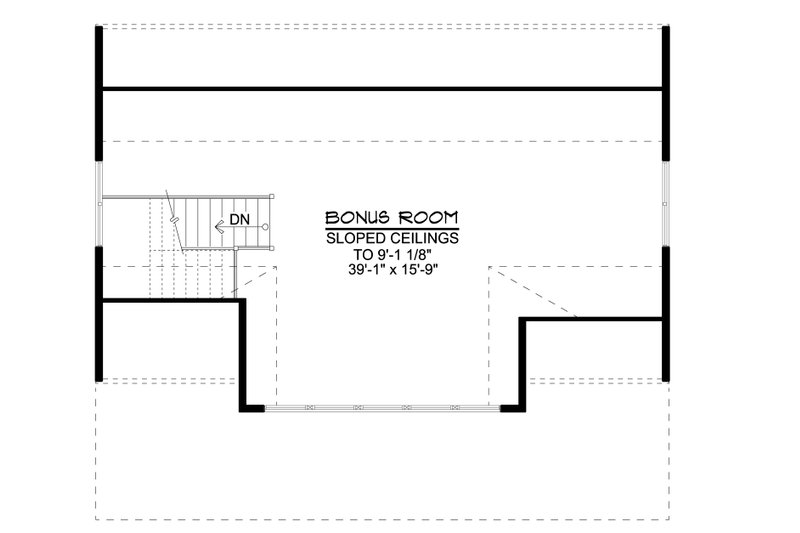

Bonus : 683 sq/ft

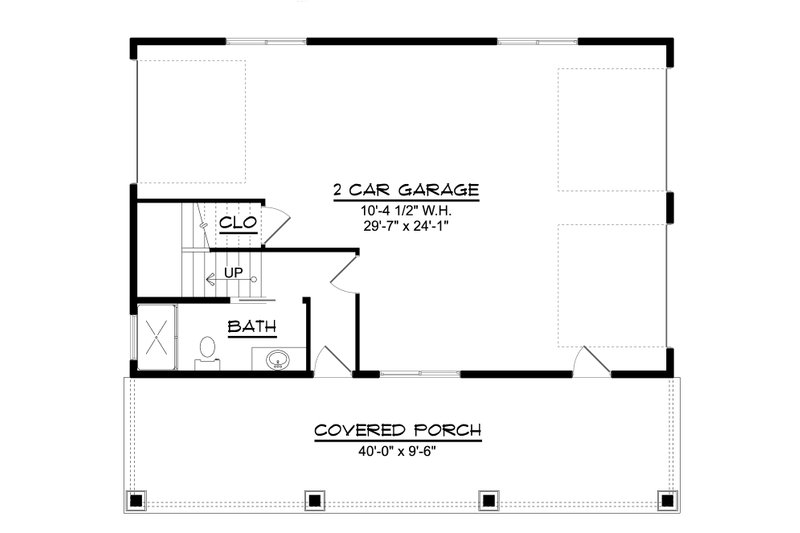

Main Floor : 1000 sq/ft
Porch : 380 sq/ft
Garage Ceiling : 10' 4"
Main Ceiling : 10' 5"
Upper Ceiling Ft : 9'
Primary Pitch : 14/12
Roof Framing : Stick
Roof Load : 30 psf
Roof Type : Shingles
Secondary Pitch : 8/12
Exterior Wall Framing
Exterior Wall Finish : Horizontal Vinyl Siding
Framing : 2x6
Insulation : R-19
Side Entry Garage

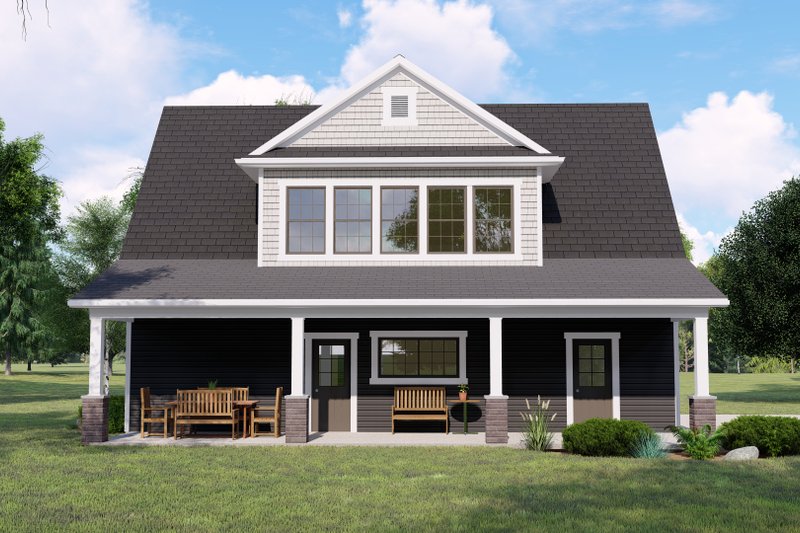

Covered Front Porch
Additional Half Bath
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
