Full Specs & Features
Depth : 29'
Height : 19'
Width : 22'
Main Floor : 101 sq/ft
Porch : 256 sq/ft
Storage : 279 sq/ft
Main Ceiling : 9'
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : hip
Exterior Wall Framing
Exterior Wall Finish : brick
Framing : 2x6
Additional Room Features
Covered Front Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

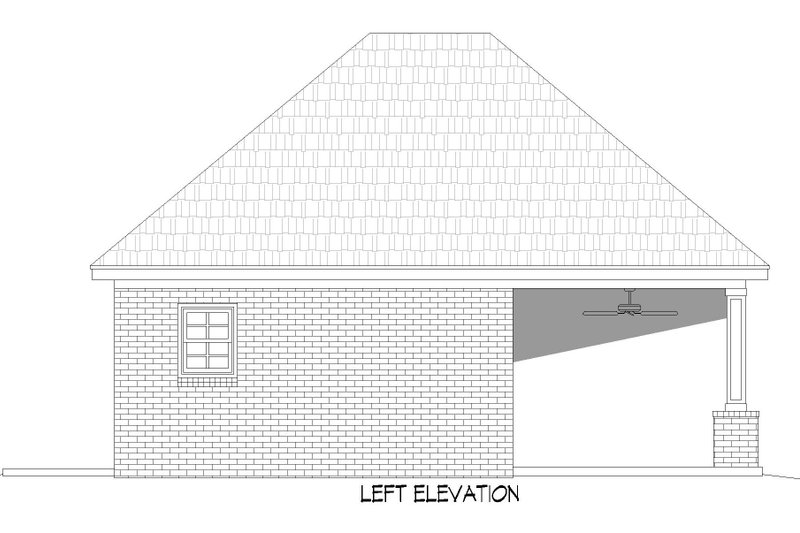

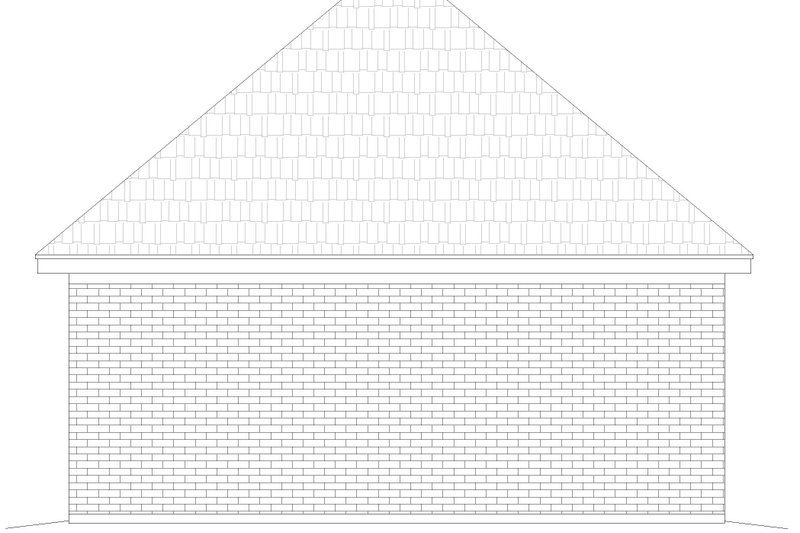

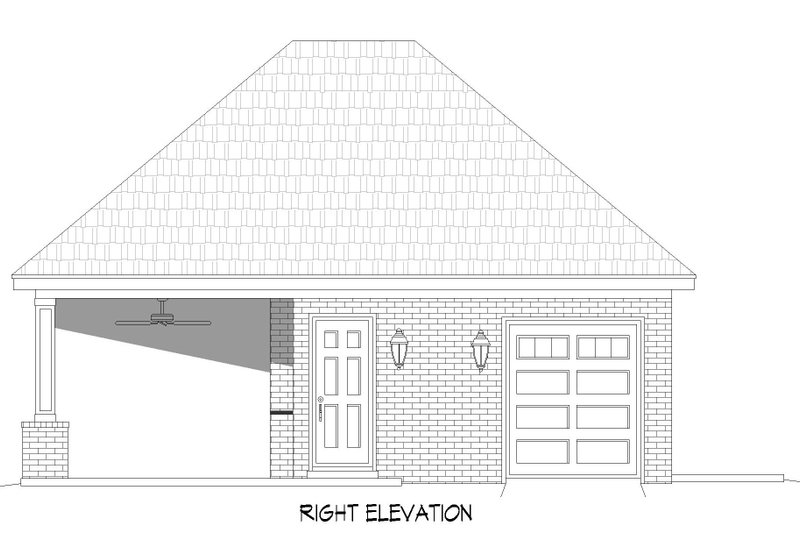

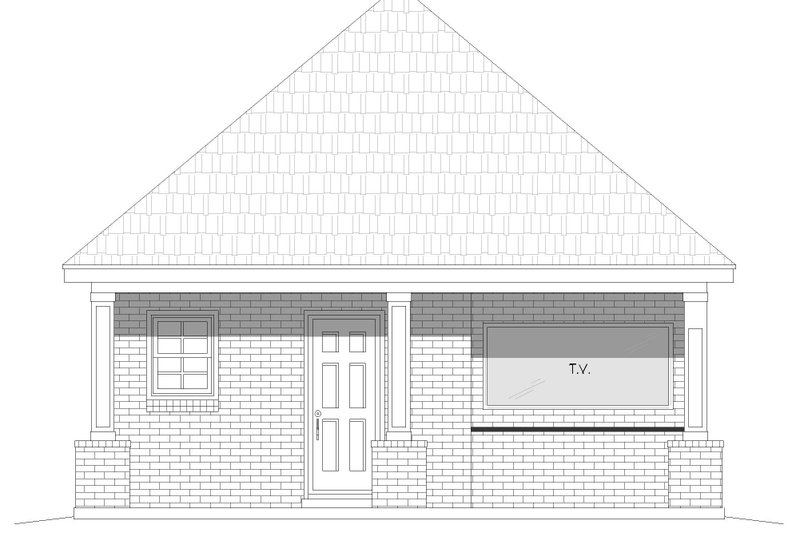

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
