How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
This plan can be customized
Full Specs & Features
Depth : 47'
Height : 16'
Width : 40'
Garage : 350 sq/ft
Main Floor : 1025 sq/ft
Porch : 96 sq/ft
Main Ceiling : 8'
Primary Pitch : 7:12
Roof Framing : 2x6
Roof Type : stick
Exterior Wall Framing
Exterior Wall Finish : Lap Siding and Wood
Framing : 2x4
Insulation : R13, R30, and R19
Main Floor Bedrooms
Main Floor Master Bedroom
Additional Room Features
Great Room Living Room
Main Floor Laundry
Carport Porte Cochere
Suited For Narrow Lot
Covered Front Porch
Economical To Build
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.

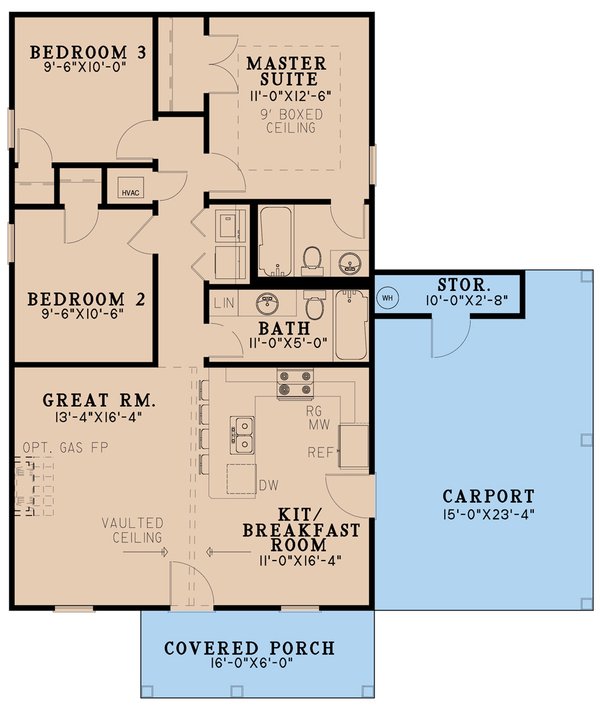

- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
