Key Specs


1059
sq ft

2
Beds

1
Baths

1
Floors

1
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Though it may be small, this lovely home displays every square foot to advantage with an extra-open floor plan. Large, abundant windows bring plenty of light inside. The U-shaped kitchen offers lots of counter space and unimpeded movement to the dining and living areas. Two bedrooms, one slightly larger and with a bigger closet, flank the full bathroom that includes a garden tub and separate shower.

Floor Plans

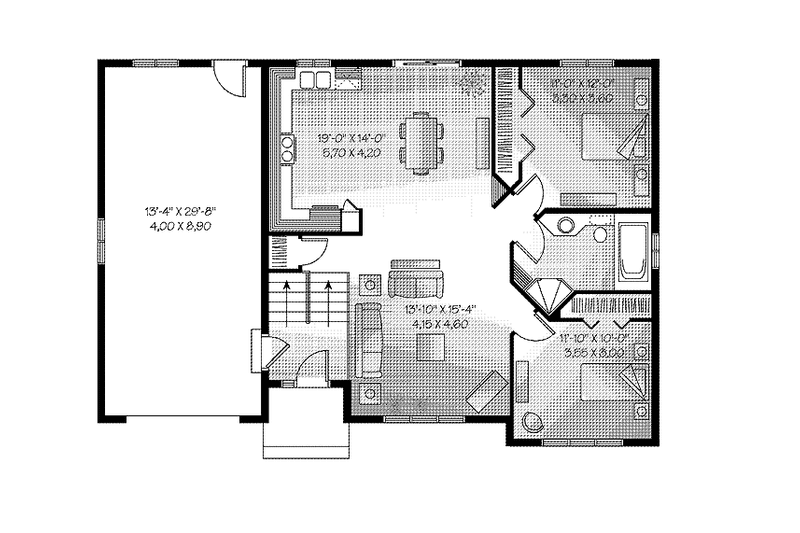

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #23-2402

Full Specs & Features


Dimension
Depth : 33'
Height : 21' 1"
Width : 48'
Area
First Floor: 1059 sq/ft height 8'
Garage: 436 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Additional Room Features
Great Room Living Room
Rooms

Bedroom 1:

132 sq/ft width 11' x depth 12'

Bedroom 2:

118 sq/ft width 11' 10" x depth 10'

Garage:

395 sq/ft width 13' 4" x depth 29' 8"

Great Room:

212 sq/ft width 13' 10" x depth 15' 4"

Kitchen:

266 sq/ft width 19' x depth 14'

What's Included In This Plan Set

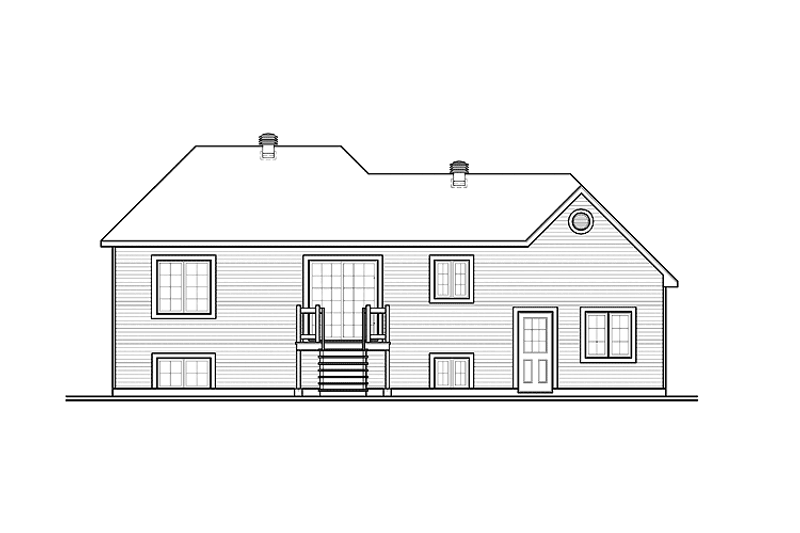

Exterior Elevations (front, rear, left & right sides) typically include:
  • Floor and ceiling heights
  • Dimensions of standard windows
  • Dimensions of roof overhangs
  • Location of all needed flashings
  • Height and location of foundation indicated in dashed lines
  • Type of finishing and textures
  • Dimension and height of chimney
Foundation plans typically include:
  • All exterior and interior dimensions
  • Thickness of foundation walls (if variable)
  • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
  • Location of stairwell
  • Location and sizes of windows
  • Location and dimensions of footings (where applicable and required)
Floor plan(s) typically include:
  • All interior and exterior dimensions
  • Location and sizes of doors and windows
  • Types of interior doors that correspond to a schedule
  • Indication of the structure above (second floor or roof)
  • Location of columns, beams and floor joists, including dimensions
  • Indication of details that are available on other pages
Roof plans typically include:
  • Location of all the different trusses needed
  • The general overcharge of the roof compared to the floor footprint underneath
  • Location of ridges and valleys
Building cross-section(s) and truss details typically include:
  • All the different floor and ceiling heights
  • Dimensions and design of trusses
  • Dimensions and details of overhand
  • Roof pitch on all truss sections
Construction details typically include:
  • Roof sections
  • Sections of concrete wall with wood connection
  • Section of walls with particulars called out
  • Section of concrete porch and connection with wood frame
  • Foundation particulars in the garage entrance
  • Components of certain types of walls (ex: between garage and living quarters)
Typical wall sections typically include;
  • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
  • Note: This plan does not include an electrical layout.
