Full Specs & Features
Depth : 26'
Height : 27'
Width : 32' 3"
Basement : 710 sq/ft
Garage : 710 sq/ft
Upper Floor : 376 sq/ft

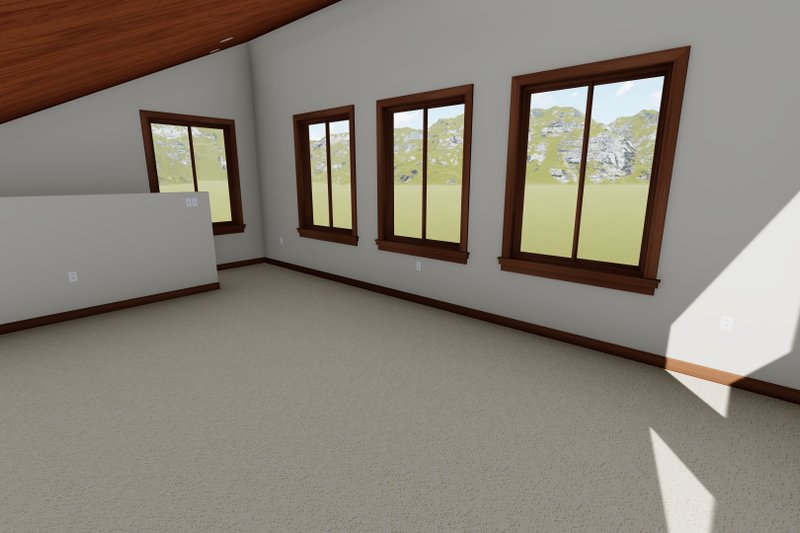

Ceiling Details : Vaulted Ceiling Upstairs Starts at 4' 7" Tall to 12' 9"
Garage Ceiling : 10'
Lower Ceiling : 9'
Upper Ceiling Ft : 12' 9"
Primary Pitch : 6/12
Roof Framing : Stick
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Stone Siding
Framing : 2 X 6
Additional Room Features
Hobby Rec Room Game Room
Front Entry Garage
Side Entry Garage
Suited For Sloping Lot
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

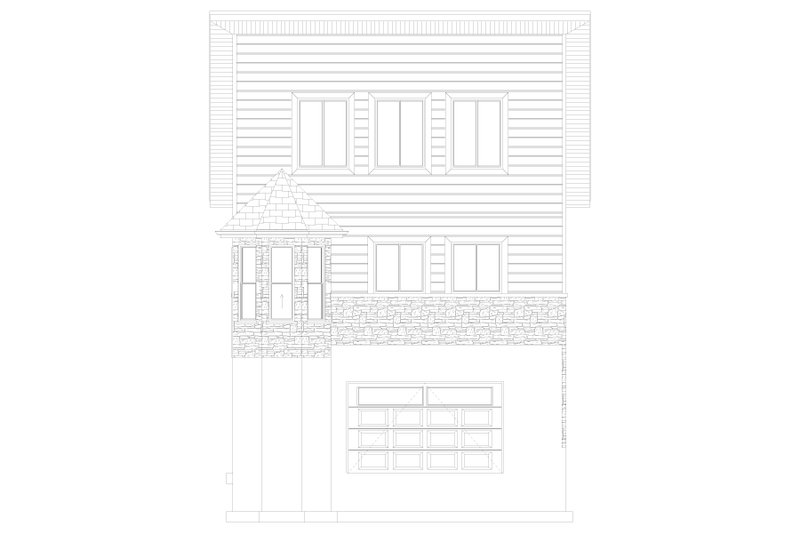

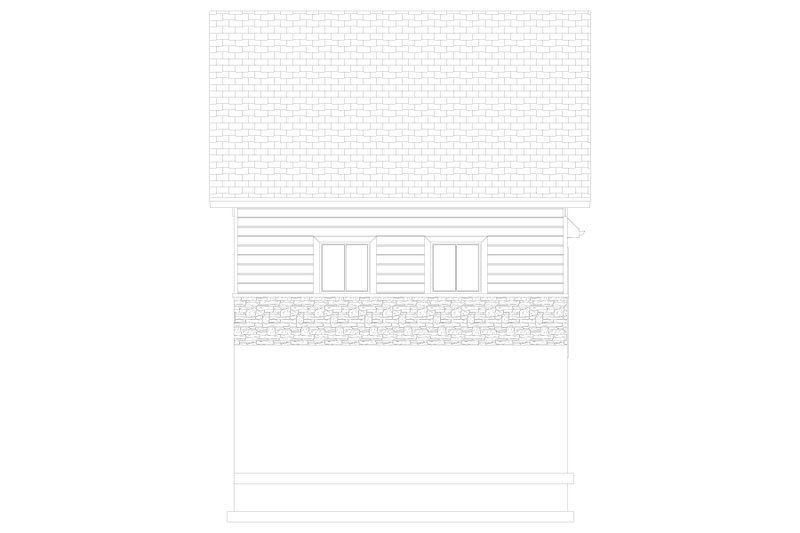

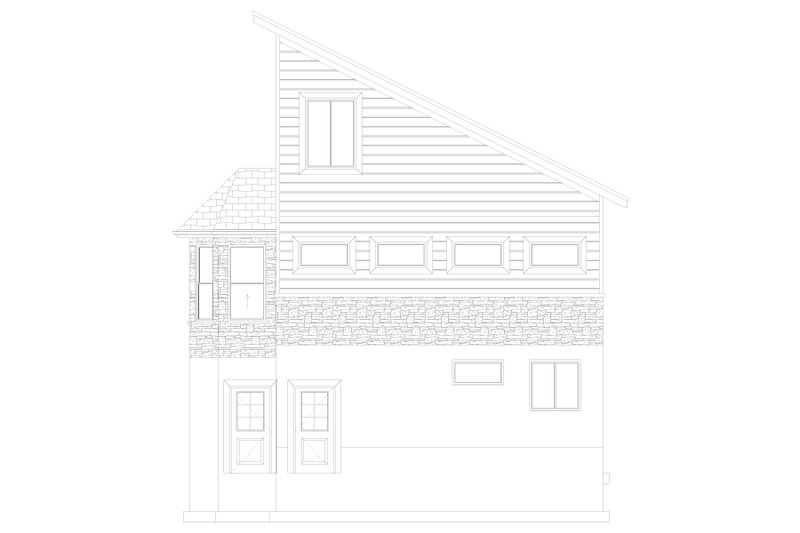

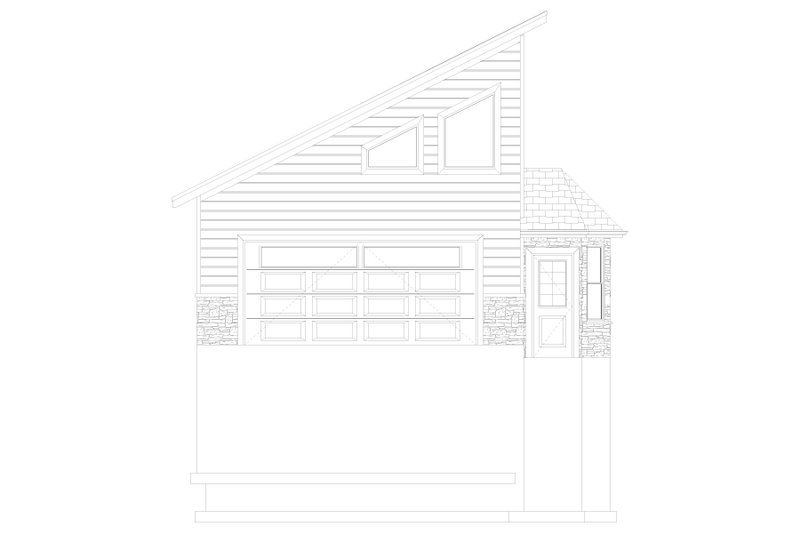

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

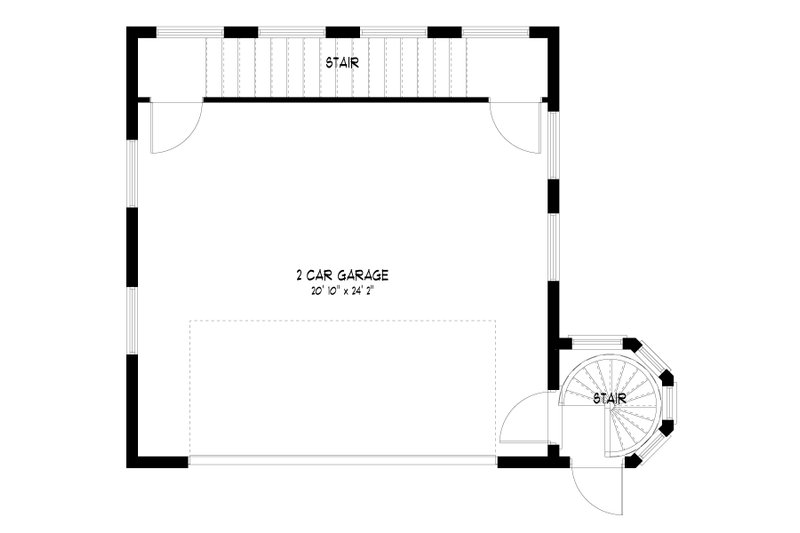

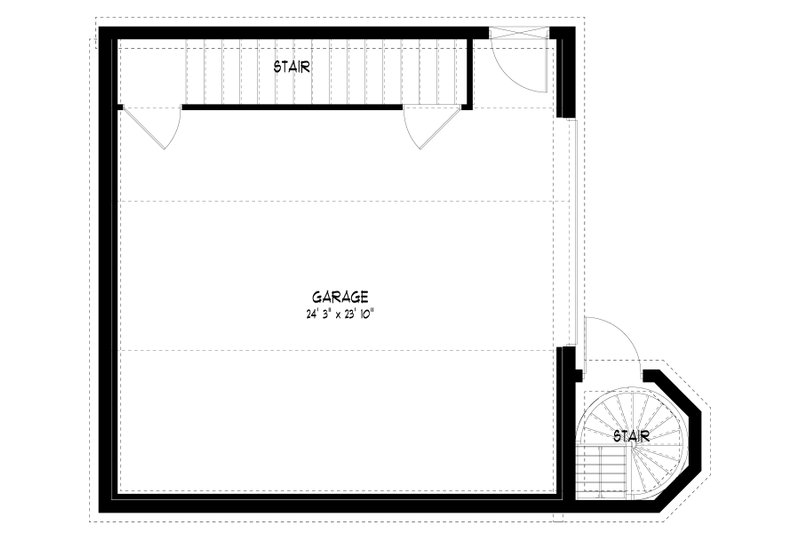

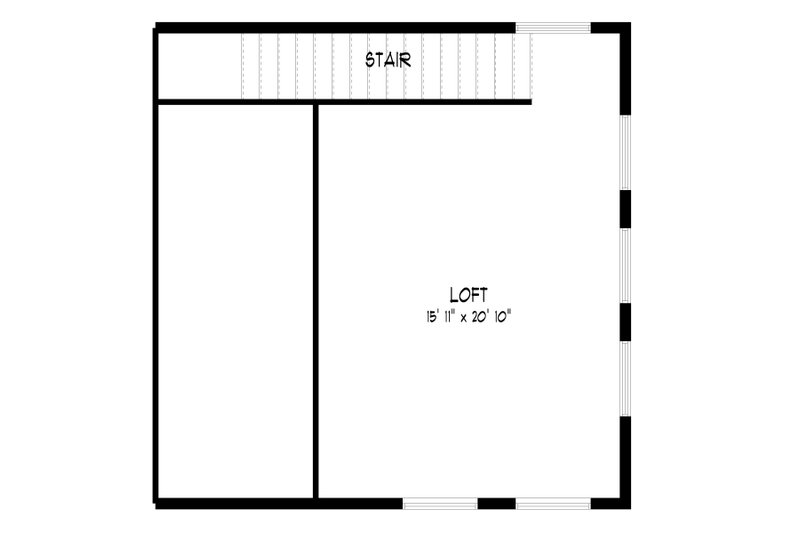

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
