Key Specs
1096
sq ft
2
Beds
1
Baths
1
Floors
1
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 23-1020
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

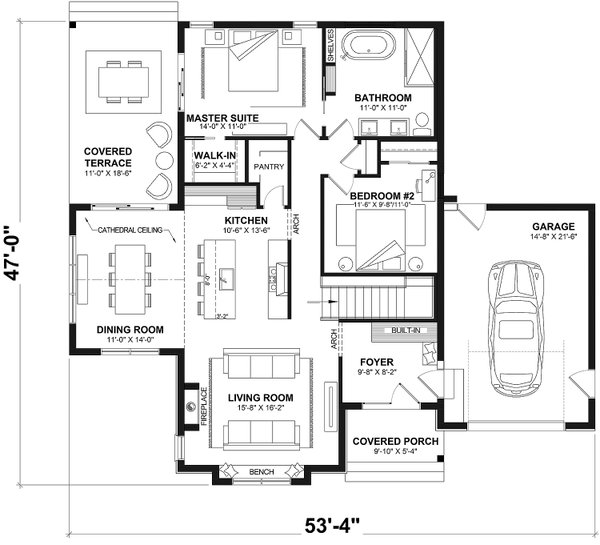

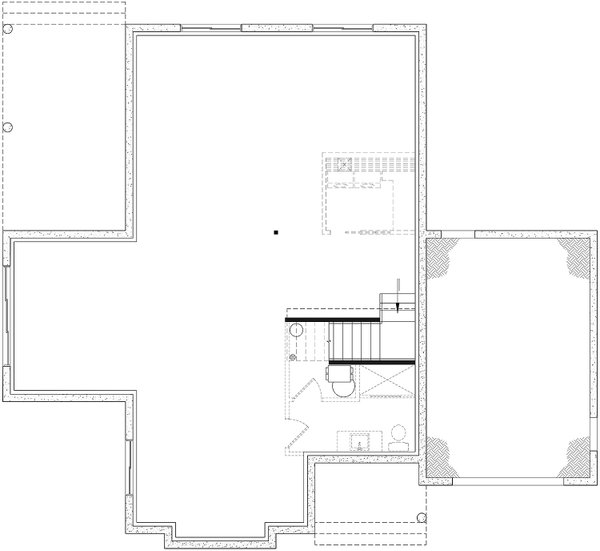

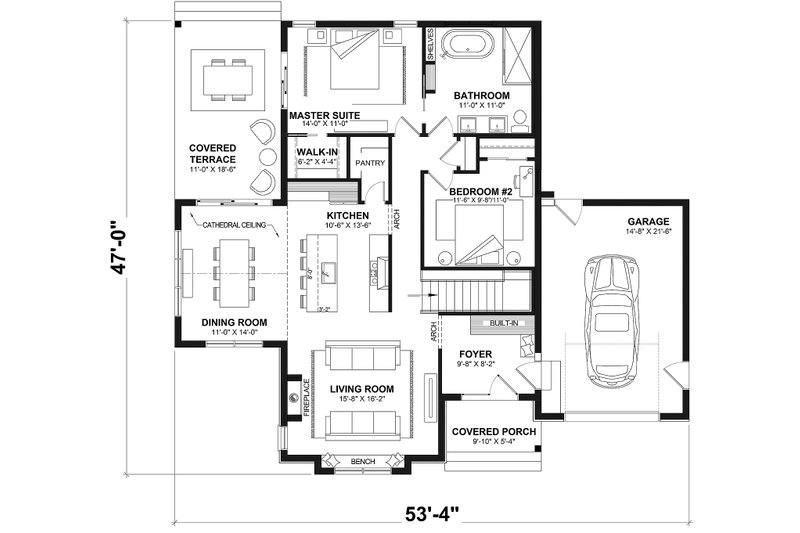

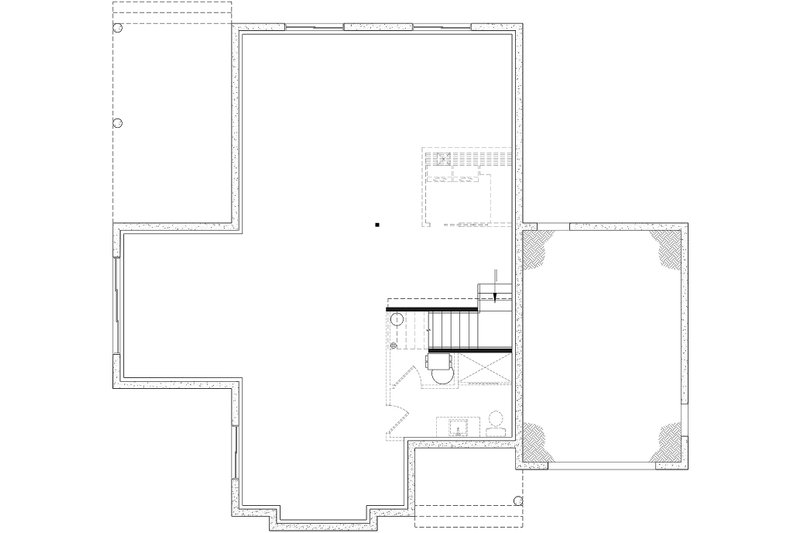

Floor Plans
Full Specs & Features
Dimension
Depth : 42'
Height : 19'
Width : 52' 8"
Area
First Floor: 1196 sq/ft height 8'
Garage: 338 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Family Room Keeping Room
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
135 sq/ft width 11' 4" x depth 12'
Bedroom 2 Closet:
13 sq/ft width 6' 8" x depth 2'
Bedroom 3 Closet:
13 sq/ft width 6' 8" x depth 2'
Dining Room:
102 sq/ft width 14' x depth 7' 4"
Garage:
302 sq/ft width 13' 4" x depth 22' 8"
Kitchen:
103 sq/ft width 10' 8" x depth 9' 8"
Living Room:
172 sq/ft width 15' 8" x depth 11'
Master Bathroom:
99 sq/ft width 10' 4" x depth 9' 8"
Master Bedroom:
156 sq/ft width 13' x depth 12'
Master Closet:
19 sq/ft width 9' 7" x depth 2'
Porch - Front:
43 sq/ft width 8' 4" x depth 5' 2"
What's Included In This Plan Set
This plan set typically contains:
Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings (mention of “typical” in most cases)
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures (we write siding, horizontal or vertical but not the company)
- Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
- All interior and exterior dimensions (included but not as a schedule)
- Location and sizes of doors and windows
- Indication of the structure above (second floor or roof)
- Indication of details that are available on other pages
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include HVAC, electrical and plumbing.
Plan Set
$1340.00
$1475.00
$2340.00
Foundation
$0.00
$425.00
$425.00
$425.00
Additional Options
$250.00
$65.00
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
