PLAN 60-1022
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

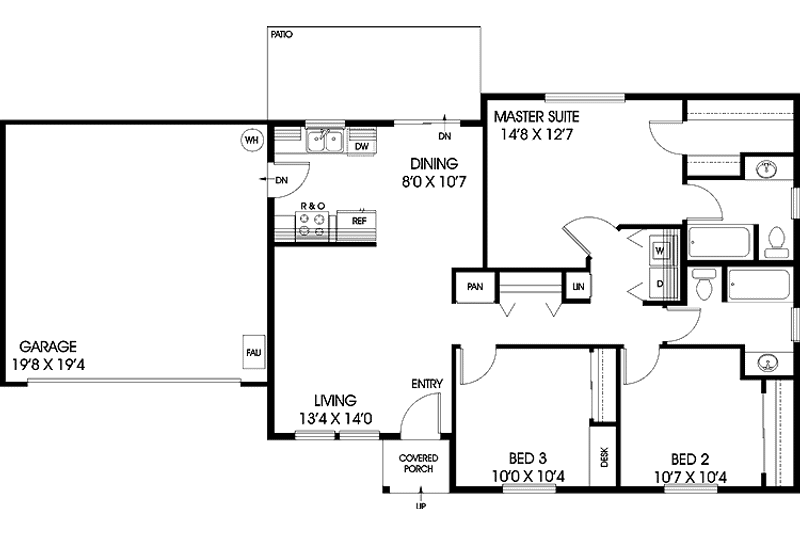

Floor Plans
Full Specs & Features
Dimension
Depth : 30'
Height : 18'
Width : 60'
Area
First Floor: 1101 sq/ft
Roof
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet
Additional Room Features
Open Floor Plan
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Bedroom 2:
109 sq/ft width 10' 7" x depth 10' 4"
Bedroom 3:
104 sq/ft width 10' 1" x depth 10' 4"
Dining Room:
84 sq/ft width 8' x depth 10' 7"
Garage:
380 sq/ft width 19' 8" x depth 19' 4"
Living Room:
186 sq/ft width 13' 4" x depth 14'
Master Bedroom:
184 sq/ft width 14' 8" x depth 12' 7"
What's Included In This Plan Set
- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
Plan Set
$750.00
$800.00
