This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Modify This Plan

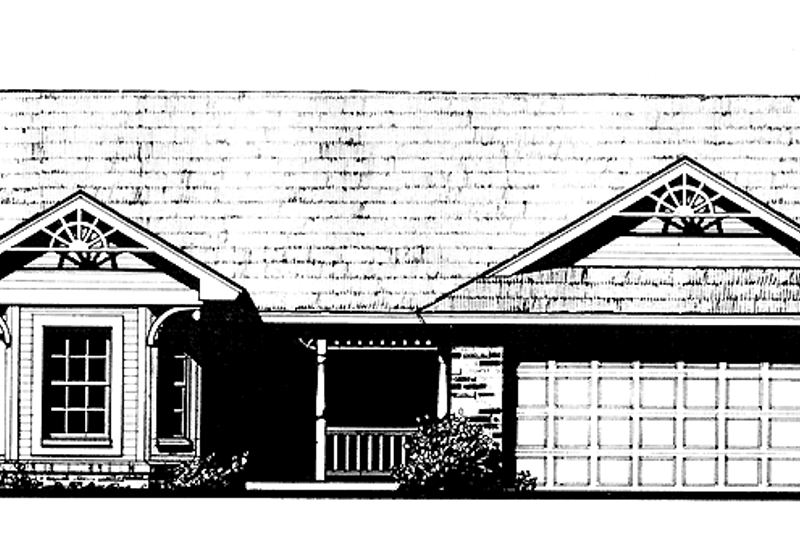

This plan is a very unique, cozy three-bedroom cottage distinguished by a lovely sunburst and multi-pane windows. The kitchen features a large box window that looks to the front of the plan with a soaring cathedral ceiling. The master bedroom is enhanced with a walk-in closet and full bath. Compact and efficient, this home provides several luxuries that make it charming as well as economical. Amenities in this home include a covered porch, patio and vaulted living room with a fireplace. Both elevations come with the blueprints.
Full Specs & Features
Depth : 49' 1"
Height : 16'
Width : 45'
First Floor: 1102 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence

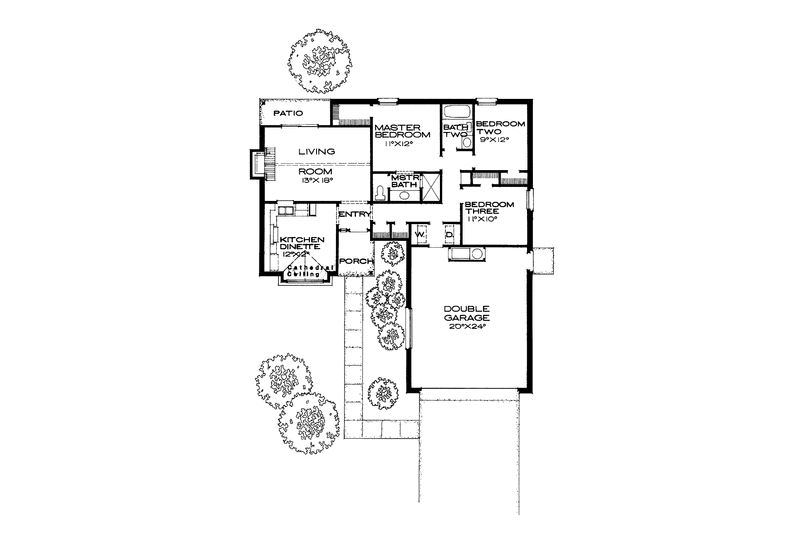

- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

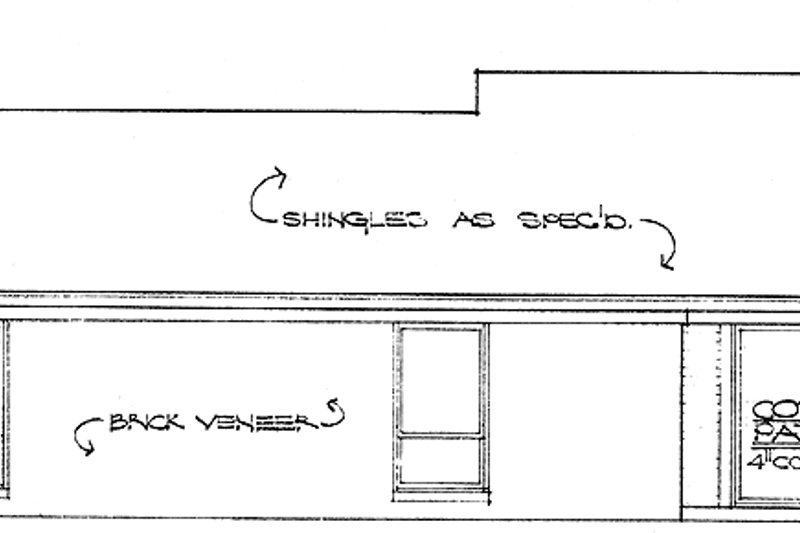

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
