Full Specs & Features
Depth : 34'
Height : 22'
Width : 24'

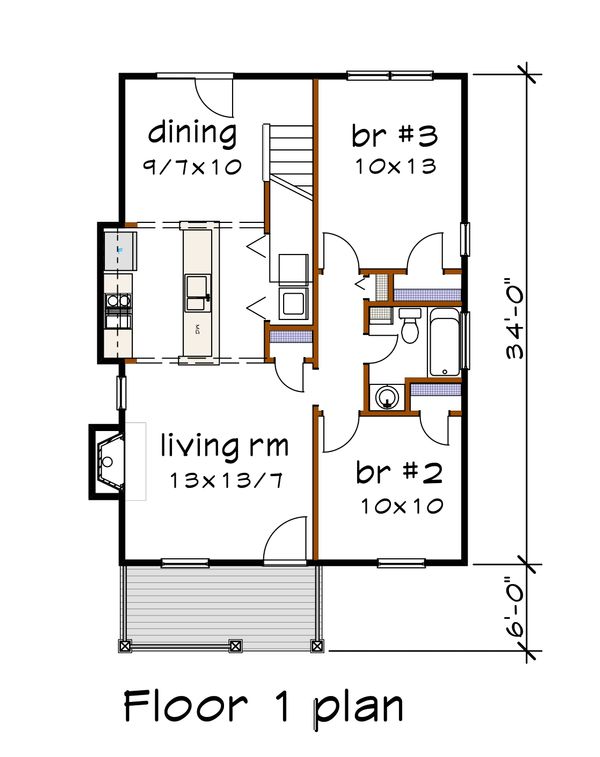

First Floor: 830 sq/ft height 8'

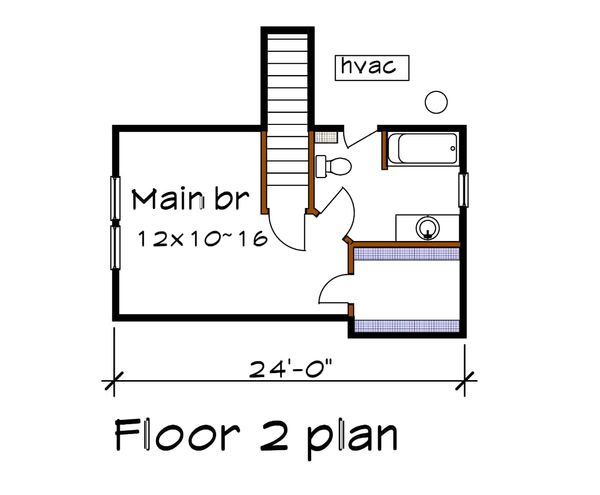

Second Floor: 317 sq/ft
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Upstairs Master Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Suited For Corner Lot
Suited For Narrow Lot
Covered Front Porch
What's Included In This Plan Set
- Cover sheet - General notes, structural notes, joist and rafter tables, abbreviations, and energy guidelines. Most plans have a rendering of the elevation.
- Foundation Plan - A crawl type foundation is standard, but an alternate slab foundation can be included. Some plans have a basement foundation available.
- Floor Plan(s) - Floor and roof plan(s) and showing all dimensions, joist/rafter directions, cabinets, window and door sizes, etc.
- Exterior Elevations - All elevations drawn at 1/4"=1'-0". Electrical Plans - All electrical located on separate drawings. Schedules - Door and window schedules.
- Building section(s) - Section through the building showing stairs, vertical dimensioning, and structural information.
- Details - Various details describing foundation, wall, column details, roof assemblies, porch and deck details... etc.
- Cabinet Elevations - Kitchen cabinet elevations @ 3/8"=1'-0" Roof Plan - Roof plan at 1/8"=1'-0"
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
