PLAN #17-2535

Key Specs


1169
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


A perfect starter home, the open floor plan, the vaulted ceiling of the Great Room, and the eat-at peninsula bar of the kitchen are conducive to quality family time. The Master Suite features a boxed ceiling and a large walk-in closet. And bedrooms 2 and 3 are at the front of the house with a bathroom in between.

Floor Plans


Floor Plan - Main Floor Plan

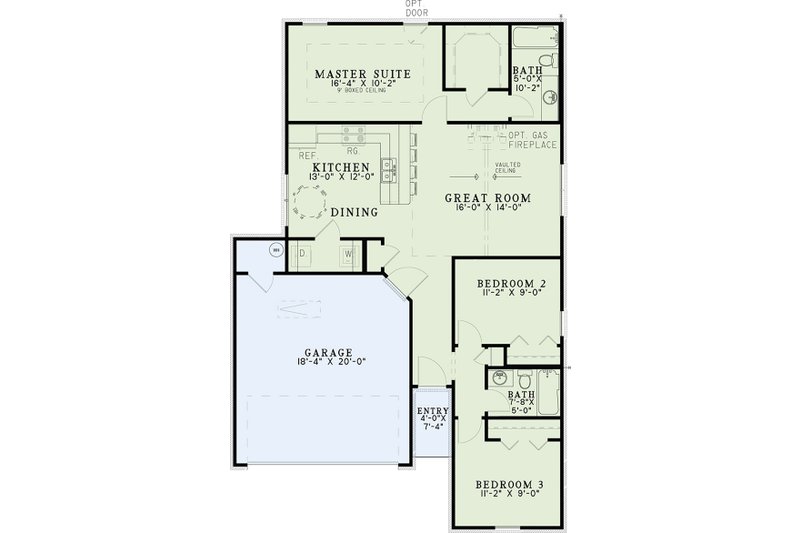

Cottage Floor Plan - Main Floor Plan Plan #17-2535

Full Specs & Features


Dimension
Depth : 53' 10"
Height : 19' 6"
Width : 35'
Area
First Floor: 1169 sq/ft height 8'
Garage: 400 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Roof Framing : Stick
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2x4
Rooms

Bath 2:

38 sq/ft width 7' 8" x depth 5'

Bedroom 2:

101 sq/ft width 11' 2" x depth 9'

Bedroom 3:

101 sq/ft width 11' 2" x depth 9'

Covered Front Porch:

30 sq/ft width 4' x depth 7' 4"

Garage:

400 sq/ft width 18' 4" x depth 20'

Great Room:

224 sq/ft width 16' x depth 14'

Kitchen:

156 sq/ft width 13' x depth 12'

Master Bath:

51 sq/ft width 5' x depth 10' 2"

Master Bedroom:

166 sq/ft width 16' 4" x depth 10' 2"

What's Included In This Plan Set


  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
