PLAN 58-109

Key Specs


1172
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

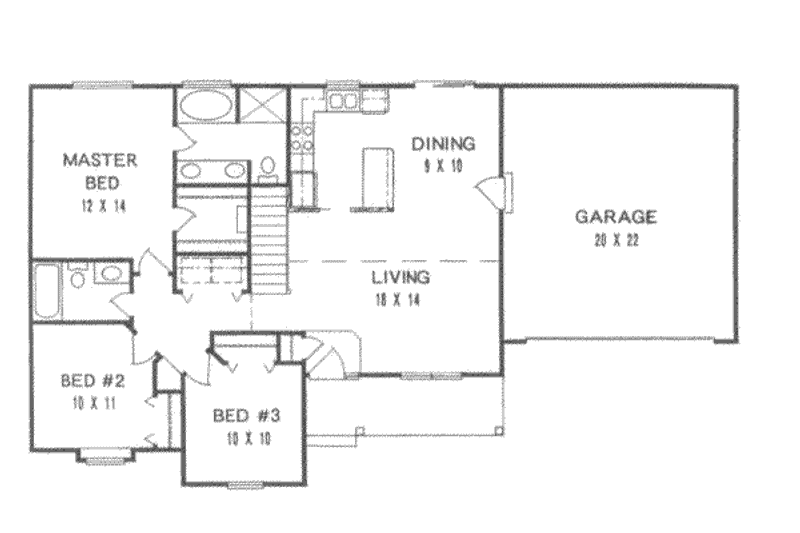

Floor Plan - Main Floor Plan
Reverse
Save Ranch Floor Plan - Main Floor Plan Plan #58-109

Full Specs & Features


Dimension
Depth : 34'
Height : 16'
Width : 60'
Area
Basement Unfinished: 1078 sq/ft height 8'
First Floor: 1172 sq/ft height 8'
Garage: 440 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Outdoor Spaces
Covered Front Porch
Rooms

Bedroom 2:

110 sq/ft width 10' x depth 11'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Dining Room:

90 sq/ft width 9' x depth 10'

Garage:

440 sq/ft width 20' x depth 22'

Living Room:

252 sq/ft width 18' x depth 14'

Master Suite:

168 sq/ft width 12' x depth 14'

What's Included In This Plan Set


See a sample plan set Each set of plans include:
  • 1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".
  • 1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.
  • 1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
  • Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
  • Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
  • Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
  • Building Cross Section - Complete front to back cross section with basic framing details.
» See important information before purchasing.

Plan Set

PDF Set :
$670.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$770.00
5 printed plan sets mailed to you.
Reproducible Set :
$770.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Right-Reading Reverse :
$100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.
