Full Specs & Features
Depth : 45'
Height : 27'
Width : 22'
First Floor: 779 sq/ft height 9'
Second Floor: 394 sq/ft height 8'
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle/Siding
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Additional Room Features
Main Floor Laundry
Open Floor Plan
Covered Front Porch
110 sq/ft width 10' x depth 11'
120 sq/ft width 10' x depth 12'
99 sq/ft width 9' x depth 11'
108 sq/ft width 9' x depth 12'
144 sq/ft width 12' x depth 12'
12 sq/ft width 1' x depth 12'
Porch - Front:
126 sq/ft width 18' x depth 7'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

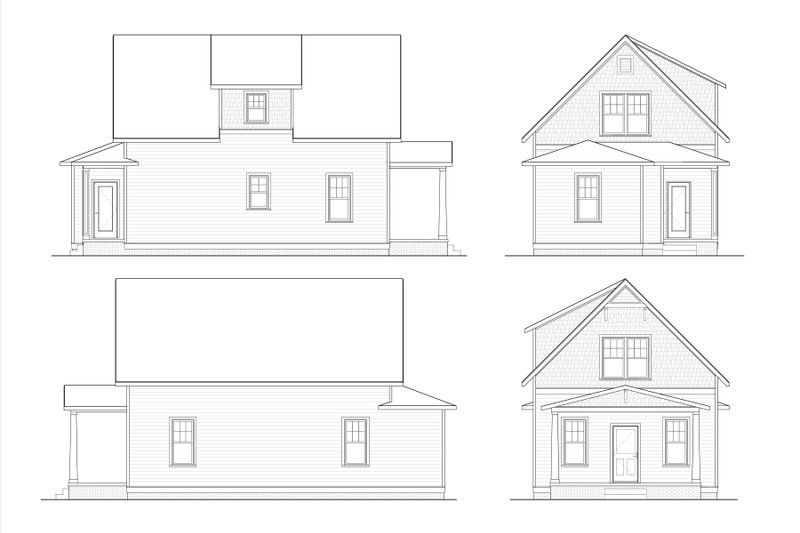

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

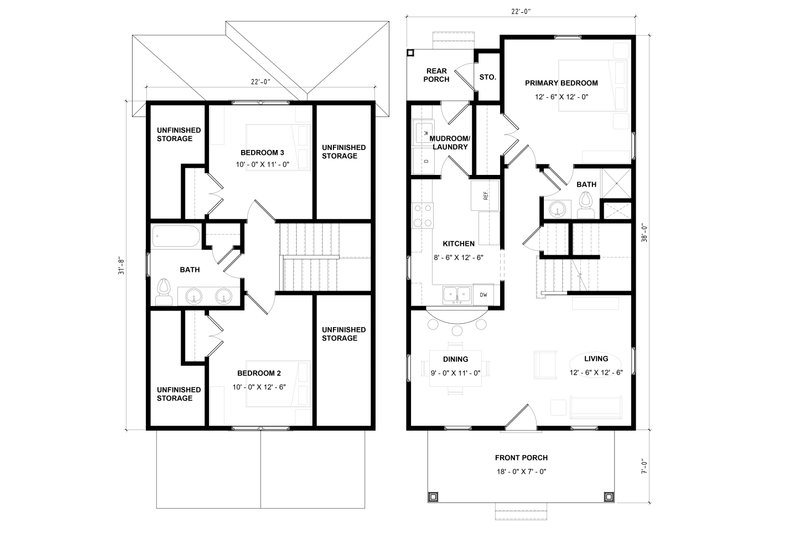

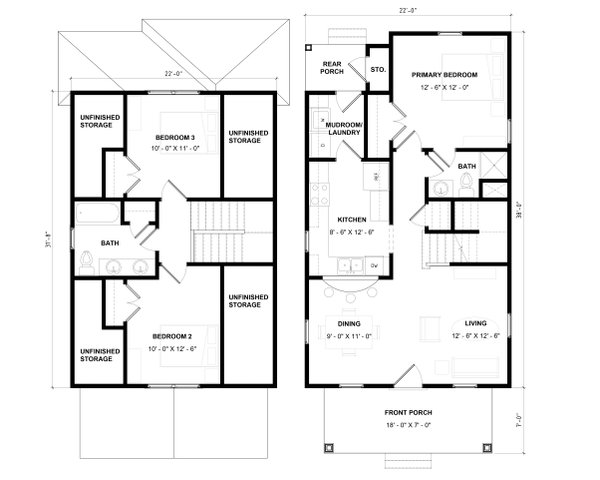

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
