PLAN #1060-3

ON SALE!

Photographs may show modified designs.

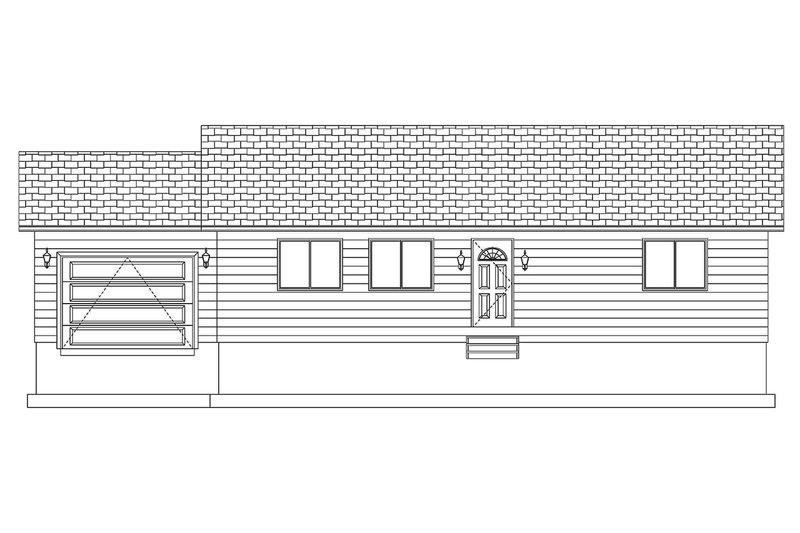

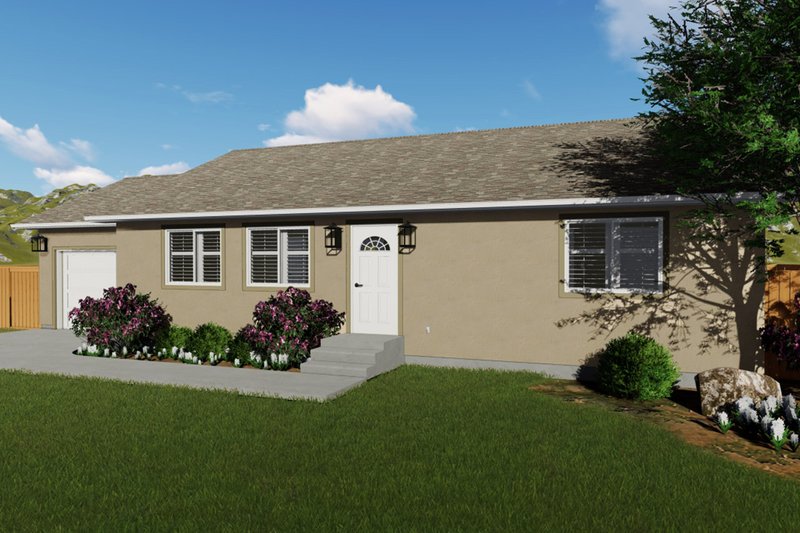

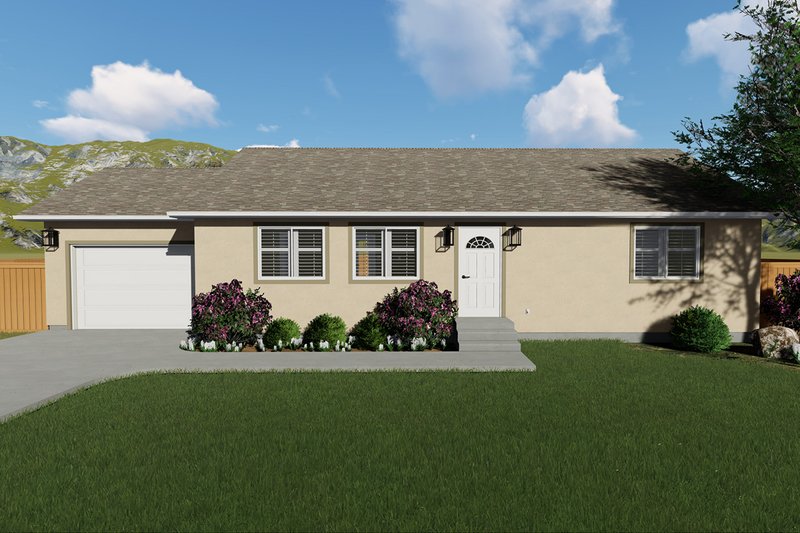

Ranch Exterior - Front Elevation Plan #1060-3

Select Plan Set Options

What's included?

	Additional Construction Sets $22.50/each
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Home Furniture Planner $17.10 This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Right-Reading Reverse $225.00 Choose this option to reverse your plans and to have the text and dimensions readable.

Subtotal

NOW $472.50

You save $52.50

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Or order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

Need an answer fast? Call us at 1-800-447-0027

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

We do our best to get back within 24 - 48 business hours.

Hours Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #1060-3

Key Specs

1190
sq ft

2
Beds

1
Baths

1
Floors

1
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

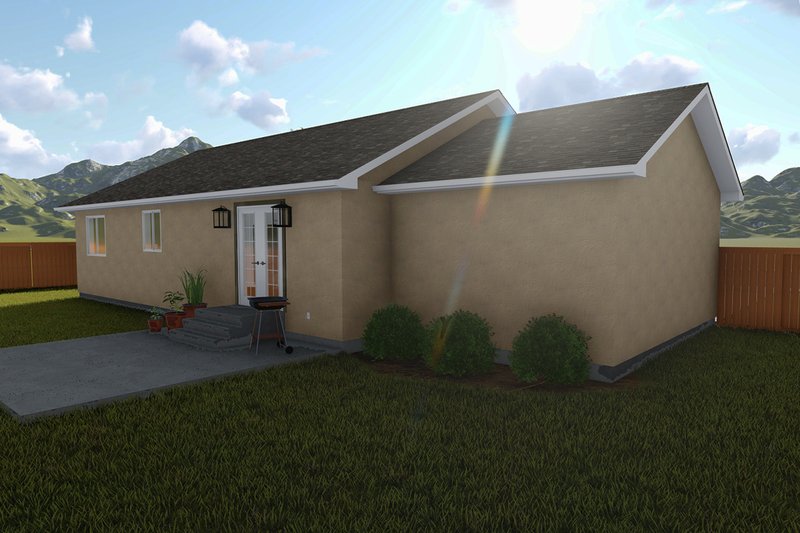

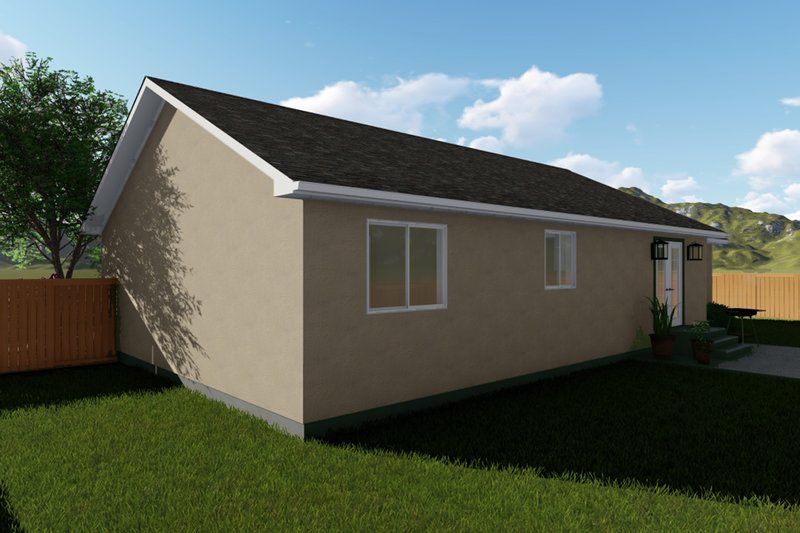

This ranch boasts many features that make it a good starter plan. A spacious family room opens to the kitchen and dining area and there is plenty storage with a large pantry and large closets in the bedrooms.

Floor Plans

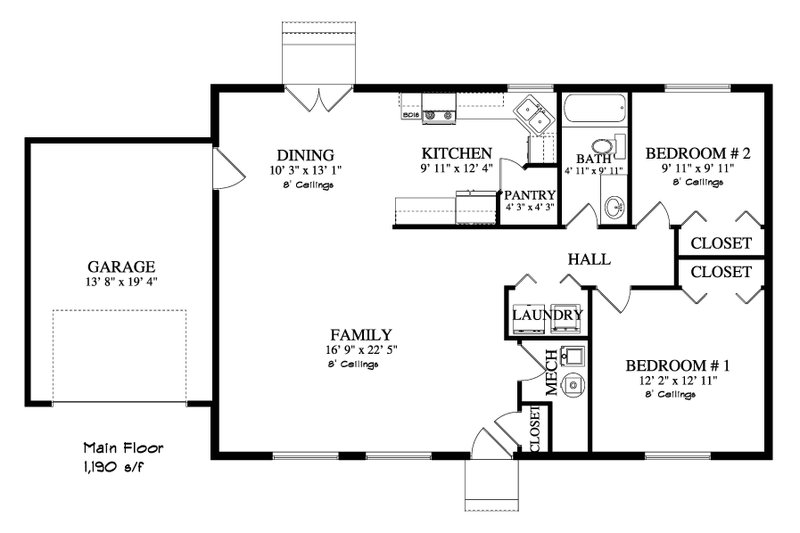

Floor Plan - Main Floor Plan

Full Specs & Features

Dimension

Depth : 28'
Height : 16' 8"
Width : 56'

Area

First Floor: 1190 sq/ft height 8'
Patio: 286 sq/ft

Roof

Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Main Floor Master Bedroom

Additional Room Features

Family Room Keeping Room
Main Floor Laundry
Open Floor Plan

Garage Features

Front Entry Garage

Rooms

Bath:

50 sq/ft width 5' x depth 10'

Bedroom 2:

100 sq/ft width 10' x depth 10'

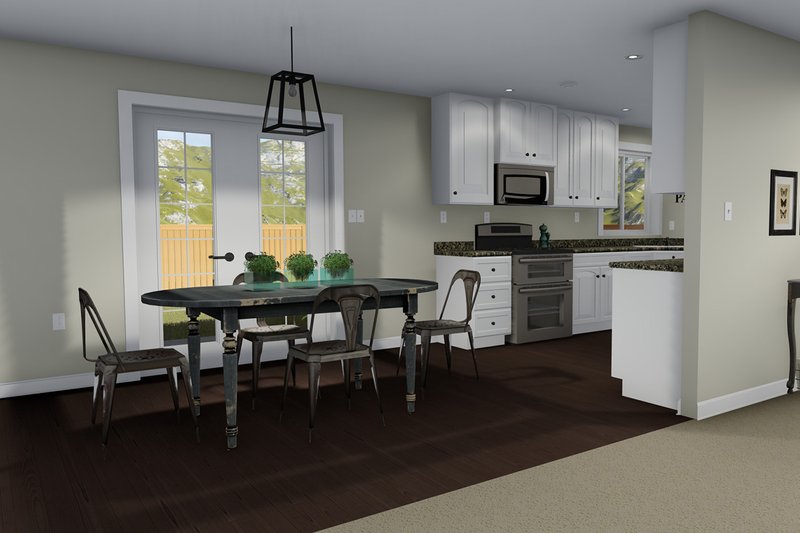

Dining Area:

135 sq/ft width 13' 5" x depth 10'

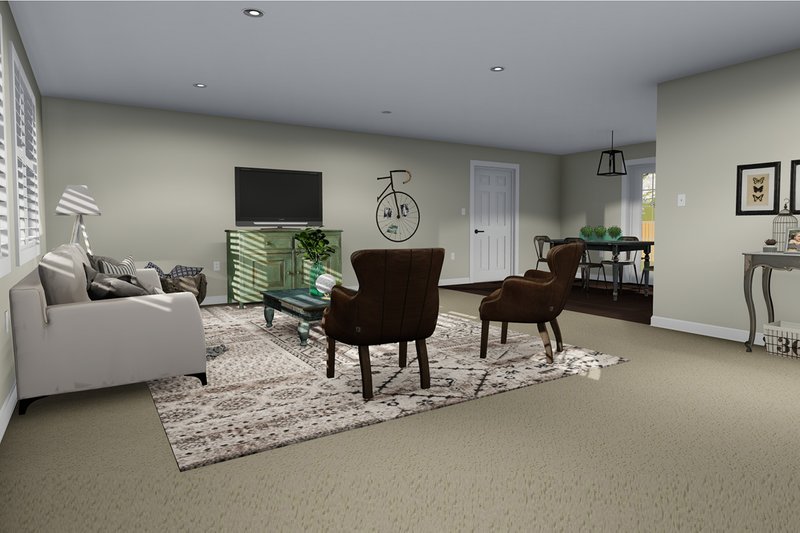

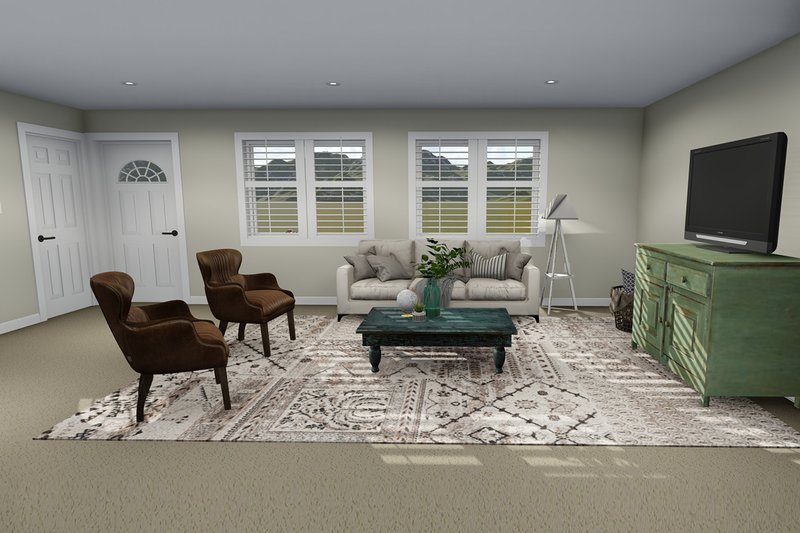

Family Room:

360 sq/ft width 22' 6" x depth 16'

Garage:

286 sq/ft width 13' 9" x depth 18' 5"

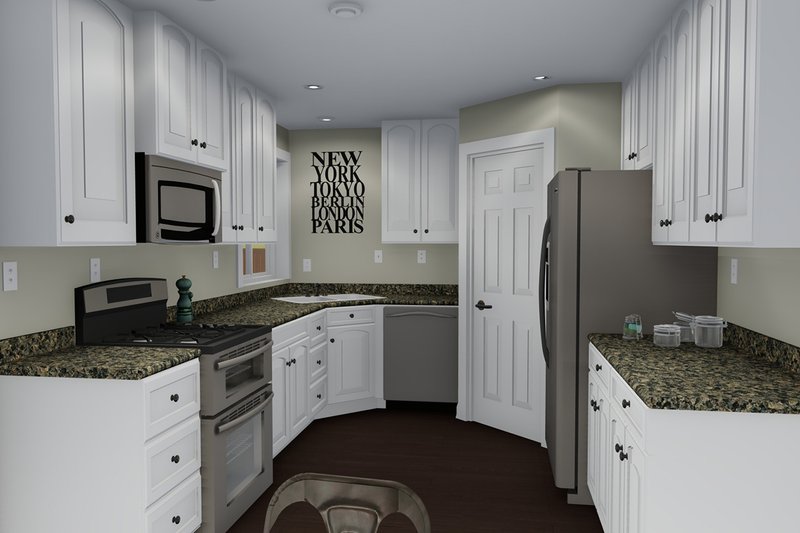

Kitchen:

125 sq/ft width 12' 3" x depth 10'

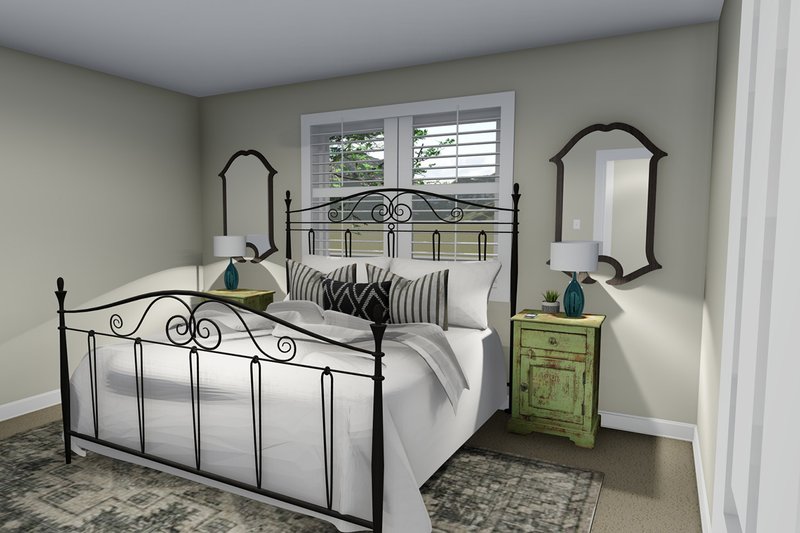

Master Bedroom:

159 sq/ft width 13' x depth 12' 3"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

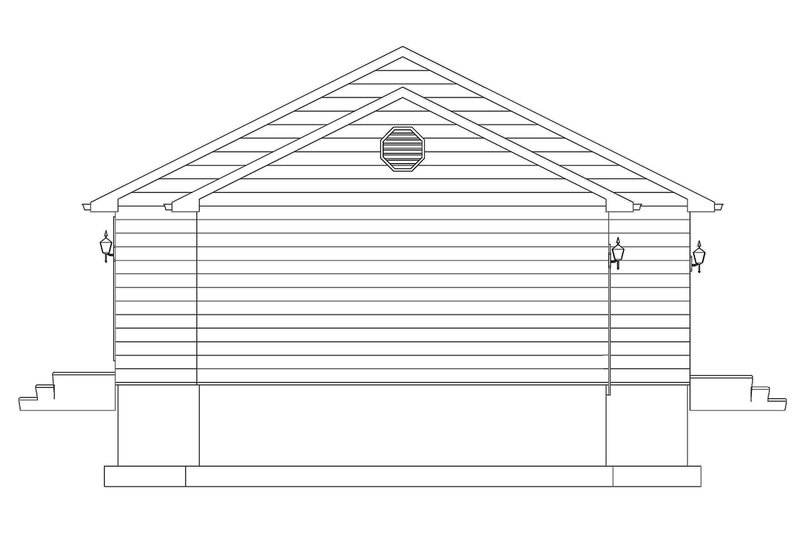

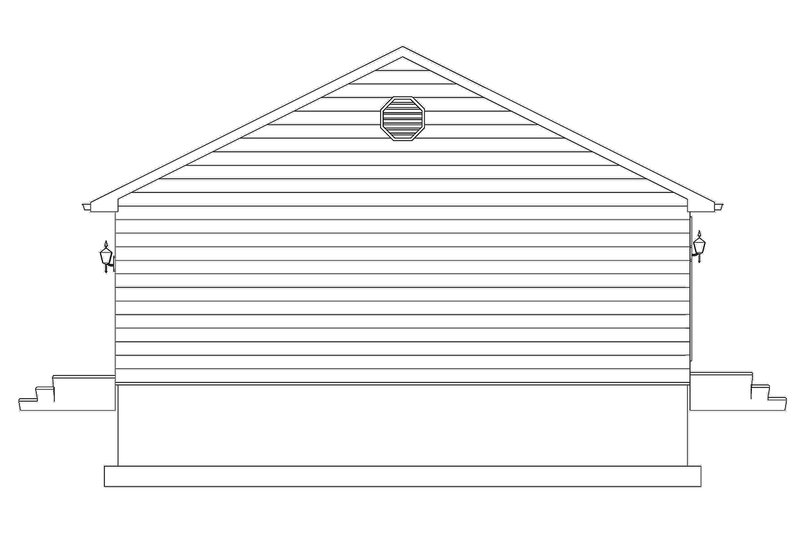

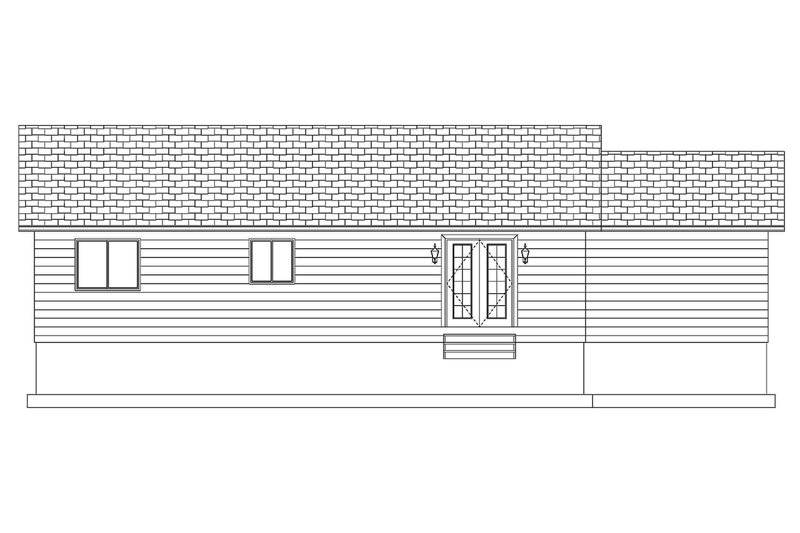

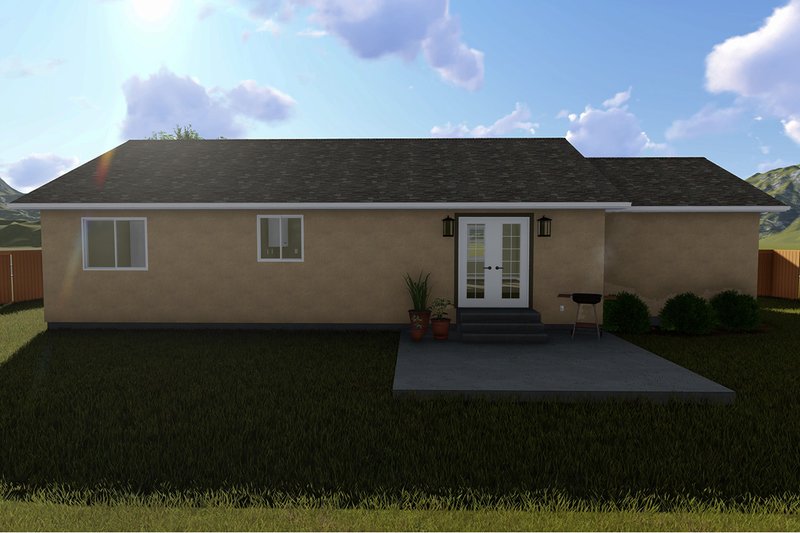

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Plan Set

5 Copy Set : $472.50	5 printed plan sets mailed to you.
8 Copy Set : $495.00	8 printed plan sets mailed to you.
PDF Set : $585.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $607.50	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $855.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set : $405.00	One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement: $225.00	Ideal for sloping lot, lower level of home partially underground.
Slab: $225.00	Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6: $0.00	Wood 2x6
Wood 2x4: $45.00	Wood 2x4

Additional Options

Additional Construction Sets : 22.50	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : 90.00	Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner : 17.10	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : 90.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Right-Reading Reverse : 225.00	Choose this option to reverse your plans and to have the text and dimensions readable.
