Full Specs & Features
Depth : 40'
Height : 28' 1"
Width : 38'
Garage : 267 sq/ft

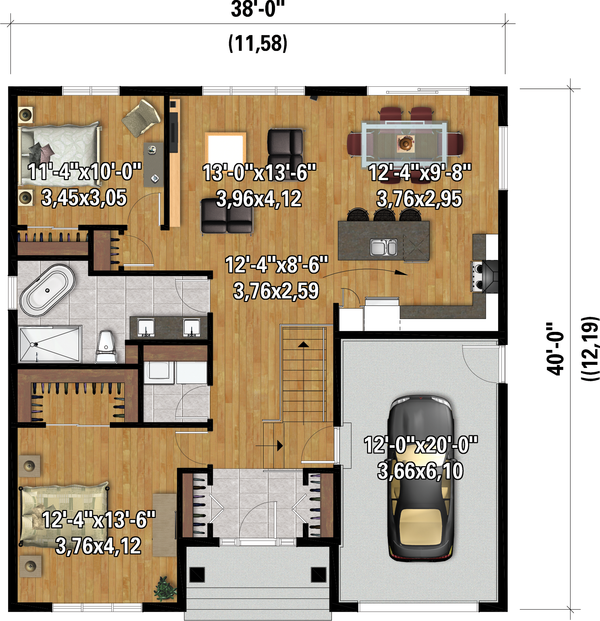

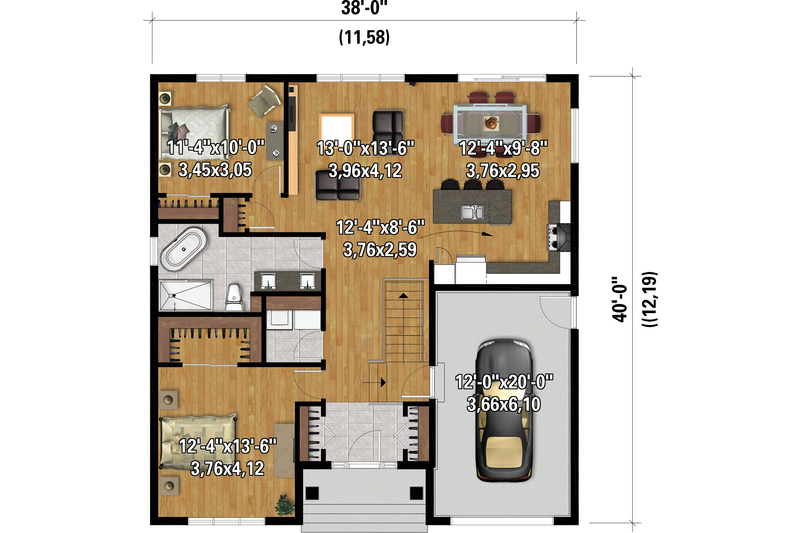

Main Floor : 1197 sq/ft
Main Ceiling : 8'
Primary Pitch : 8/12
Secondary Pitch : 12/12
What's Included In This Plan Set
- Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
- Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
- Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
Four detailed exterior elevations showing the final appearance of each side of the house.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
