PLAN 17-2546
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
A great starter home, this brick and shake siding home offers 3 bedrooms and 2 bathrooms. The Master Suite has a boxed ceiling and a large walk-in closet. The Great Room features a vaulted ceiling and is open to the kitchen and dining room.
Floor Plans

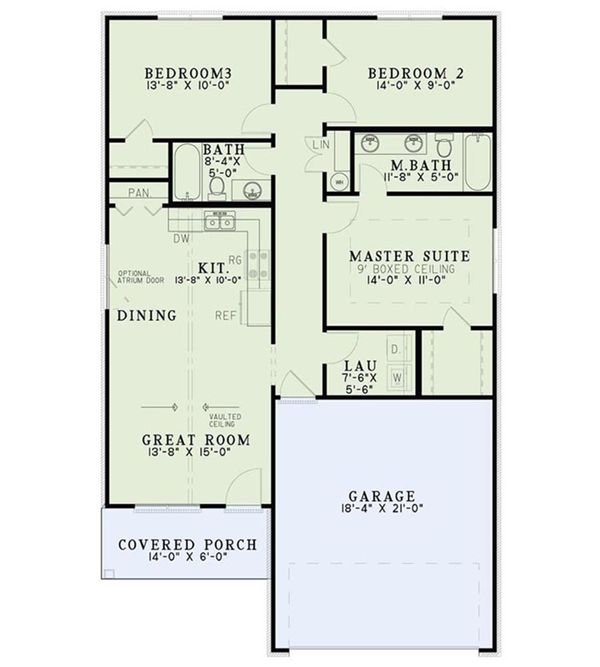

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 53' 8"
Height : 20'
Width : 33'
Area
First Floor: 1198 sq/ft height 8'
Garage: 403 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Stick
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Rooms
Bath 2:
42 sq/ft width 8' 4" x depth 5'
Bedroom 2:
126 sq/ft width 14' x depth 9'
Bedroom 3:
137 sq/ft width 13' 8" x depth 10'
Covered Front Porch:
84 sq/ft width 14' x depth 6'
Garage:
403 sq/ft width 18' 4" x depth 21'
Great Room:
205 sq/ft width 13' 8" x depth 15'
Kitchen:
137 sq/ft width 13' 8" x depth 10'
Laundry Room:
41 sq/ft width 7' 6" x depth 5' 6"
Master Bath:
58 sq/ft width 11' 8" x depth 5'
Master Bedroom:
154 sq/ft width 14' x depth 11'
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- Floor Plan(s): Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

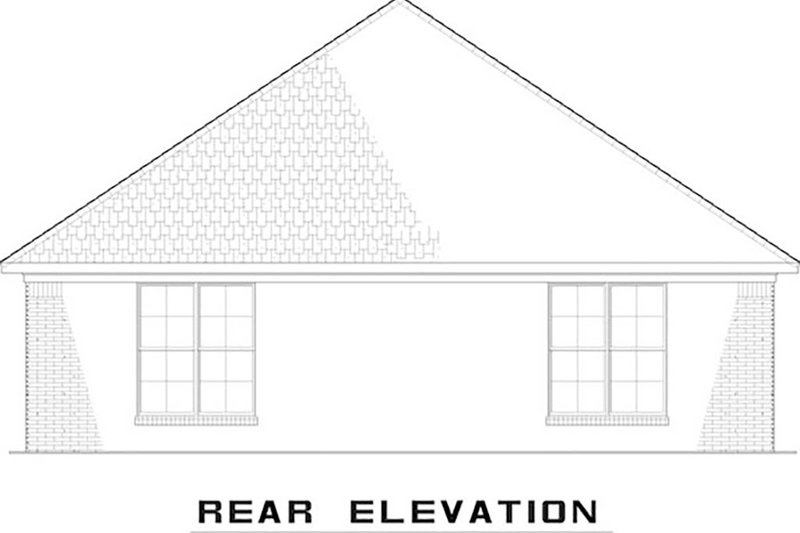

- Exterior Elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
