Plan Description

This home provides a great use of space, innovative features, and the
 popular split-bedroom floor plan. This design features a great room
 which opens directly into your dining room/breakfast area. From the
 dining, your family has easy access to the large patio, which can be
 easily built as covered or left open to enjoy the great outdoors.
 Looking for storage space? This home features large bedroom closets.

Floor Plans

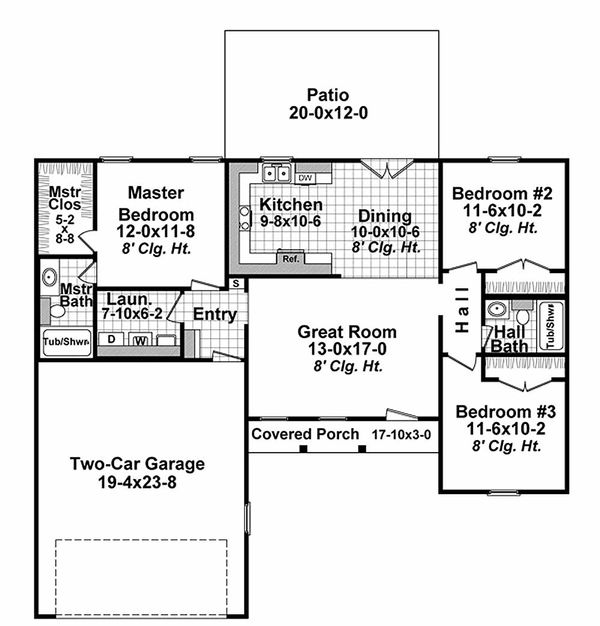

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #21-327

Full Specs & Features

Dimension Depth : 43'
Height : 15' 3"
Width : 50'
Area Garage : 595 sq/ft
Main Floor : 1200 sq/ft
Porch : 54 sq/ft
Ceiling Main Ceiling : 8'
Roof Primary Pitch : 6:12
Roof Type : Hip / Gable
Exterior Wall Framing Framing : 2"x4"
Bedroom Features Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Additional Room Features Bonus Play Flex Room
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Media Room
Garage Features Front Entry Garage
Lot Characteristics Suited For Corner Lot
Suited For View Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Wrap Around Porch
More Wheelchair Adaptable
Bedroom 2 116 sq/ft width 11' 6" x depth 10' 2"
Bedroom 3 116 sq/ft width 11' 6" x depth 10' 2"
Dining Room 105 sq/ft width 10' x depth 10' 6"
Garage 457 sq/ft width 19' 4" x depth 23' 8"
Great Room 221 sq/ft width 13' x depth 17'
Kitchen 101 sq/ft width 9' 8" x depth 10' 6"
Laundry Room 48 sq/ft width 7' 10" x depth 6' 2"
Master Bedroom 140 sq/ft width 12' x depth 11' 8"
Master Closet 44 sq/ft width 5' 2" x depth 8' 8"
Patio 240 sq/ft width 20' x depth 12'

What's Included In This Plan Set

  • Cover Sheet: Showing architectural rendering of residence
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
  • Foundation Plan and Details
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
