PLAN #58-223

Key Specs


1206
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

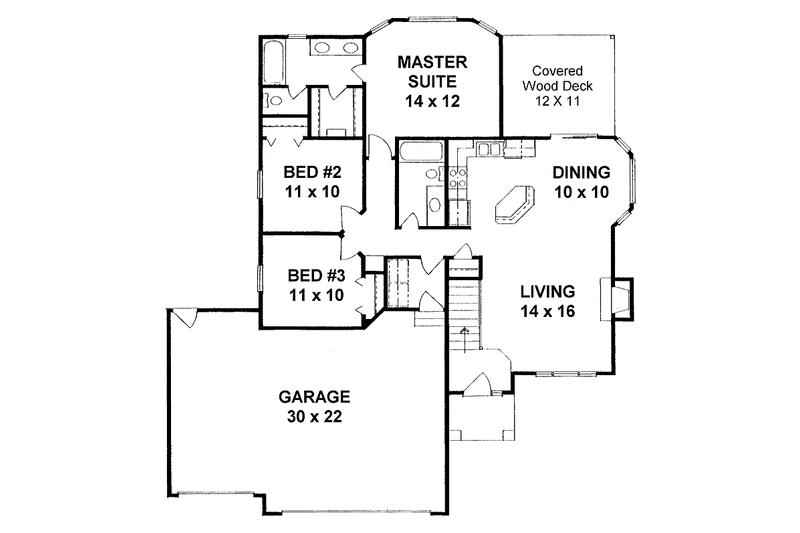

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #58-223

Full Specs & Features


Dimension
Depth : 54'
Height : 20'
Width : 50'
Area
Basement Unfinished: 1030 sq/ft height 8'
First Floor: 1206 sq/ft height 8'
Garage: 660 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 5:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Additional Room Features
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Deck
Rooms

Bedroom 2:

110 sq/ft width 11' x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Deck:

132 sq/ft width 12' x depth 11'

Dining Room:

100 sq/ft width 10' x depth 10'

Garage:

660 sq/ft width 30' x depth 22'

Living Room:

224 sq/ft width 14' x depth 16'

Master Suite:

168 sq/ft width 14' x depth 12'

What's Included In This Plan Set


Each set of plans include:
  • 1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".
  • 1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.

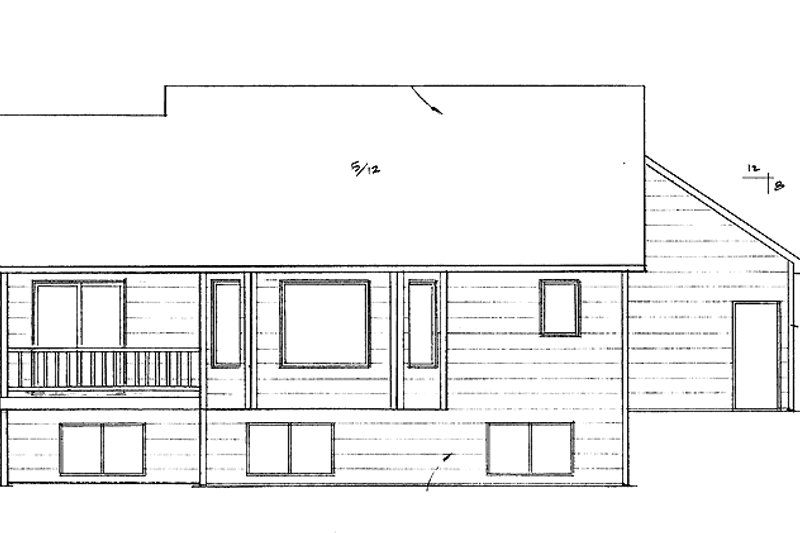

  • 1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
  • Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
  • Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
  • Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
  • Building Cross Section - Complete front to back cross section with basic framing details.
