Full Specs & Features
Depth : 48'
Height : 27'
Width : 48'

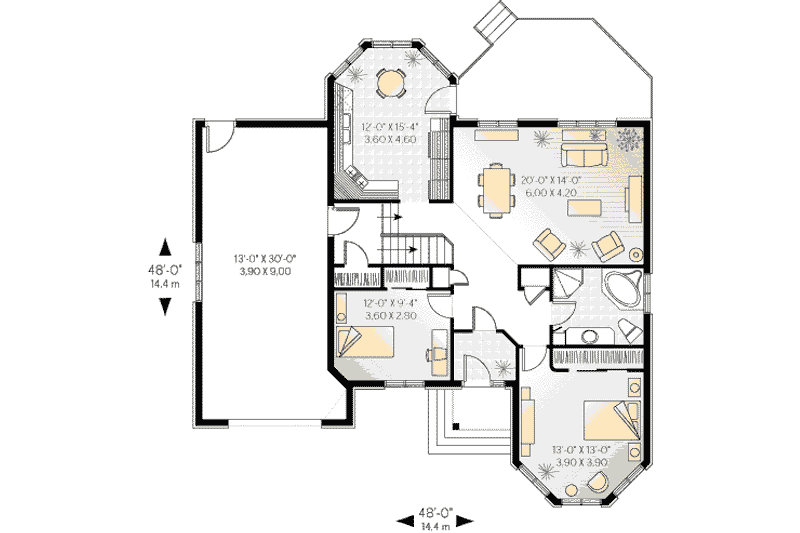

First Floor: 1207 sq/ft height 9'
Main Ceiling : 9'
Primary Pitch : 12:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x6"
Suited For Narrow Lot
Suited For View Lot
111 sq/ft width 12' x depth 9' 4"
Bedroom 2 Closet:
9 sq/ft width 4' 8" x depth 2'
Bedroom 3 Closet:
9 sq/ft width 4' 8" x depth 2'
180 sq/ft width 18' x depth 10'
280 sq/ft width 20' x depth 14'
33 sq/ft width 6' 8" x depth 5'
390 sq/ft width 13' x depth 30'
9 sq/ft width 4' 10" x depth 2'
183 sq/ft width 12' x depth 15' 4"
77 sq/ft width 9' 8" x depth 8'
169 sq/ft width 13' x depth 13'
18 sq/ft width 9' x depth 2'
Porch - Front:
24 sq/ft width 6' x depth 4'
What's Included In This Plan Set
Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings (mention of “typical” in most cases)
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures (we write siding, horizontal or vertical but not the company)
- Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
- All interior and exterior dimensions (included but not as a schedule)
- Location and sizes of doors and windows
- Indication of the structure above (second floor or roof)
- Indication of details that are available on other pages
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include HVAC, electrical and plumbing.
