This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Modify This Plan
Full Specs & Features
Depth : 60'
Height : 19'
Width : 46'
Basement Unfinished: 1254 sq/ft height 8'

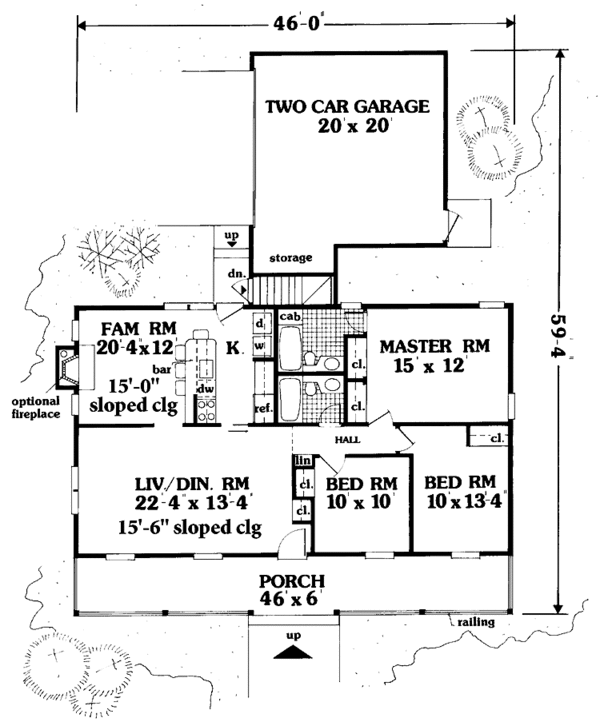

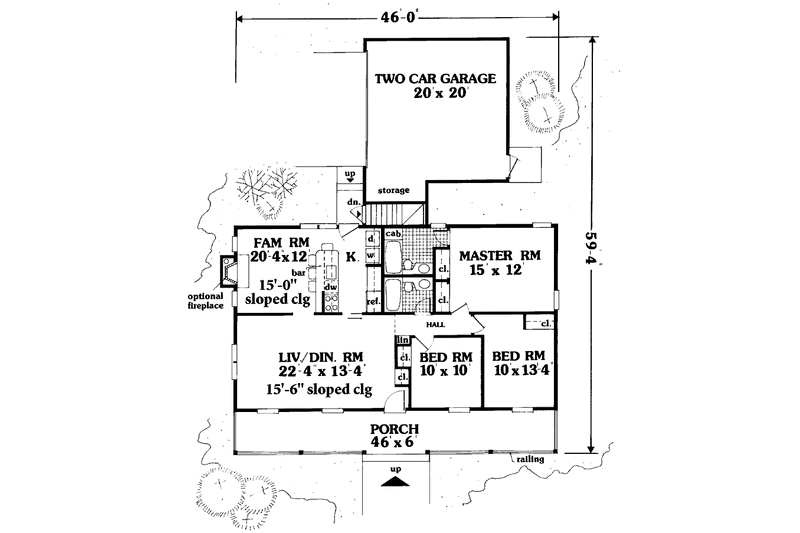

First Floor: 1226 sq/ft height 8'
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6 Wood - 2x4
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Covered Front Porch
What's Included In This Plan Set
- Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.
- Foundation Plans: include drawings for a standard, daylight or partial basement, crawlspace, pole, pier, or slab foundation. All necessary notations and dimensions are included.
- Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item.
- Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a separate diagram.
- Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
- Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.
- General Specifications: provide general instructions and information regarding structure, excavating and grading, masonry and concrete work, carpentry and wood, thermal and moisture protection, and specifications about drywall, tile, flooring, glazing, caulking and sealants.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
