Key Specs
1236
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 310-1216
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 54' 4"
Height : 17'
Width : 45'
Area
First Floor: 1236 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Additional Room Features
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Covered Front Porch

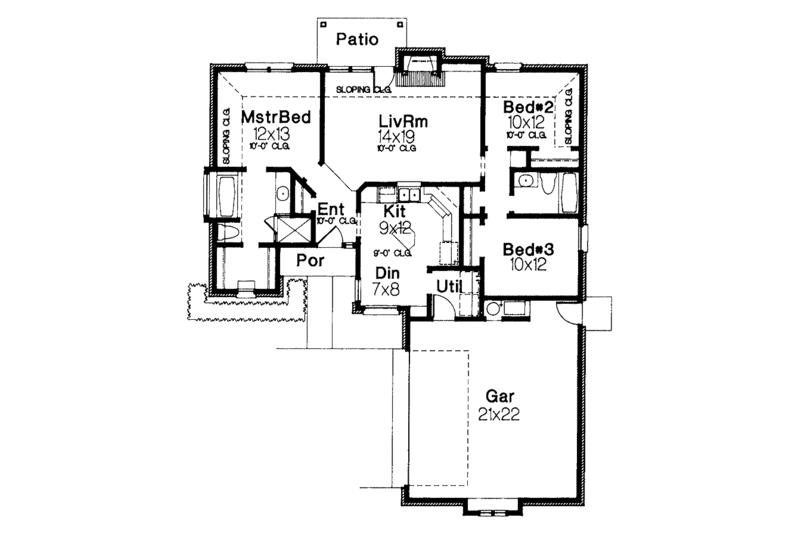

Rooms
Bedroom 2:
120 sq/ft width 10' x depth 12'
Bedroom 3:
120 sq/ft width 10' x depth 12'
Dining Room:
56 sq/ft width 7' x depth 8'
Garage:
462 sq/ft width 21' x depth 22'
Kitchen:
108 sq/ft width 9' x depth 12'
Living Room:
266 sq/ft width 14' x depth 19'
Master Bedroom:
156 sq/ft width 12' x depth 13'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Plan Set
$845.00
$985.00
$1135.00
$1135.00
$790.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$50.00
$100.00
$39.00
$65.00
