PLAN #84-659

Key Specs


1245
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Large living on a narrow lot. Economical plan is spacious with living, kitchen and dining area open. Walk-thru utility room accesses the garage. 2 bedrooms plus a master share a hall in the back. The classy, but budget elevation features brick on the front.

Floor Plans

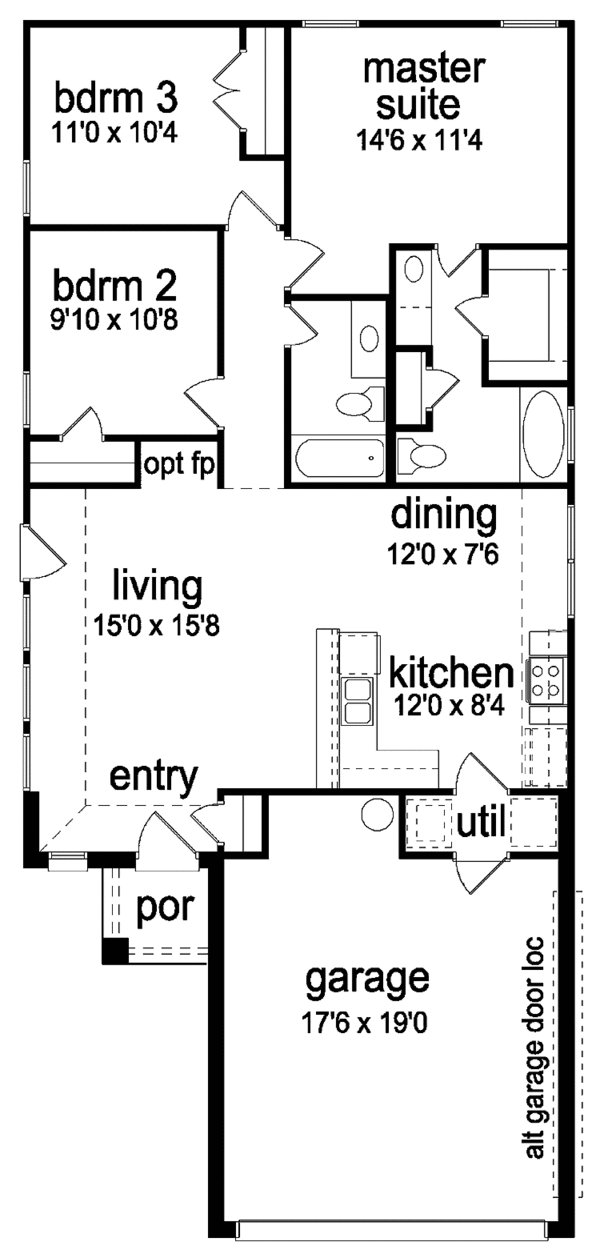

Floor Plan - Main Floor Plan

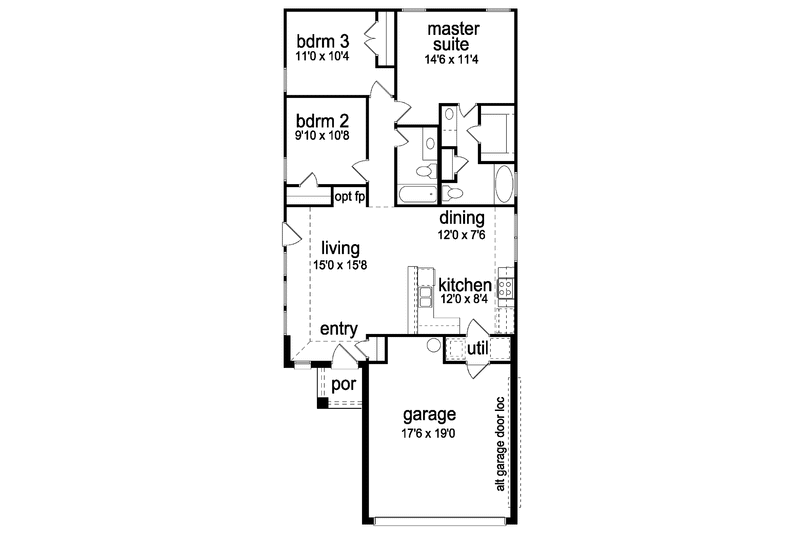

Ranch Floor Plan - Main Floor Plan Plan #84-659

Full Specs & Features


Dimension
Depth : 63' 8"
Height : 14'
Width : 28' 10"
Area
First Floor: 1245 sq/ft height 8'
Garage: 403 sq/ft height 8'
Porch: 28 sq/ft
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Fireplace
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Garage Features
Side Entry Garage
Rooms

Bedroom 2:

104 sq/ft width 9' 10" x depth 10' 8"

Bedroom 3:

113 sq/ft width 11' x depth 10' 4"

Dining Room:

90 sq/ft width 12' x depth 7' 6"

Garage:

332 sq/ft width 17' 6" x depth 19'

Kitchen:

99 sq/ft width 12' x depth 8' 4"

Living Room:

235 sq/ft width 15' x depth 15' 8"

Master Bedroom:

164 sq/ft width 14' 6" x depth 11' 4"

What's Included In This Plan Set


  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

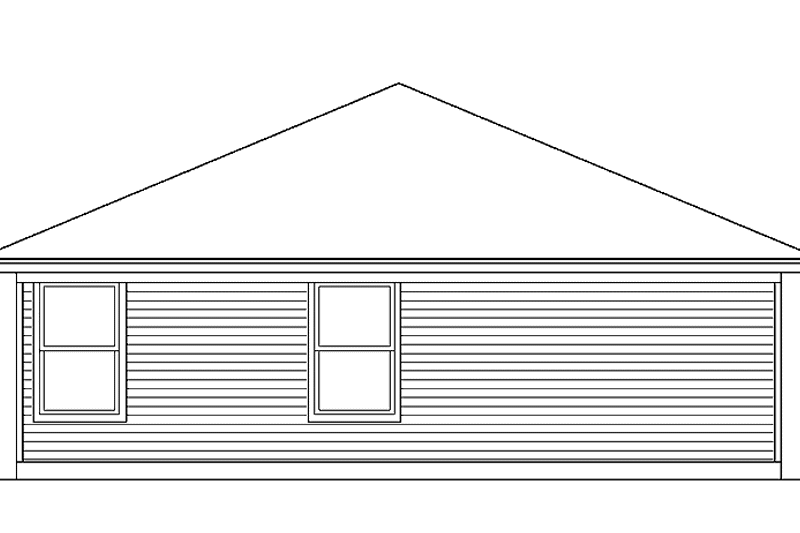

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.

Plan Set

PDF Set :
$675.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$720.00
5 printed plan sets mailed to you.
8 Copy Set :
$810.00
8 printed plan sets mailed to you.
Reproducible Set :
$810.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1260.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$562.50
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Right-Reading Reverse :
180.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
67.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
