PLAN 430-39
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 59' 10"
Height : 17'
Width : 29' 6"
Area
First Floor: 1250 sq/ft height 8'
Garage: 315 sq/ft
Ceiling
Garage Ceiling : 8'
Main Ceiling : 8'
Roof
Primary Pitch : 7:12
Roof Framing : stick
Roof Type : hip
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Insulation : 13
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room

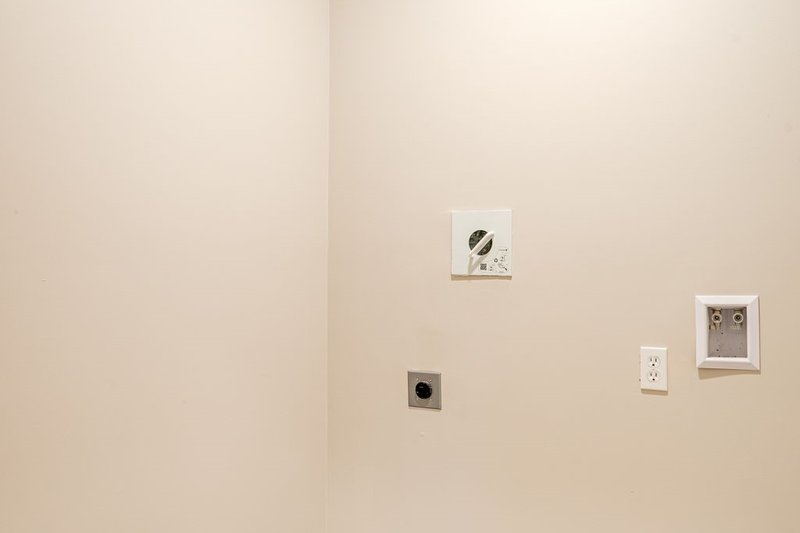

Main Floor Laundry
Storage Area
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Zero Lot Lines
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Empty Nester
Suited For Vacation Home
Code Compliance
Irc 2003
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Rooms
Bedroom 2:
width 11' x depth 11'
Bedroom 3:
width 11' x depth 11'
Covered Front Porch:
68 sq/ft width 15' 2" x depth 4' 6"
Covered Rear Porch:
70 sq/ft width 14' x depth 5'
Garage:
315 sq/ft width 13' 8" x depth 22'
Kitchen/ Dining Area:
width 14' 10" x depth 11'
Living Room:
width 14' 10" x depth 15' 4"
Master Closet:
width 7' 6" x depth 6'
Master Bath:
width 8' 2" x depth 8' 4"
Master Bedroom:
width 13' 8" x depth 12' 6"
What's Included In This Plan Set
- Cover Sheet: Drawing index, designer contact info, plan name/number, legal disclaimers.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

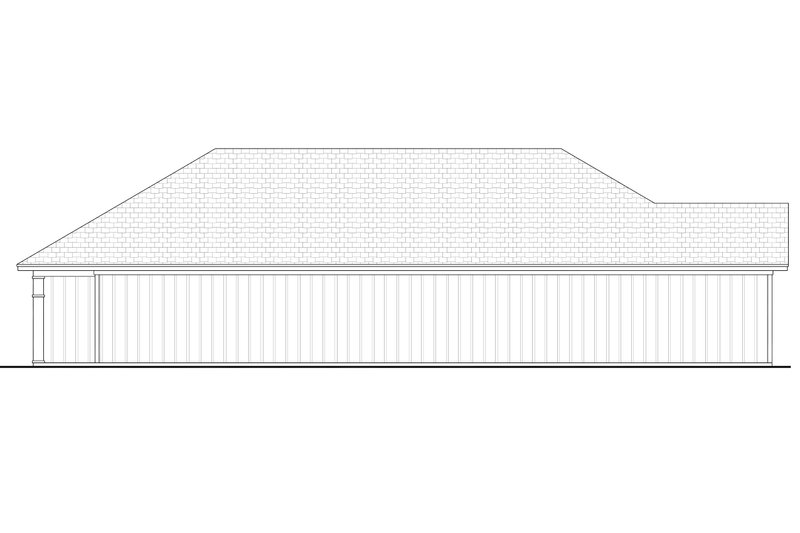

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements like built-ins.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Stair Detail(s): Drawings showing stair details.
*Material List Note: When a material list is ordered, a list of the materials needed to build this plan will be sent. Please note that the materials list will conform to the standard plan (slab or crawlspace only). Additional options such as a Basement or 2x6 Wall conversion will not be reflected in the material list. Please call for details.
Note about 2x6 Wall Option: If choosing the 2x6 wall option, the added stud depth will be applied towards the interior of the walls.
Plan Set
$1100.75
$1313.25
$1695.75
$1908.25
$2035.75
Foundation
$0.00
$85.00
$335.75
Framing
$0.00
$276.25
Additional Options
$191.25
$85.00
$420.75
$140.25
$33.15
$212.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
