Full Specs & Features
Depth : 26'
Height : 35'
Width : 48'

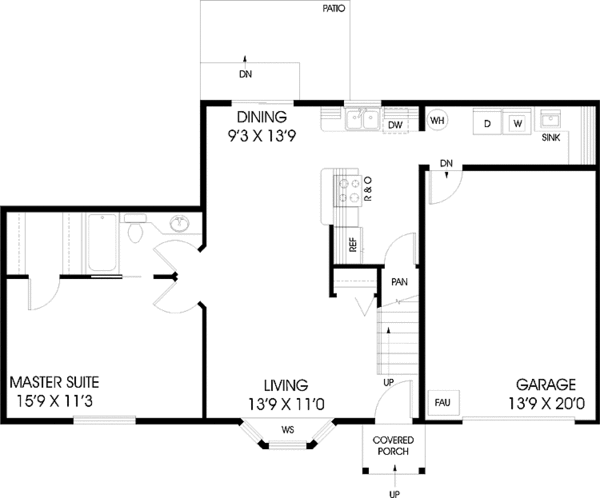

First Floor: 822 sq/ft

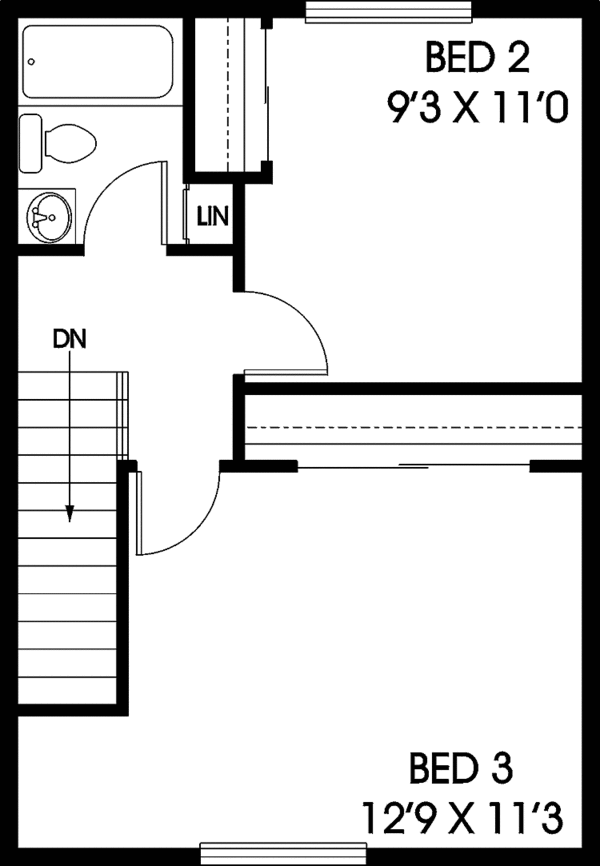

Second Floor: 430 sq/ft
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Main Floor Laundry
Open Floor Plan
Covered Front Porch
101 sq/ft width 9' 3" x depth 11'
143 sq/ft width 12' 9" x depth 11' 3"
127 sq/ft width 9' 3" x depth 13' 9"
275 sq/ft width 13' 9" x depth 20'
151 sq/ft width 13' 9" x depth 11'
177 sq/ft width 15' 9" x depth 11' 3"
What's Included In This Plan Set

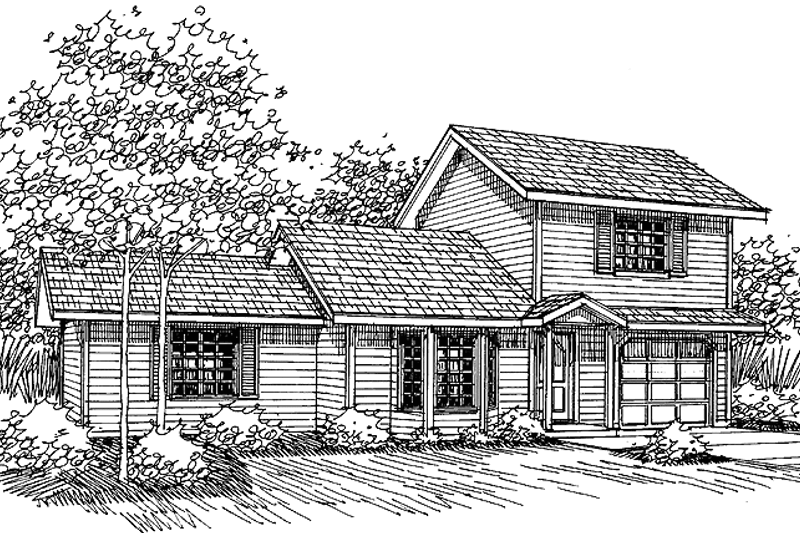

- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
