Plan Description

Edgy atomic ranch elevation conjures up the free thinking era of the 1950's when individualism reigned. Flexible library/bedroom in this Mid-Century Modern design offers choices for a home office, art studio or 3rd bedroom.

Floor Plans

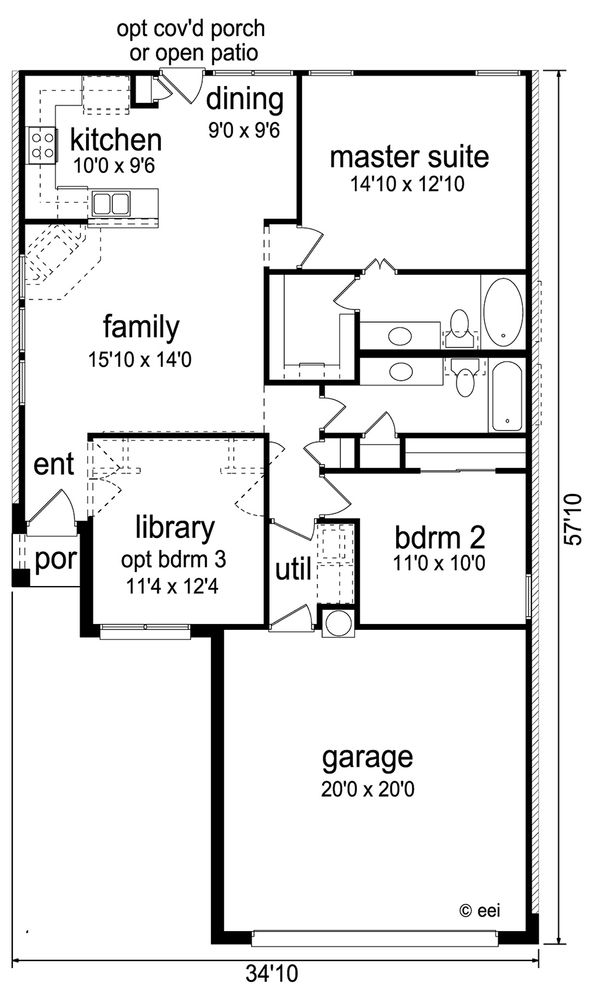

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 57' 10"

Height : 13' 8"

Width : 34' 10"

Area

First Floor: 1261 sq/ft height 10'

Garage: 454 sq/ft height 10'

Porch: 16 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 8'

Main Ceiling : 10'

Roof

Primary Pitch : 3:12

Roof Framing : stick

Roof Type : gable

Exterior Wall Framing

Exterior Wall Finish : brick, siding

Framing : 2"x4"

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Empty Nester

Code Compliance

Irc 2003

Rooms

Bedroom 2:

110 sq/ft width 11' x depth 10'

Dining Room:

85 sq/ft width 9' x depth 9' 6"

Family Room:

221 sq/ft width 15' 10" x depth 14'

Garage:

400 sq/ft width 20' x depth 20'

Kitchen:

95 sq/ft width 10' x depth 9' 6"

Library:

139 sq/ft width 11' 4" x depth 12' 4"

Master Suite:

190 sq/ft width 14' 10" x depth 12' 10"

What's Included In This Plan Set

See a sample plan set

FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
FRONT RENDERING: 1/4" Scale
FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
